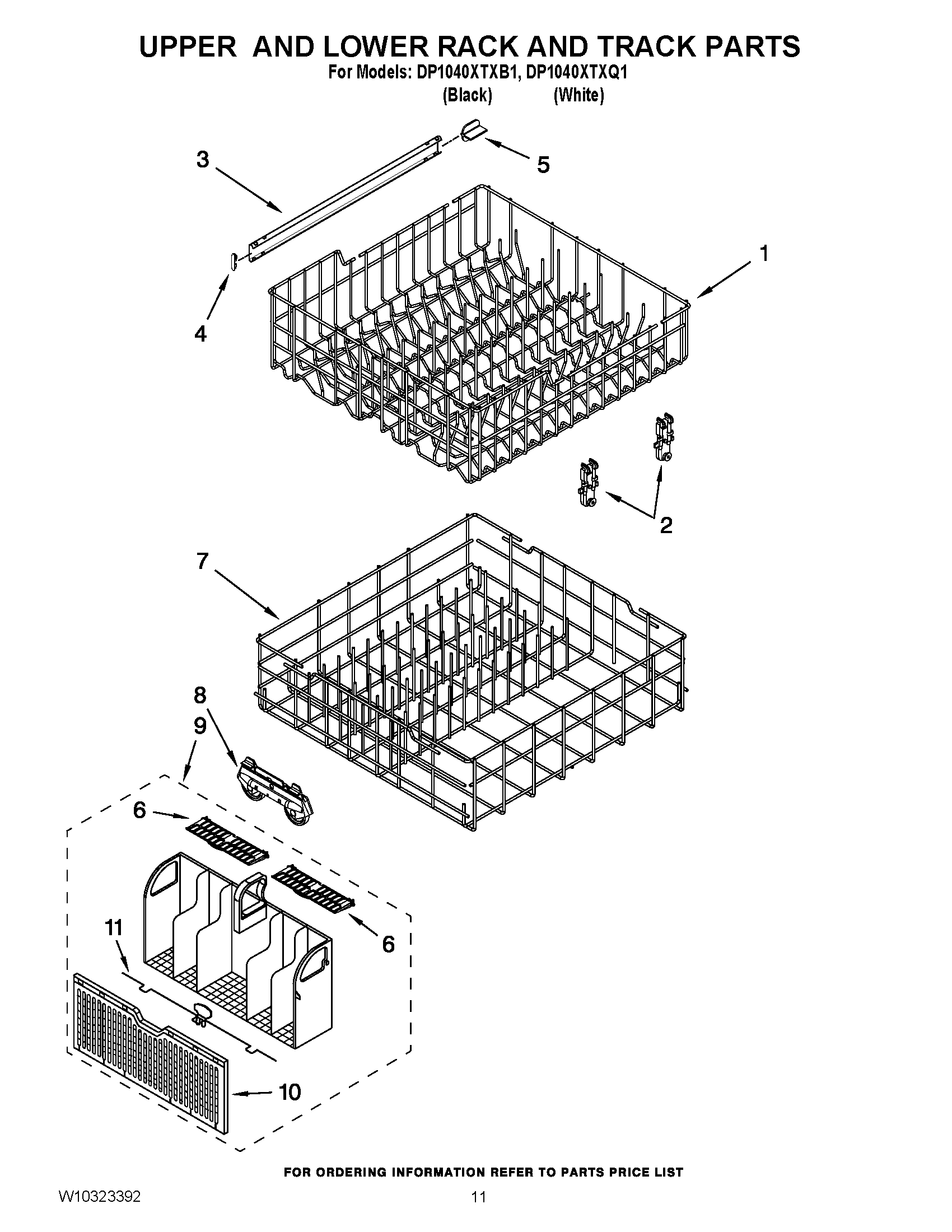

DP1040XTXB1 09 – UPPER AND LOWER RACK AND TRACK PARTS

DP1040XTXB1 09 – UPPER AND LOWER RACK AND TRACK PARTS

Written by

in

DP1040XTXB1 09 – UPPER AND LOWER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK
2W10888592 Whirlpool Dishwasher Rack Roller
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
5TRACK, SPACER
6Lid, Small Items
7W10161215 Whirlpool Dishwasher Dishrack
8WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
9W11158802 Whirlpool Dishwasher Silverware Basket
10Door, Silverware Basket
11Latch Assembly
