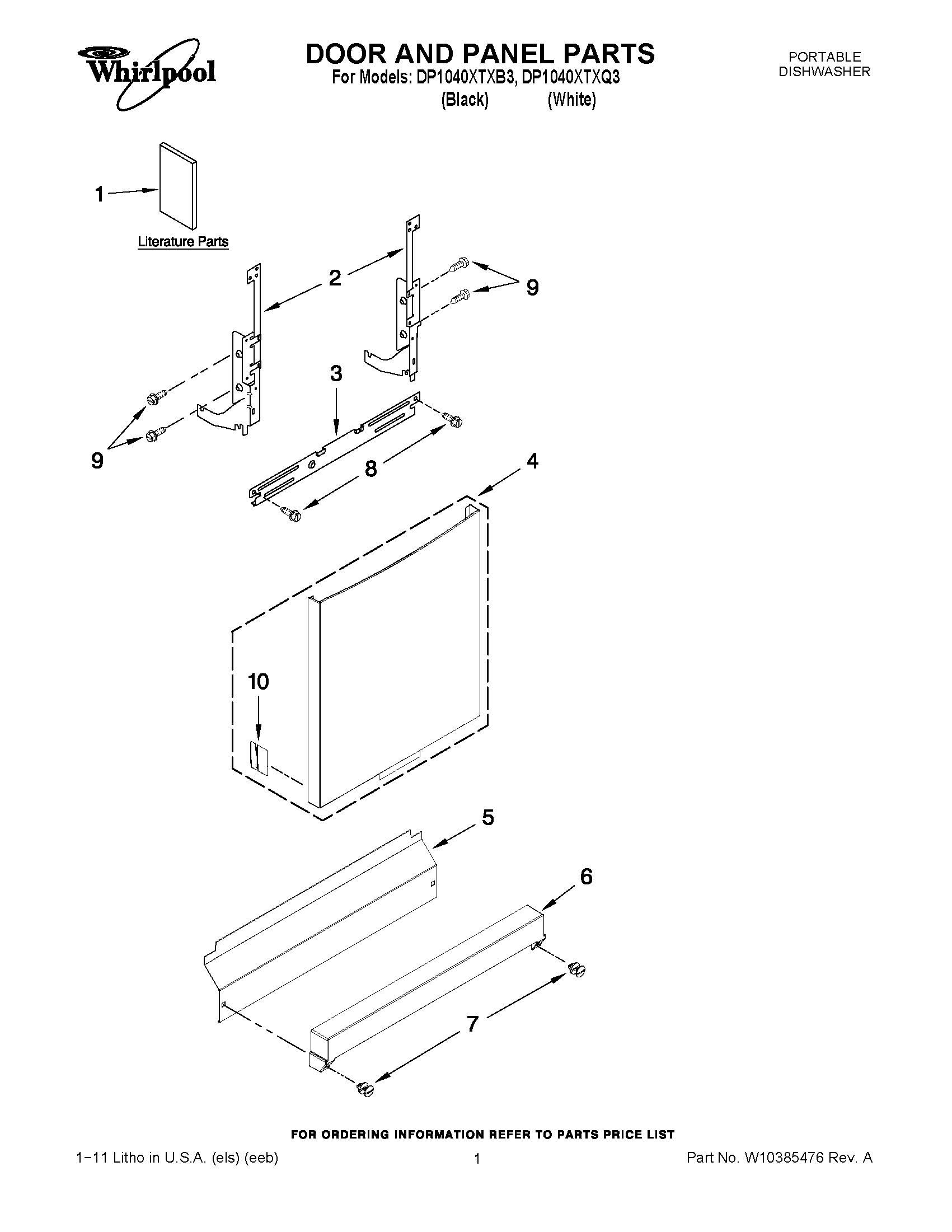

DP1040XTXB3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
1	GUIDE, USE & CARE (SPANISH)
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET (ENGLISH)
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	W10299778 Whirlpool Dishwasher Panel
4	PANEL FRONT (INCLUDES No.10) (BLACK)
5	ACCESS PANEL (NATURAL)
6	W11676533 Whirlpool Dishwasher Control Board Assembly
6	W10270155 Whirlpool Dishwasher Chopper Assembly
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WP489069 Whirlpool Compactor Screw
9	WPW10109200 Whirlpool Screw
10	W10255097 Whirlpool Dishwasher Protector
