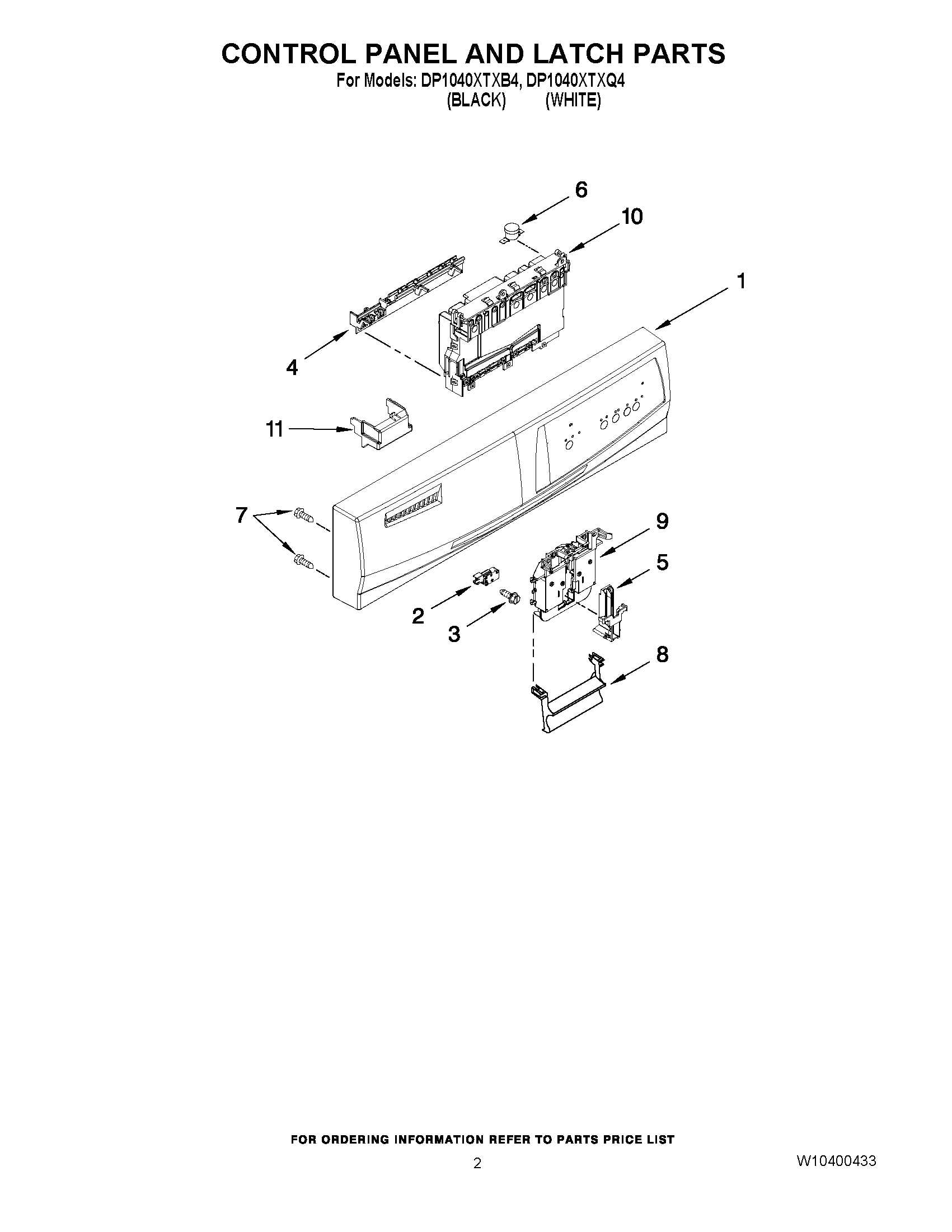

DP1040XTXB4 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASM. (BLACK)
1	CONSOLE ASM. (WHITE)
2	WPW10274880 Whirlpool Switch
3	WP3400412 Whirlpool Dishwasher Screw
4	WPW10372484 Whirlpool Dishwasher Brace
5	WP8524472 Whirlpool Dishwasher Door Latch Actuator
6	W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
7	WPW10348413 Whirlpool Dishwasher Screw
8	WP8534984 Whirlpool Dishwasher Handle
8	WP8534985 Whirlpool Dishwasher Handle
9	BOLT-LATCH
10	W10906416-includeCORE Whirlpool W10906416 Dishwasher Electronic Control Board
11	W10325295 Whirlpool Connector
