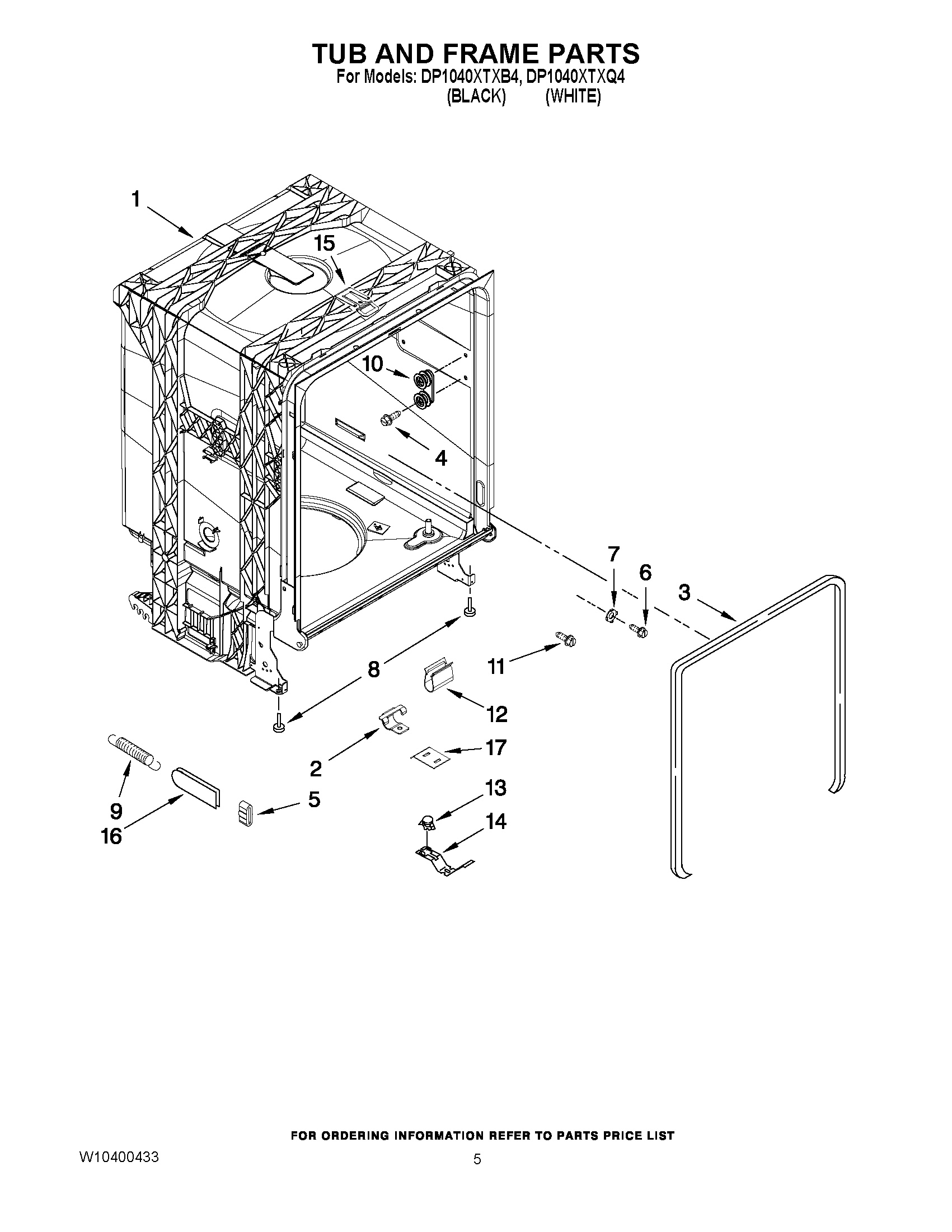

DP1040XTXB4 05 – TUB AND FRAME PARTS

DP1040XTXB4 05 – TUB AND FRAME PARTS

Written by

in

DP1040XTXB4 05 – TUB AND FRAME PARTS

Products

PositionProduct
1W10413848 Whirlpool Dishwasher Tub
2CLAMP
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4W10817436 Whirlpool Screw
5WP8268961 Whirlpool Friction Pad
6WP3400014 Whirlpool Dishwasher Screw
7WP3378128 Whirlpool Dishwasher Washer
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8270016 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12CLIP
13WP661566 Whirlpool High Limit Thermostat
14W10539489 Whirlpool Dishwasher Bracket-Stat
15WP8580309 Whirlpool Dishwasher Strike
16WP8268990 Whirlpool Dishwasher Door Spring Bushing
17W10321574 Whirlpool Dishwasher Shield
