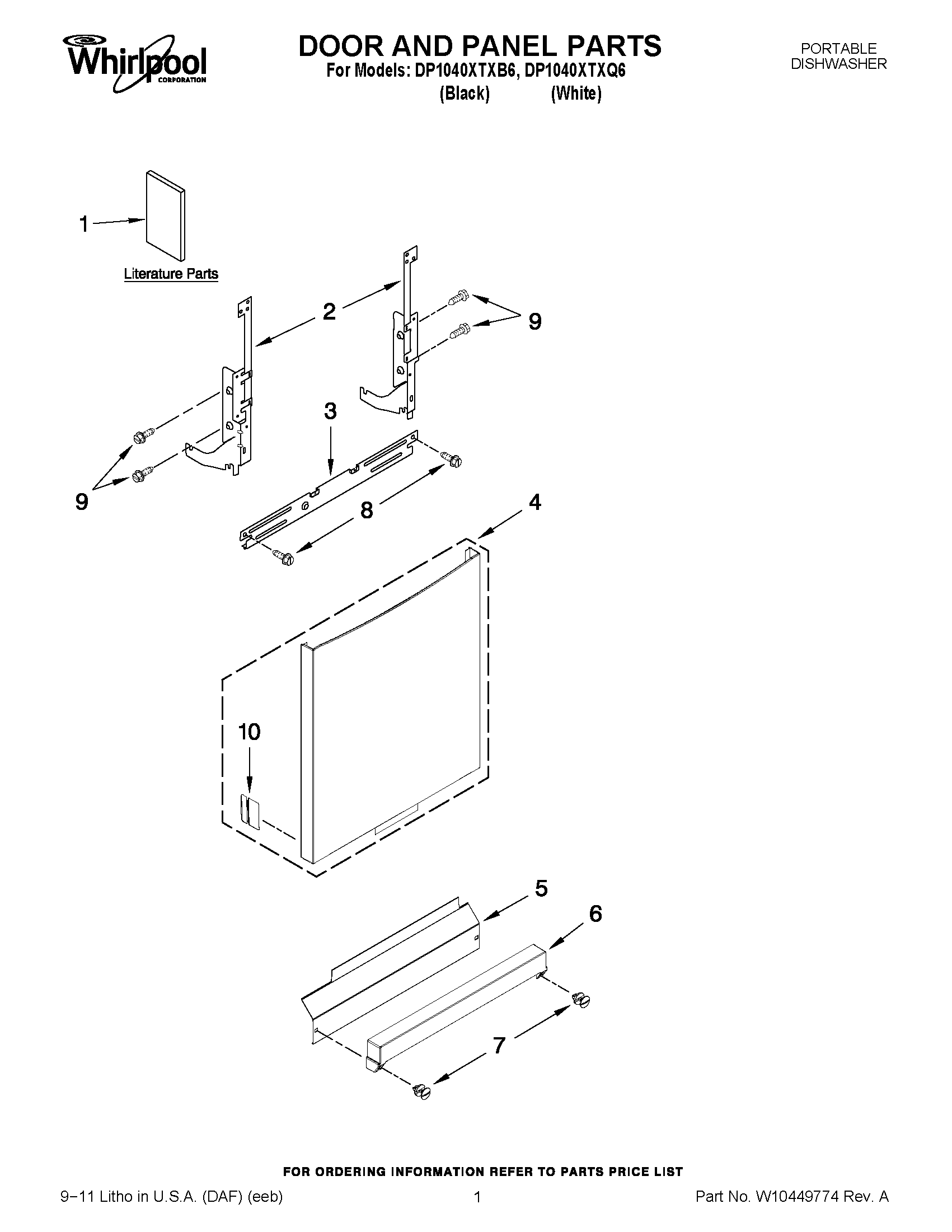

DP1040XTXB6 01 – DOOR AND PANEL PARTS

DP1040XTXB6 01 – DOOR AND PANEL PARTS

Written by

in

DP1040XTXB6 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET, (FRENCH)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10299778 Whirlpool Dishwasher Panel
4PANEL FRONT (INCLUDES No.10) (BLACK)
5W10441003 Whirlpool Dishwasher Panel
6W11676533 Whirlpool Dishwasher Control Board Assembly
6W10270155 Whirlpool Dishwasher Chopper Assembly
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WP489069 Whirlpool Compactor Screw
9WPW10109200 Whirlpool Screw
10W10255097 Whirlpool Dishwasher Protector
