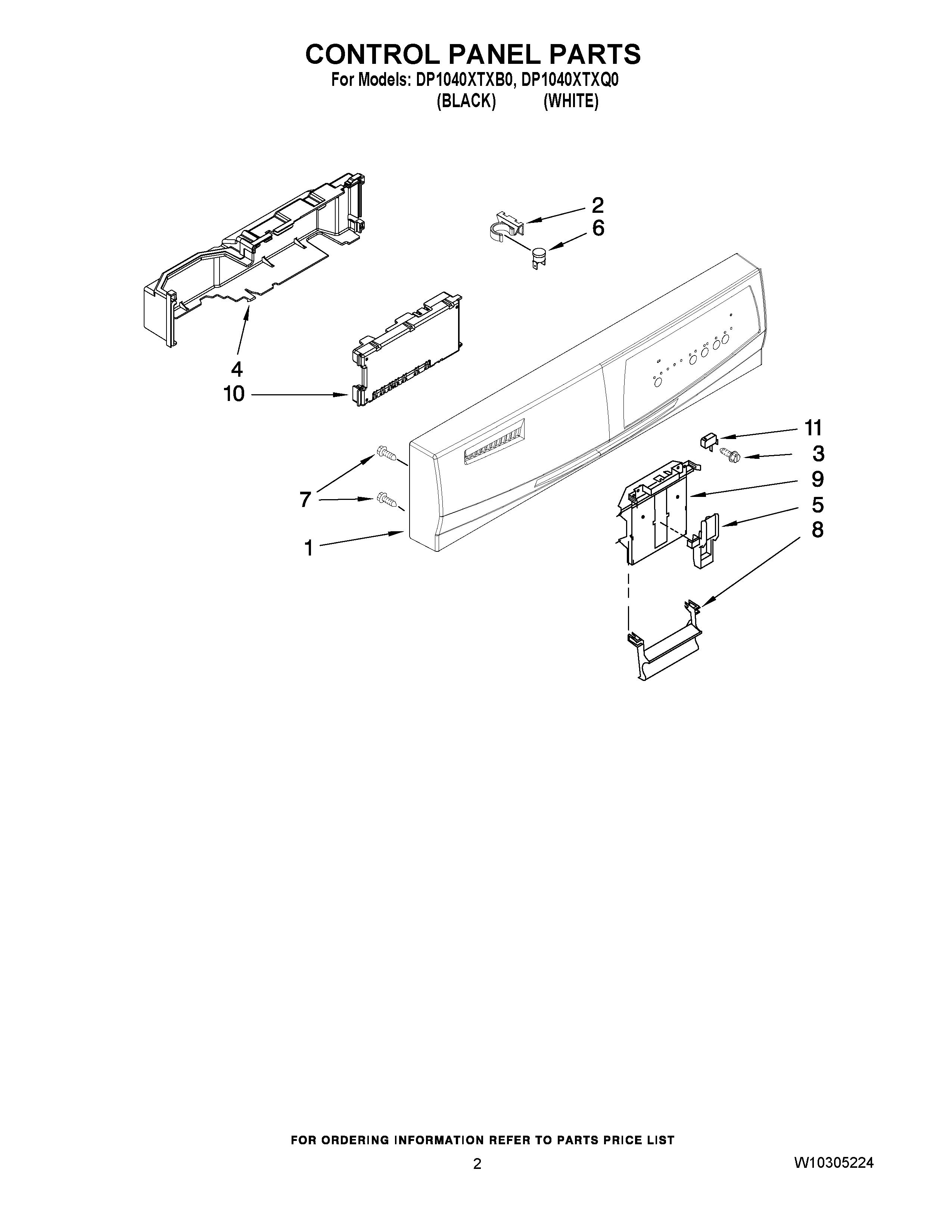

DP1040XTXQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASM. (WHITE)
1	CONSOLE ASM. (BLACK)
2	Clip, BI-Metal
3	WP3400412 Whirlpool Dishwasher Screw
4	Cover Control Shield Assembly
5	WP8524472 Whirlpool Dishwasher Door Latch Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WPW10348413 Whirlpool Dishwasher Screw
8	WP8534984 Whirlpool Dishwasher Handle
8	WP8534985 Whirlpool Dishwasher Handle
9	8193882 Whirlpool Dishwasher Primary Latch Bolt
10	W11202742 Whirlpool Dishwasher Electronic Control Board
11	WP8269209 Whirlpool Door Switch
