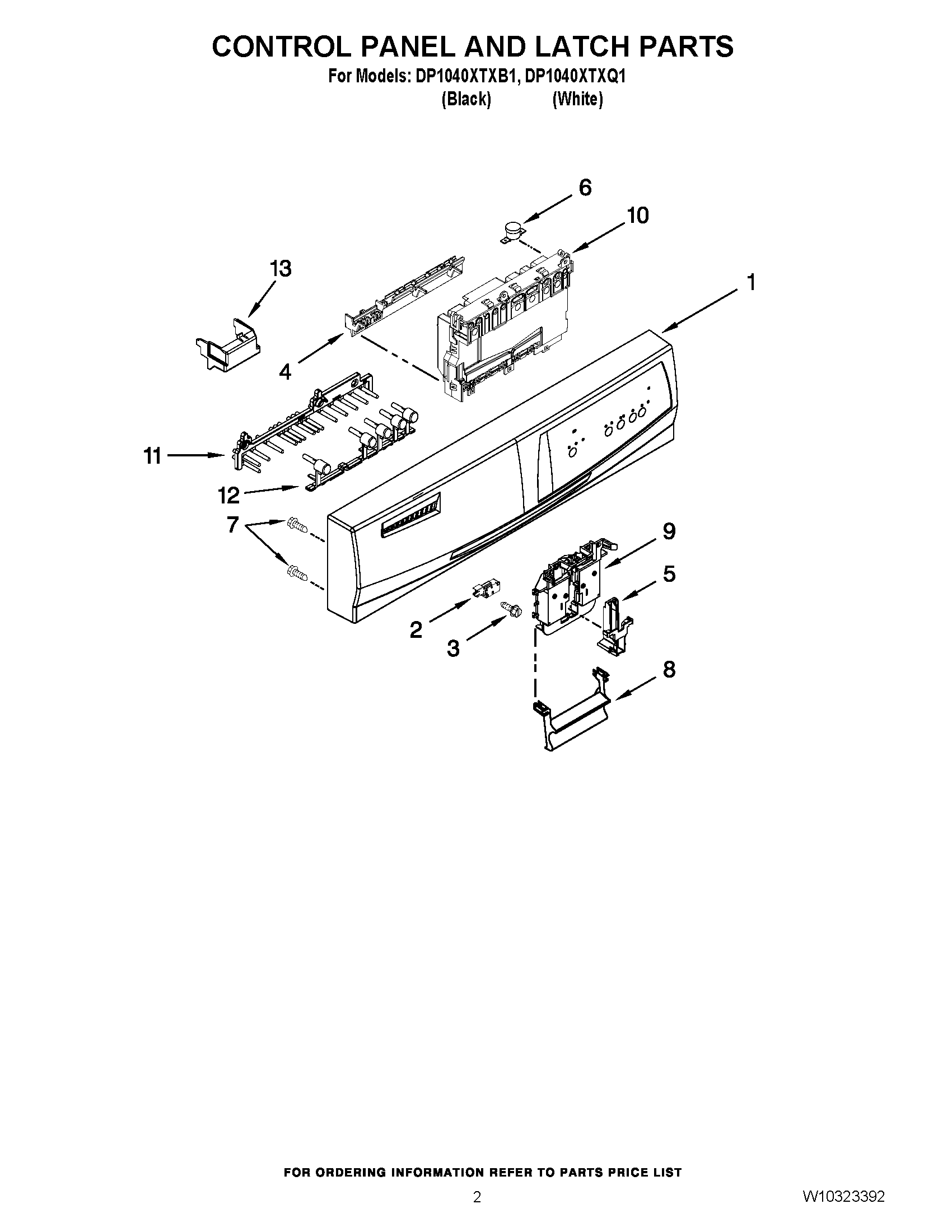

DP1040XTXQ1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (WHITE)
1CONSOLE ASM. (BLACK)
2WPW10274880 Whirlpool Switch
3WP3400412 Whirlpool Dishwasher Screw
4WPW10372484 Whirlpool Dishwasher Brace
5WP8524472 Whirlpool Dishwasher Door Latch Actuator
6W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
7WPW10348413 Whirlpool Dishwasher Screw
8WP8534984 Whirlpool Dishwasher Handle
8WP8534985 Whirlpool Dishwasher Handle
9BOLT-LATCH
10W10906416-includeCORE Whirlpool W10906416 Dishwasher Electronic Control Board
11WPW10274840 Whirlpool Dishwasher Button
12W10854407 Whirlpool Dishwasher Guide
13W10783730 Whirlpool Dishwasher Connector
