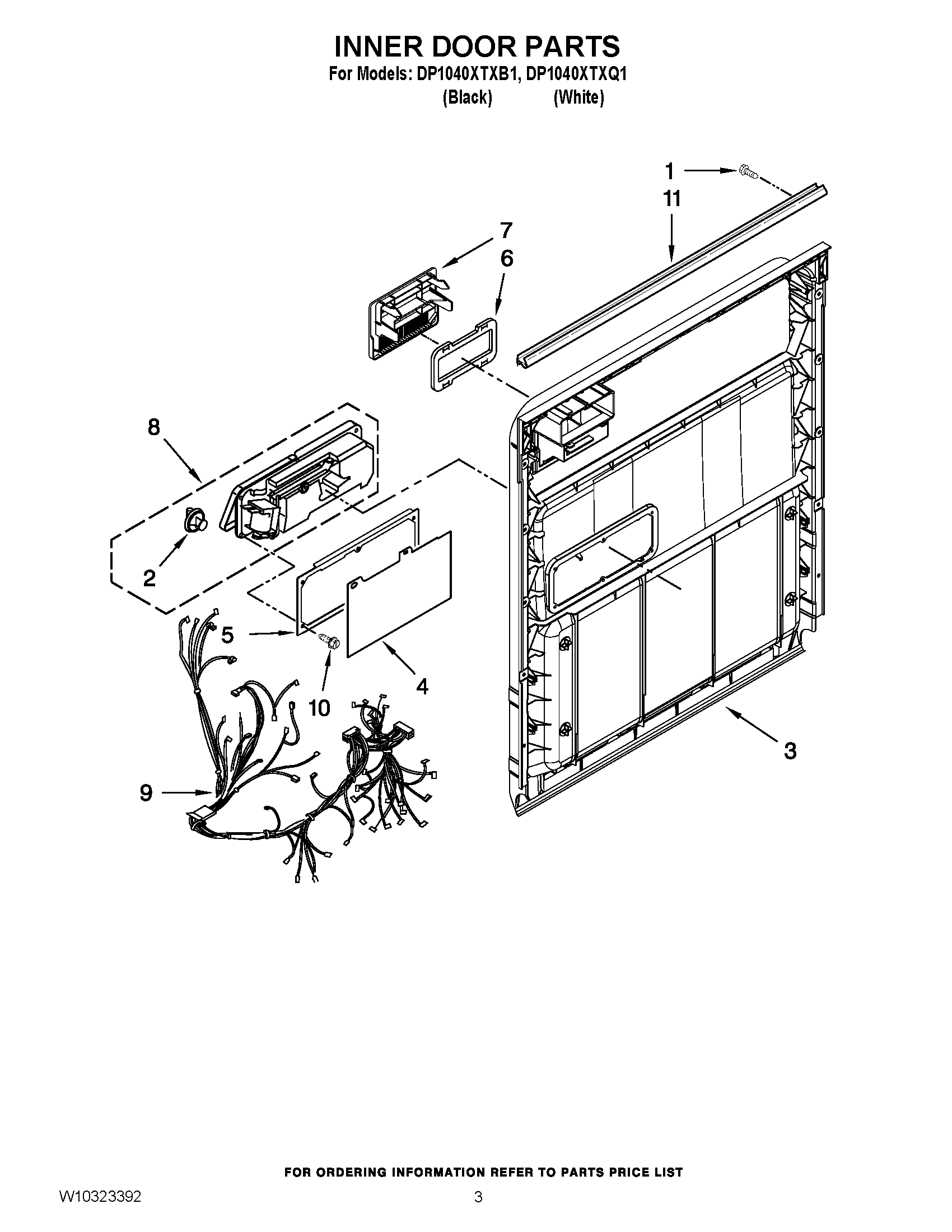

DP1040XTXQ1 03 – INNER DOOR PARTS

DP1040XTXQ1 03 – INNER DOOR PARTS

Written by

in

DP1040XTXQ1 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3WPW10254546 Whirlpool Dishwasher Inner Door
4W10385977 Whirlpool Dishwasher Cover Assembly
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6WPW10254545 Whirlpool Dishwasher Gasket
7WPW10254548 Whirlpool Dishwasher Deflector
8WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9WIRING HARNESS MAIN
10WPW10177098 Whirlpool Dishwasher Screw
11WP8269296 Whirlpool Dishwasher Seal
