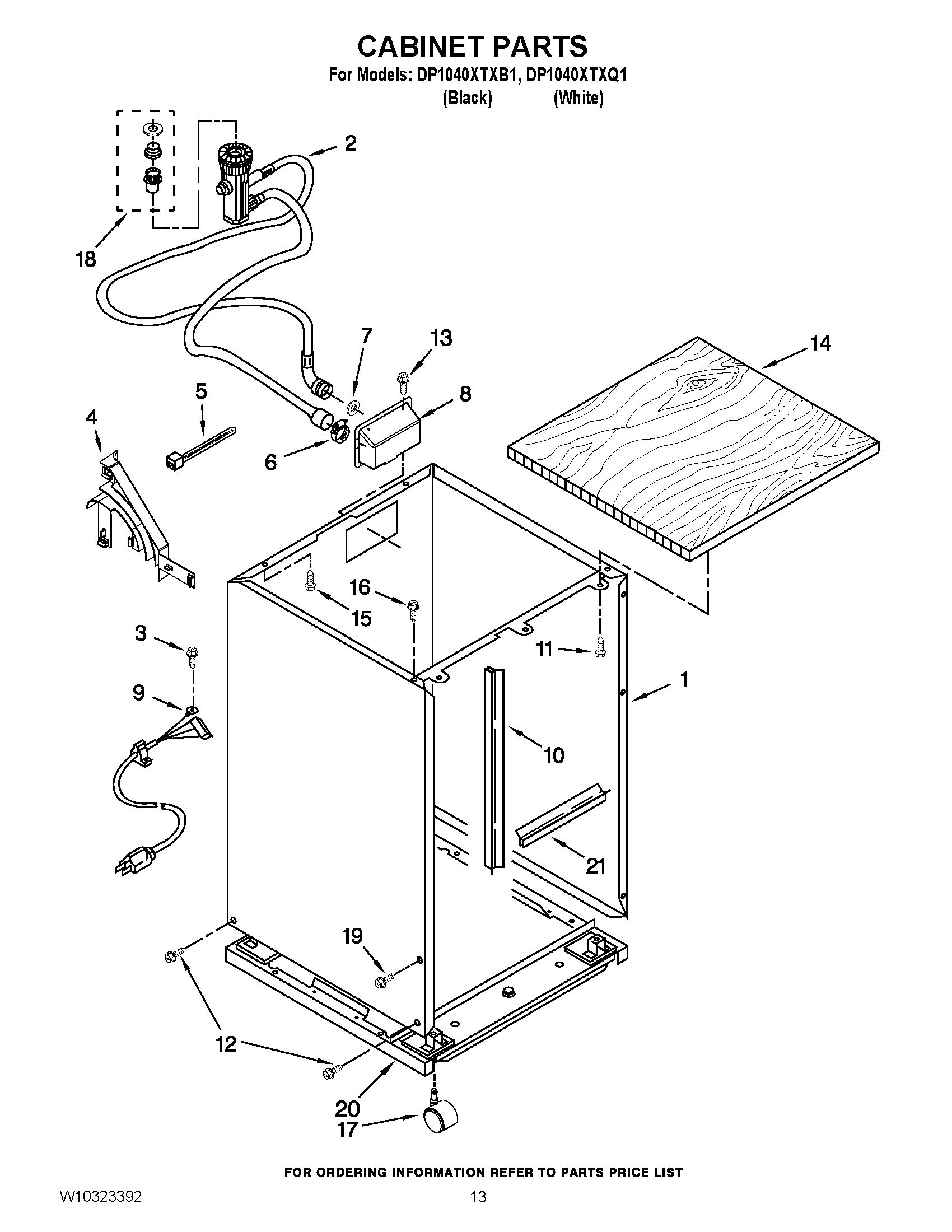

DP1040XTXQ1 11 – CABINET PARTS

Products

Position	Product
1	WPW10356271 Whirlpool Dishwasher Shell
1	SHELL ASSEMBLY (INCLUDES ITEMS 4, 10 & 21) (BLACK)
2	FIL&DRNHOS
3	WP302868 Whirlpool Screw
4	SADDLE, HOSE
5	WPW10339879 Whirlpool Wire Tie
6	WP356138 Whirlpool Hose Clamp
7	WASHER
8	W10219673 Whirlpool Dishwasher Housing
9	W10831279 Whirlpool Dishwasher Power Cord
10	W10219682 Whirlpool Dishwasher Protector
11	WP3373329 Whirlpool Dishwasher Screw
12	Screw
13	SCREW
14	WP3373199 Whirlpool Dishwasher Top Panel
15	SCREW
16	302251 Whirlpool Dishwasher Screw
17	WP8559933 Whirlpool Caster
18	WPW10254672 Whirlpool Faucet Adapter
19	WPW10213953 Whirlpool Screw
20	FRAME, ASSEMBLY
21	W10254751 Whirlpool Protector
