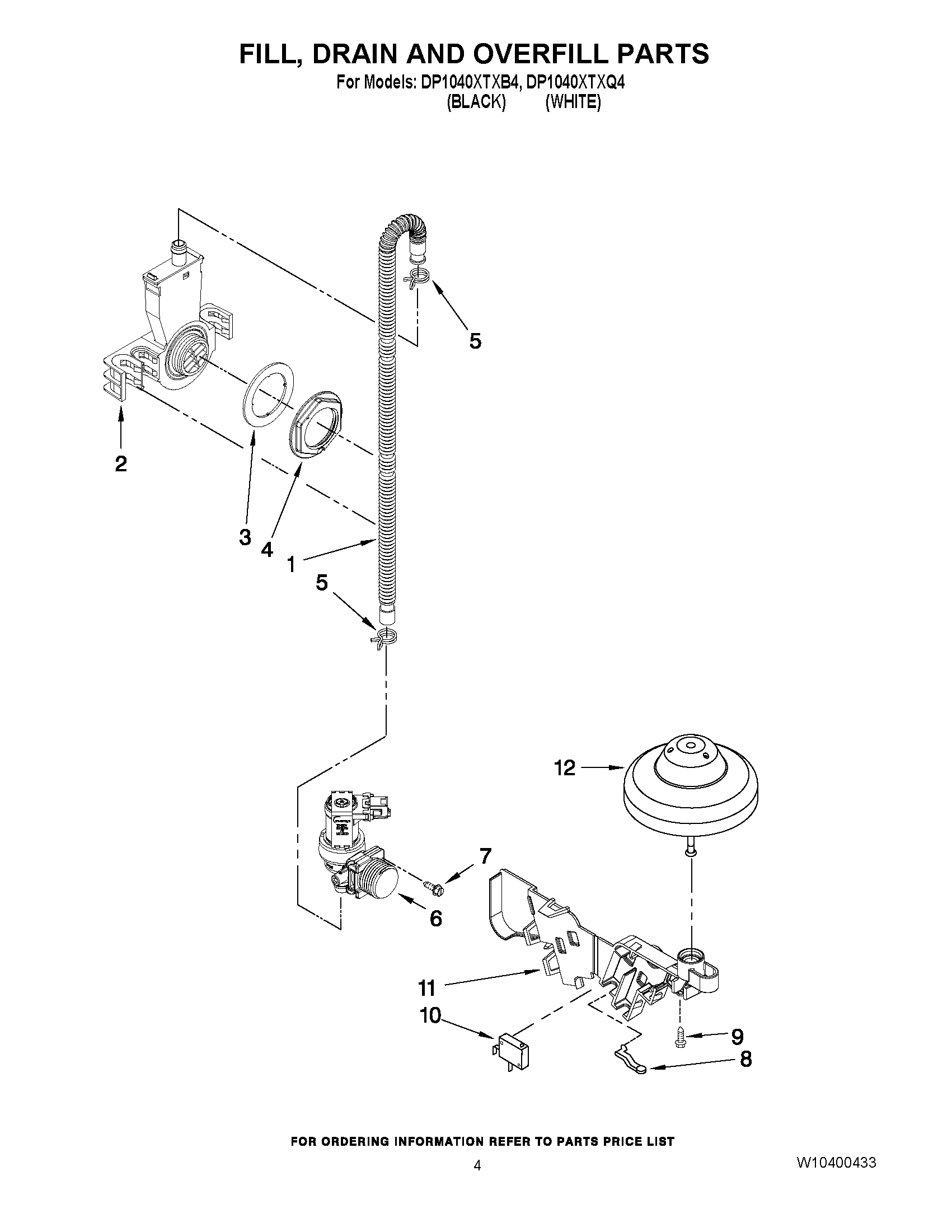

DP1040XTXQ4 04 – FILL, DRAIN AND OVERFILL PARTS

DP1040XTXQ4 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

DP1040XTXQ4 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1W10878507 Whirlpool Inlet Hose
2WPW10195536 Whirlpool Water Inlet Valve
3WP8531323 Whirlpool Gasket Seal
4WPW10508676 Whirlpool Dishwasher Tube Nut
5WP596669 Whirlpool Hose Clamp
6W10648041 Whirlpool Water Inlet Valve
7WP489069 Whirlpool Compactor Screw
8WP8268892 Whirlpool Dishwasher Lever
9WP304231 Whirlpool Dishwasher Screw
10WPW10102495 Whirlpool Dishwasher Switch
11WPW10175383 Whirlpool Dishwasher Standpipe
12WP8268913 Whirlpool Dishwasher Float Assembly
