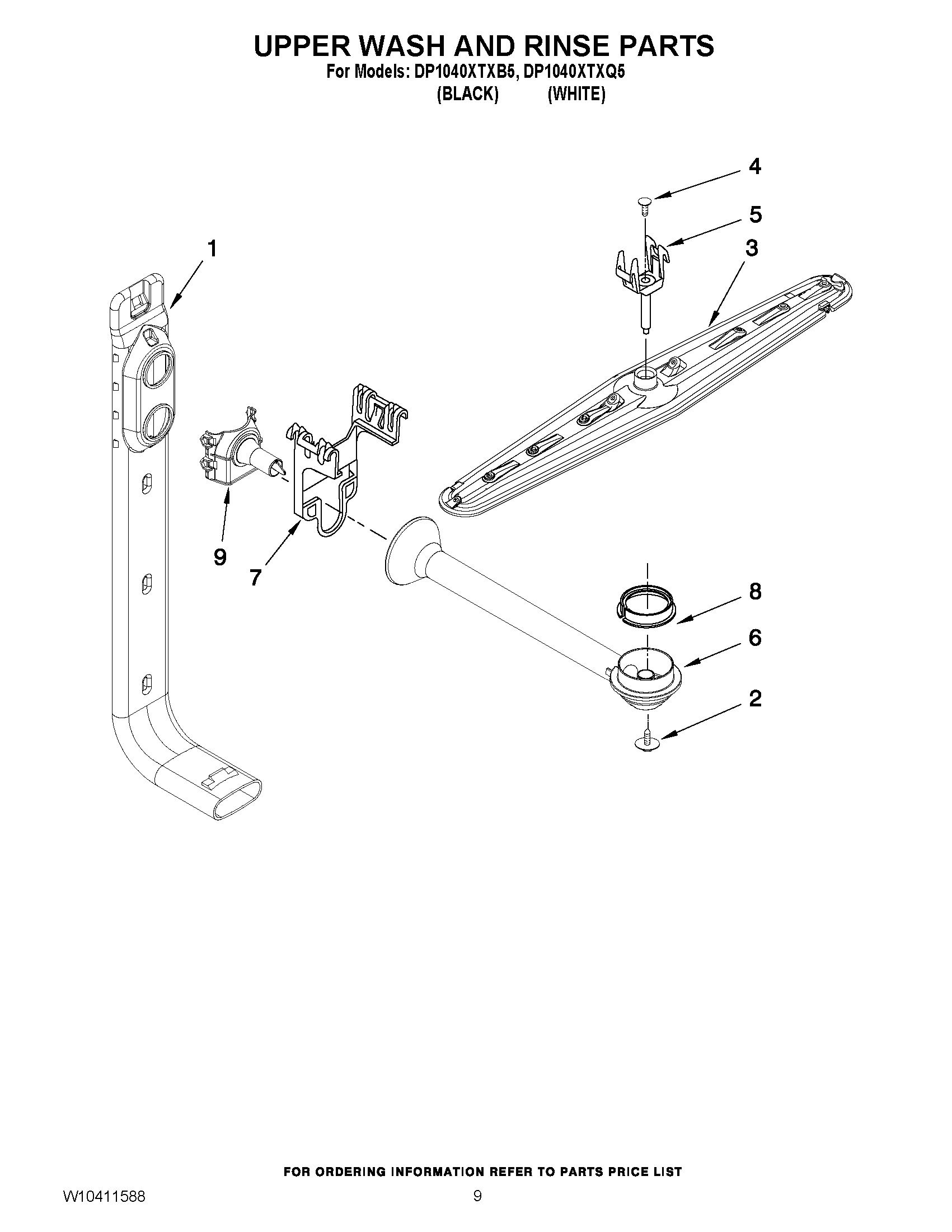

DP1040XTXQ5 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	W10254531 Whirlpool Dishwasher Feed Tube
2	WPW10349488 Whirlpool Screw
3	WP8269024 Whirlpool Dishwasher Spray Arm
4	WP3400919 Whirlpool Dishwasher Screw Cover
5	WP3385159 Whirlpool Dishwasher Mount
6	WPW10258149 Whirlpool Dishwasher Manifold
7	WP3385160 Whirlpool Dishwasher Holder
8	WP8268433 Whirlpool Seal Assembly
9	Nozzle
