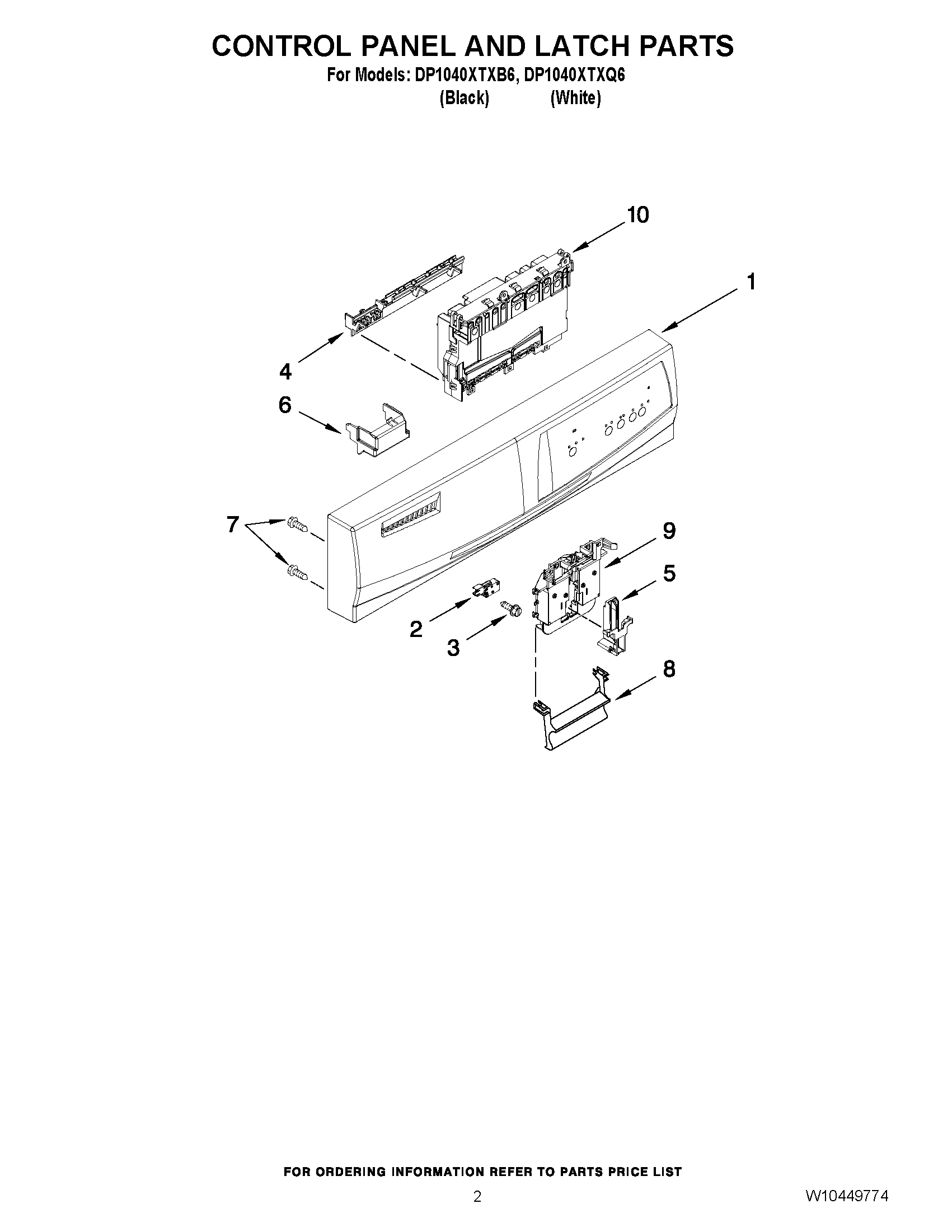

DP1040XTXQ6 02 – CONTROL PANEL AND LATCH PARTS

DP1040XTXQ6 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

DP1040XTXQ6 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (WHITE)
1CONSOLE ASM. (BLACK)
2WPW10274880 Whirlpool Switch
3WP3400412 Whirlpool Dishwasher Screw
4WPW10372484 Whirlpool Dishwasher Brace
5WP8524472 Whirlpool Dishwasher Door Latch Actuator
6W10783730 Whirlpool Dishwasher Connector
7WPW10348413 Whirlpool Dishwasher Screw
8WP8534984 Whirlpool Dishwasher Handle
8WP8534985 Whirlpool Dishwasher Handle
9BOLT-LATCH
10CONTROL, ELECTRONIC
