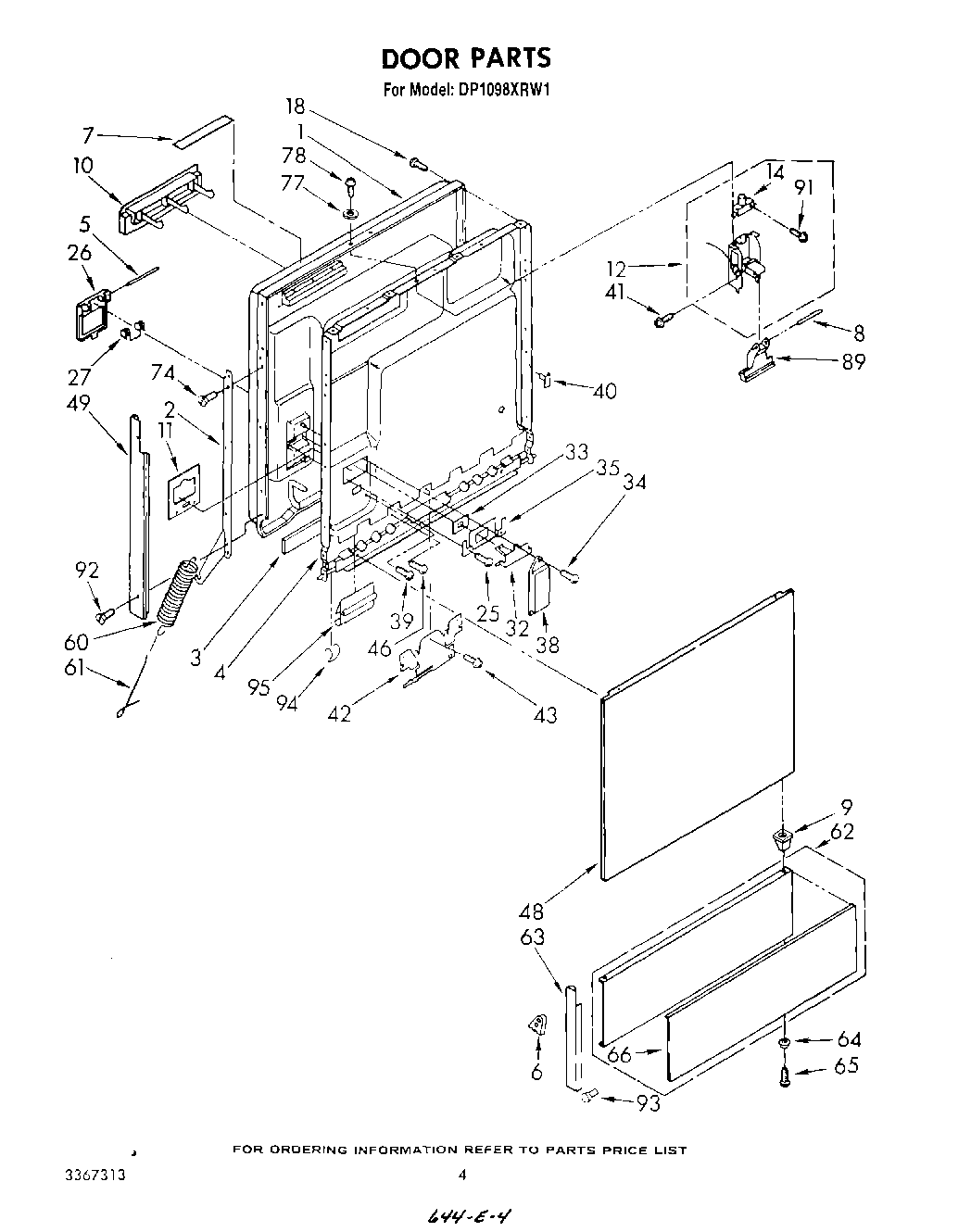

DP1098XRW1 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, Users Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
27	WP8066018 Whirlpool Spring Assembly
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	WP304231 Whirlpool Dishwasher Screw
40	Ground Clip (2)
42	Shield, Harness
48	Panel, Front
49	Trim, Door (L.H.)
49	Trim, Door (R.H.)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End R.H.
63	Cap, End L.H.
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
66	Overlay, Access Panel
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
78	WP90767 Whirlpool Screw
89	Lever, Release
91	Screw, 6-32 x 1
92	Screw, 8 x 1/2 (4)
93	SCREW 8A
94	Clip, Wire
95	Retainer, Clip
