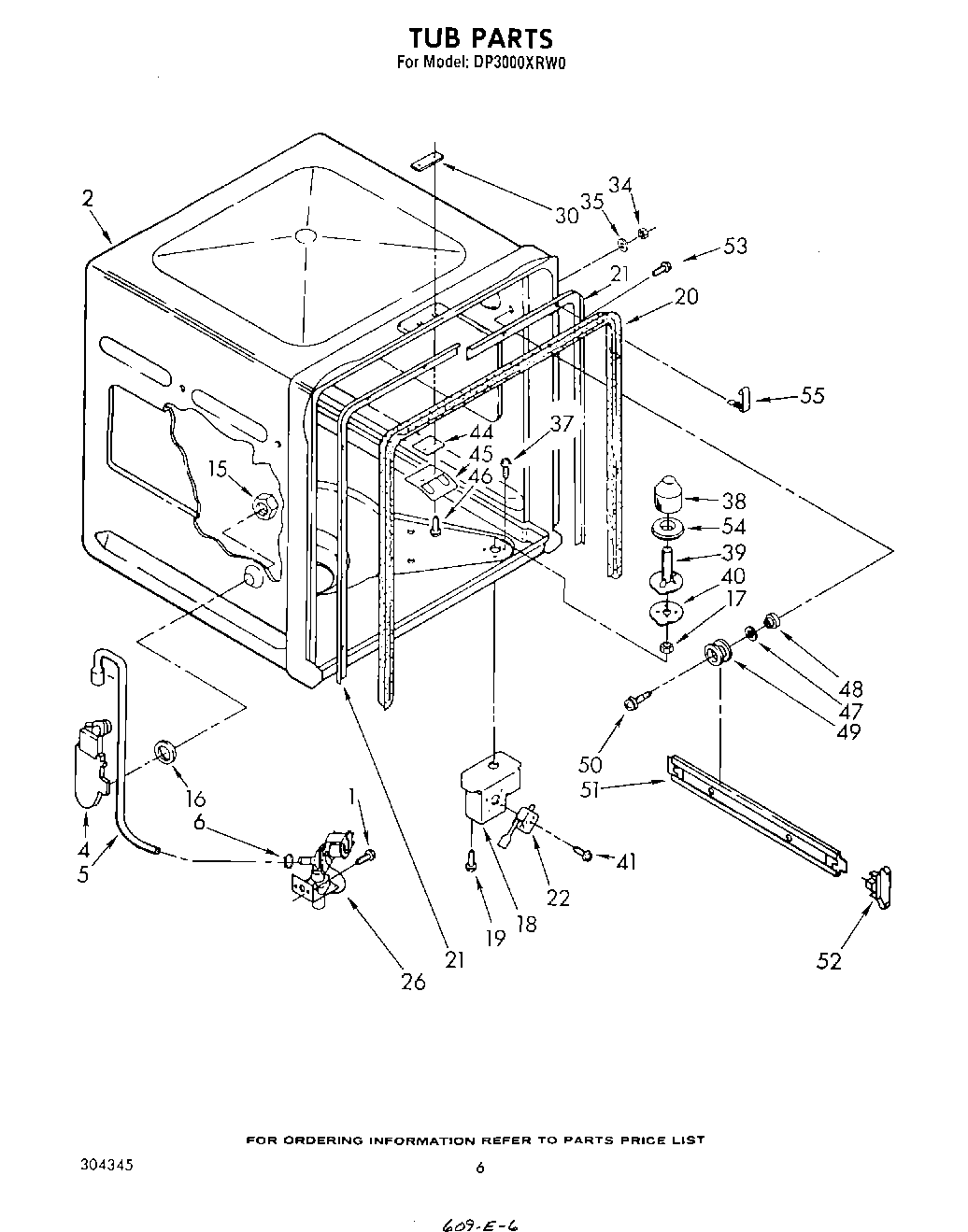

DP3000XRG0 04 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT304671
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Leveler (Thinner) (2oz.)
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	WPL LIT303312
	WPL LIT304272
	WPL LIT304345
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Almond (Uncut)
1	WP90767 Whirlpool Screw
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	Clip, Gasket (2)
