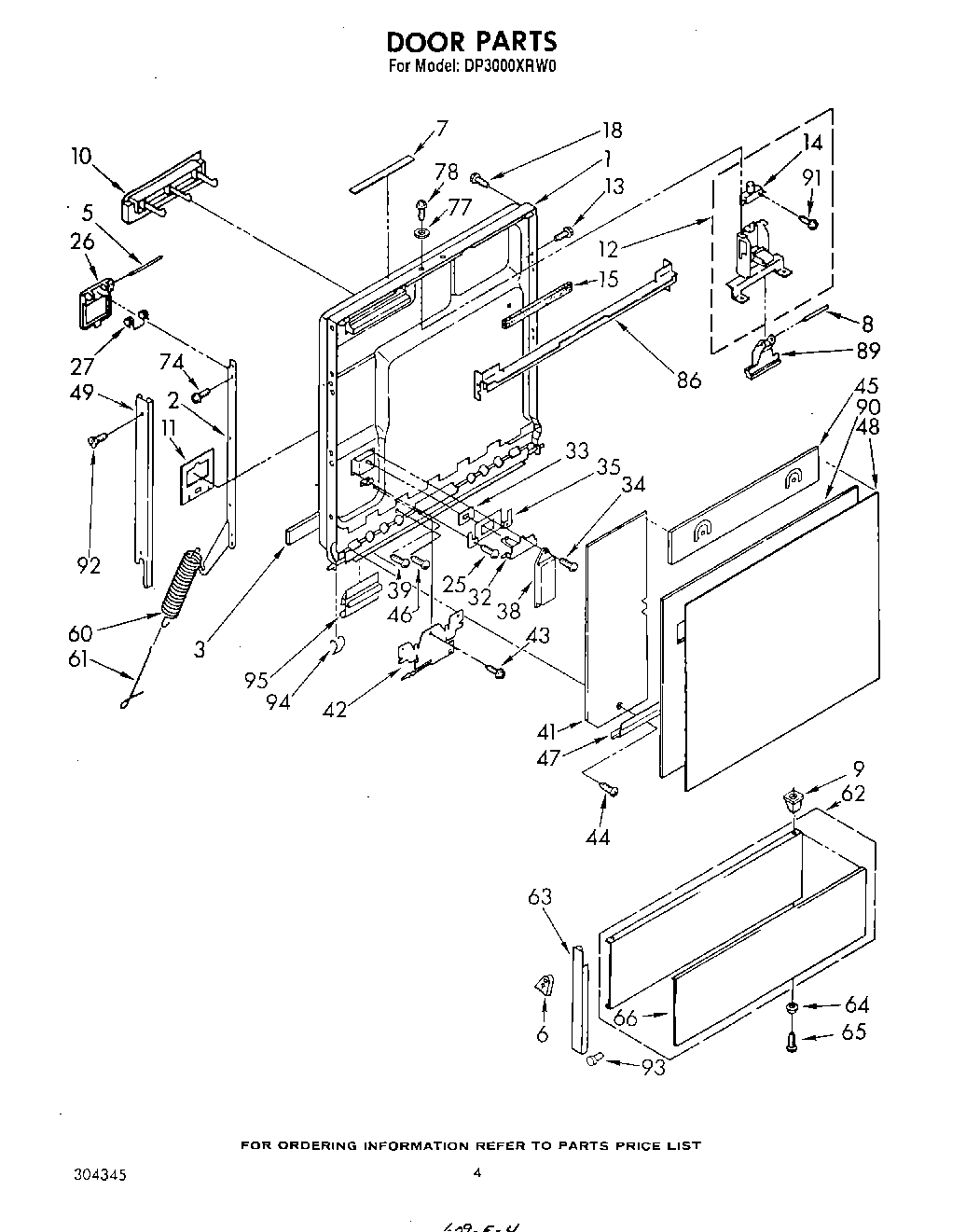

DP3000XRN0 03 – DOOR

Products

Position	Product
1	Door, Inner
2	Support Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, Users Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
13	WP489069 Whirlpool Compactor Screw
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
15	Baffle
18	Screw, 8 x 1-7/8 (2)
27	WP8066018 Whirlpool Spring Assembly
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	WP304231 Whirlpool Dishwasher Screw
41	Barrier, Door
42	Shield, Harness
44	W11693756 Whirlpool Screw Assembly
45	Barrier, Console
47	Edging, Panel
48	Panel, Front
49	Trim, Door (L.H.)
49	Trim, Door (R.H.)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End (L.H.)
63	Cap, End (R.H.)
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
66	Overlay, Access Panel
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
78	WP90767 Whirlpool Screw
86	Rail, Support
89	Lever, Release
90	Spacer, Panel
91	Screw, 6-32 x 1
92	302251 Whirlpool Dishwasher Screw
93	SCREW 8A
94	Clip, Wire
95	Retainer, Clip
