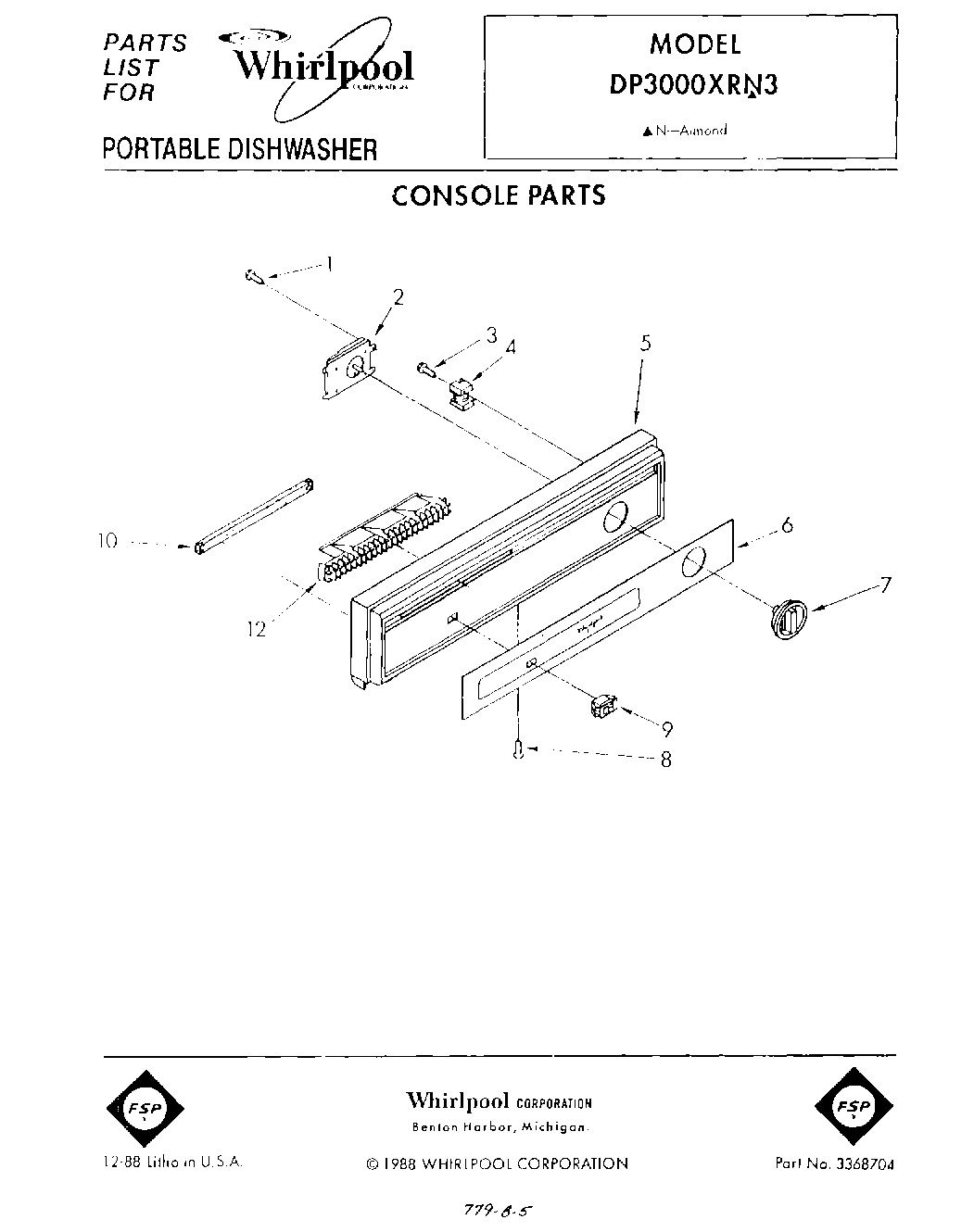

DP3000XRN3 01 – CONSOLE

Written by

Products

Position	Product
1	WP304231 Whirlpool Dishwasher Screw
2	Timer
3	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
4	Relay, Start
5	Console
6	Insert, Decorative
7	Knob, Timer
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP4314961 Whirlpool Lite Switch
10	Foam, Seal
12	Grill, Vent
