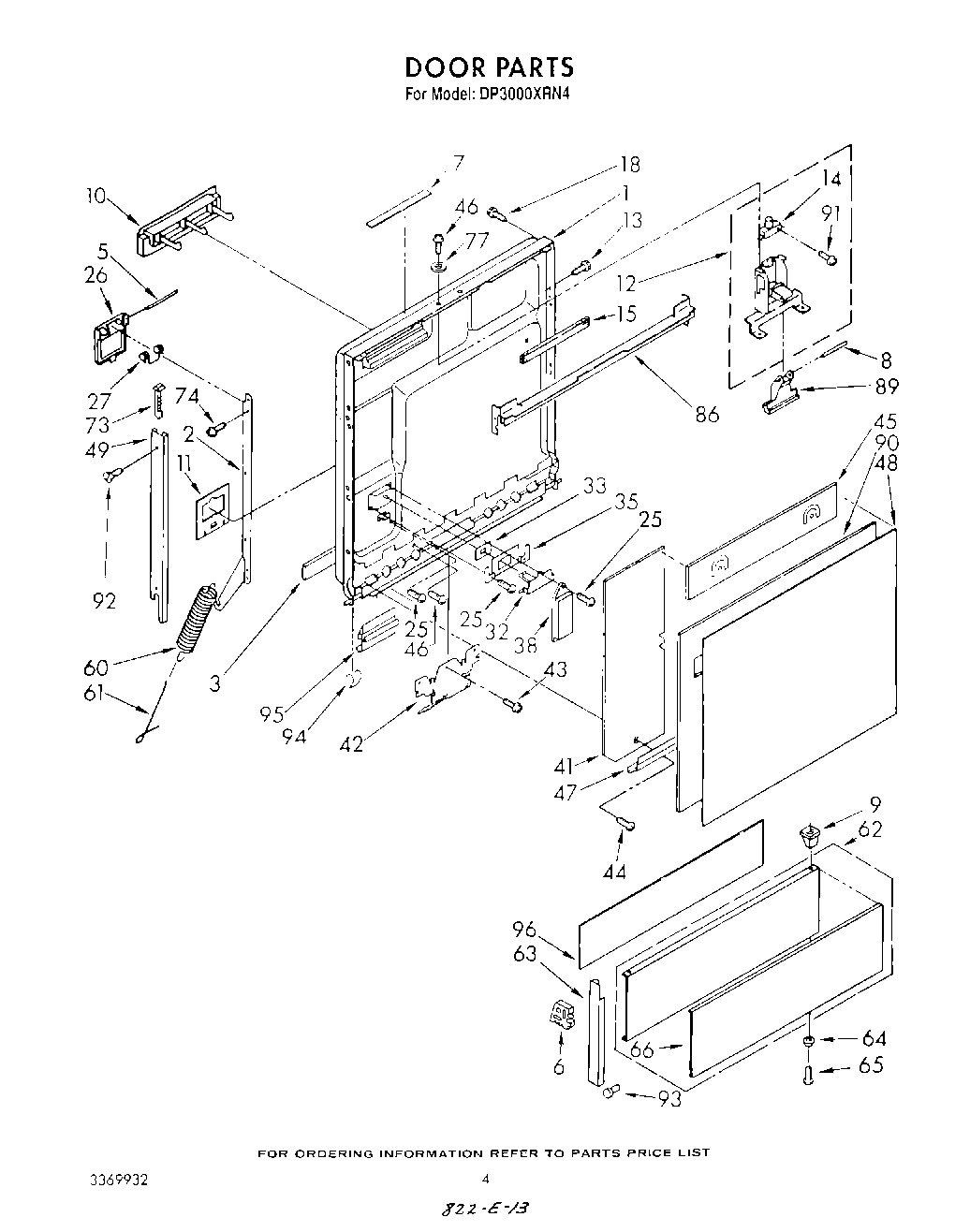

DP3000XRN4 03 – DOOR

Products

Position	Product
1	Door, Inner
2	Support, Door (R.H.)
2	Support, Door (L.H.)
3	Gasket, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, Users Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
13	WP489069 Whirlpool Compactor Screw
14	Switch, Interlock
15	Baffle
18	Screw, 8 x 1-7/8 (2)
25	WP304231 Whirlpool Dishwasher Screw
27	WP8066018 Whirlpool Spring Assembly
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
41	Barrier, Door
42	Shield, Harness
43	screw, 8-18 x 5/8 (2)
44	W11693756 Whirlpool Screw Assembly
45	Barrier, Console
46	WP90767 Whirlpool Screw
47	Edging, Panel
48	Panel, Front
49	Trim, Door (R.H.)
49	Trim, Door (L.H.)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End R.H.
63	Cap, End L.H.
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
66	Overlay, Access Panel
73	Clip, Trim Guard (2)
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
86	Rail, Support
89	WPL 304408
90	Spacer, Panel
91	Screw, 6-32 x 1
92	Screw, 8 x 1/2 (4)
93	SCREW 8A
94	Clip, Wire
95	WPL 3367720
96	Pad, Sound
