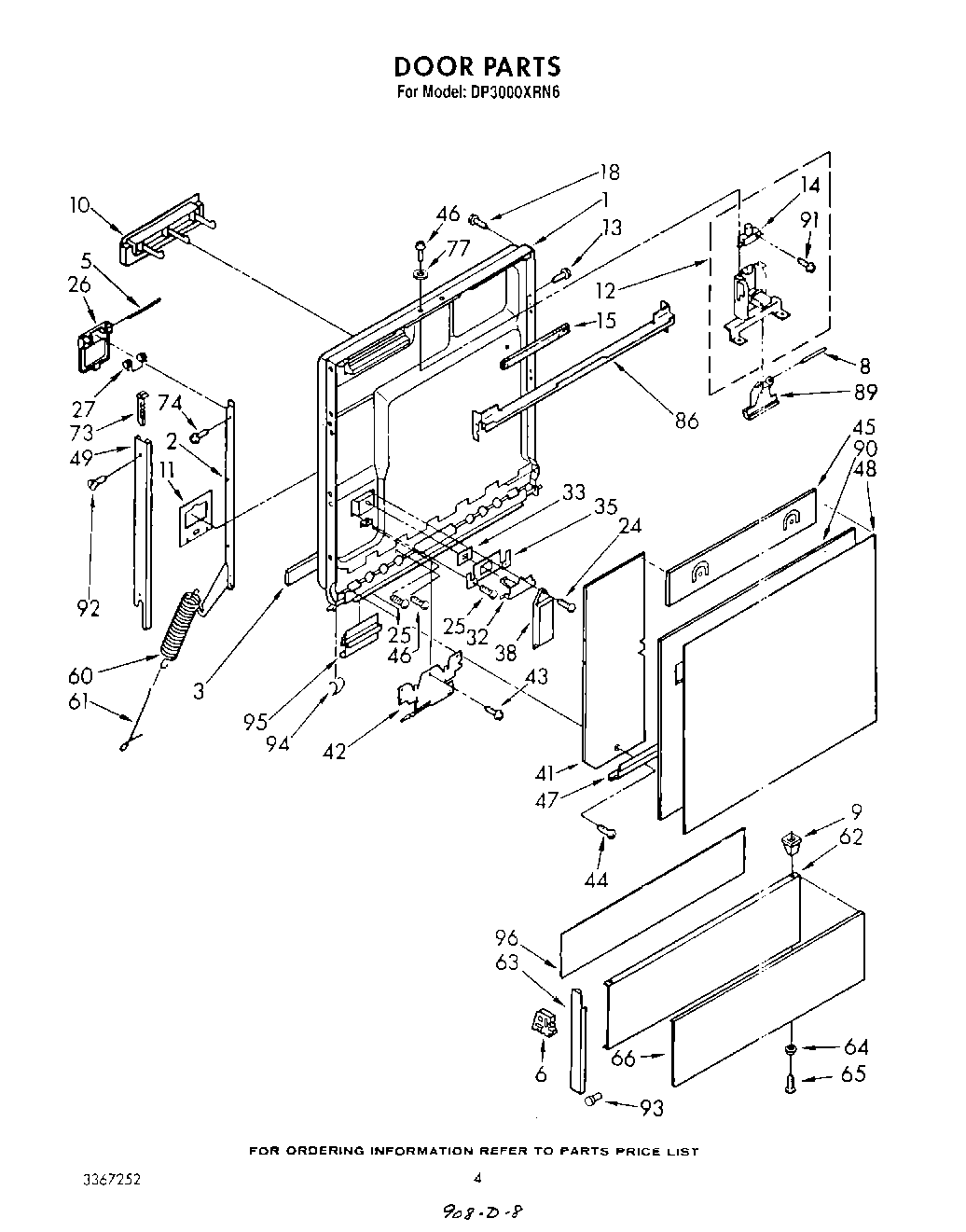

| 1 | Door, Inner |
| 2 | Support, Door (R.H.) |
| 2 | Support, Door (L.H.) |
| 3 | Gasket, Door |
| 5 | 4387043 Whirlpool Door Latch Kit |
| 6 | Retainer (2) |
| 8 | Pin, Pivot |
| 9 | Grommet |
| 10 | Screen, Vent |
| 11 | Barrier |
| 12 | Latch Assembly |
| 13 | WP489069 Whirlpool Compactor Screw |
| 14 | Switch, Interlock |
| 15 | Baffle |
| 18 | Screw, 8 x 1-7/8 (2) |
| 24 | Screw, 8 x 1/2 (3) |
| 25 | WP304231 Whirlpool Dishwasher Screw |
| 27 | WP8066018 Whirlpool Spring Assembly |
| 32 | Lever, Catch |
| 33 | Seal, Lever |
| 35 | Retainer |
| 38 | Actuator |
| 41 | Barrier, Door |
| 42 | Shield, Harness |
| 43 | screw, 8-18 x 5/8 (2) |
| 44 | W11693756 Whirlpool Screw Assembly |
| 45 | Barrier, Console |
| 46 | WP489128 Whirlpool Refrigerator Screw |
| 47 | Edging, Panel |
| 48 | Panel, Front |
| 48 | Panel, Front |
| 49 | Trim, Door (R.H.) |
| 49 | Trim, Door (L.H.) |
| 60 | 675611 Whirlpool Spring Assembly |
| 61 | WP716401 Whirlpool Dishwasher Retainer |
| 62 | Panel, Access (Black) |
| 63 | Cap, End R.H. |
| 63 | Cap, End L.H. |
| 64 | Foot (2) |
| 65 | Screw, 8-18 x 5/8 (10) |
| 66 | Overlay, Access Panel |
| 73 | Clip, Trim Guard (2) |
| 74 | WP488627 Whirlpool Refrigerator Screw |
| 77 | Washer (2) |
| 86 | Rail, Support |
| 89 | WPL 304408 |
| 90 | Spacer, Panel |
| 91 | Screw, 6-32 x 1 |
| 92 | Screw, 8 x 1/2 (4) |
| 93 | SCREW 8A |
| 94 | Clip, Wire |
| 95 | WPL 3367720 |
| 96 | Pad, Sound |
