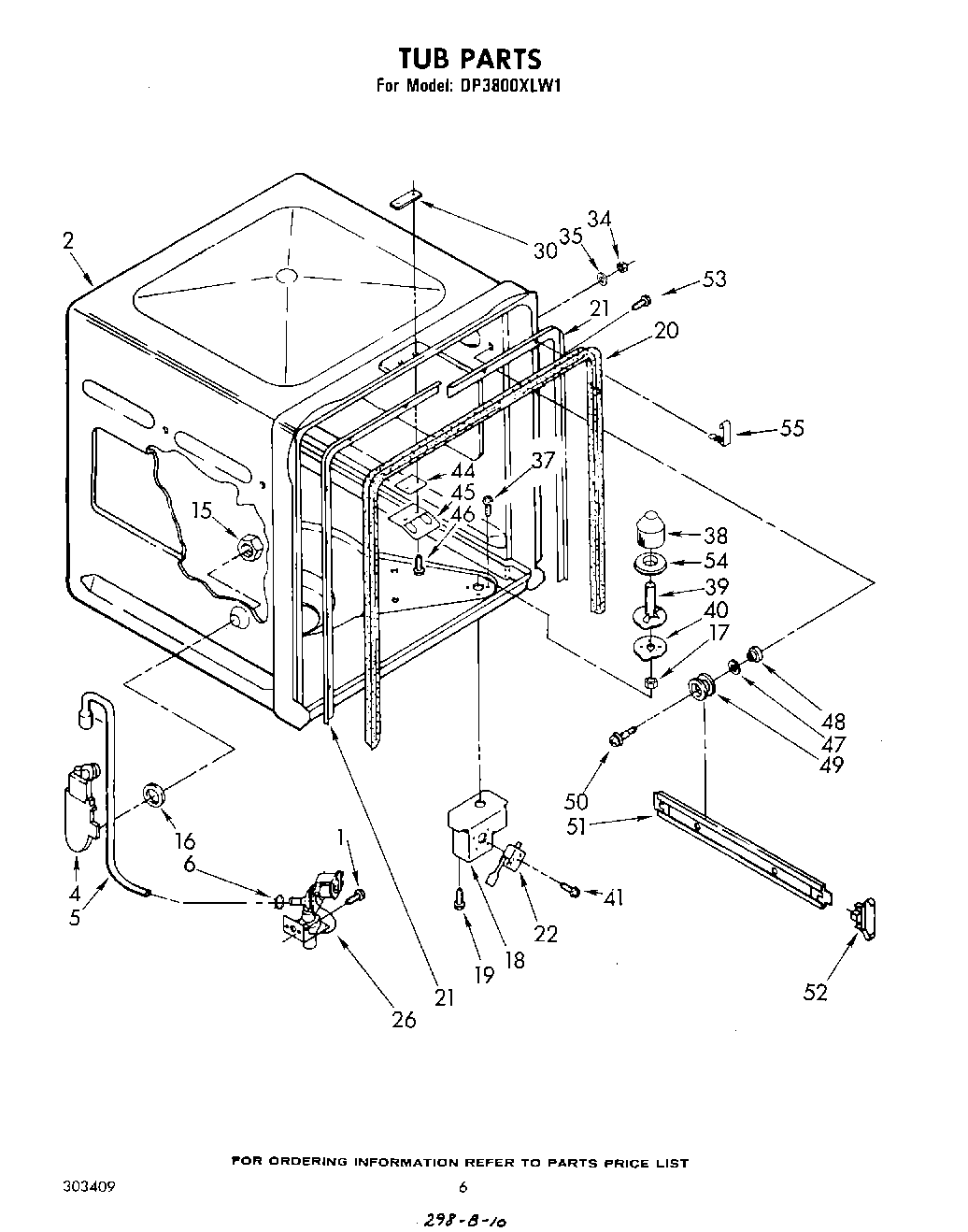

DP3800XLW1 04 – TUB, LITERATURE AND OPTIONAL

Products

Position	Product
	Enamel, New Avocado (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	WP90767 Whirlpool Screw
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	72017 Whirlpool Appliance Touch-Up Paint White
55	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55	Clip, Gasket (2)
55	350956 Whirlpool Spray Assembly
55	350930 Whirlpool White Spray Paint
55	Instructions, Installation
55	WPL 303368
55	WPL 303540
55	WP72107 Whirlpool Touchup
55	Golden Harvest
55	350942 Whirlpool Spray Paint
55	Kit, Epoxy Patch (White)
55	WPL 799351
55	Leveler (Thinner) (2oz.)
55	Paint, Spray 13 Oz. (Avocado)
55	paint, spray 13 oz. (coffee)
55	Paint, Touch-Up 1/2 Oz. (Coffee)
55	72109 Whirlpool Dacor Avocado Touch-Up Paint
55	285006 Whirlpool Spray
55	List, Repair Parts
