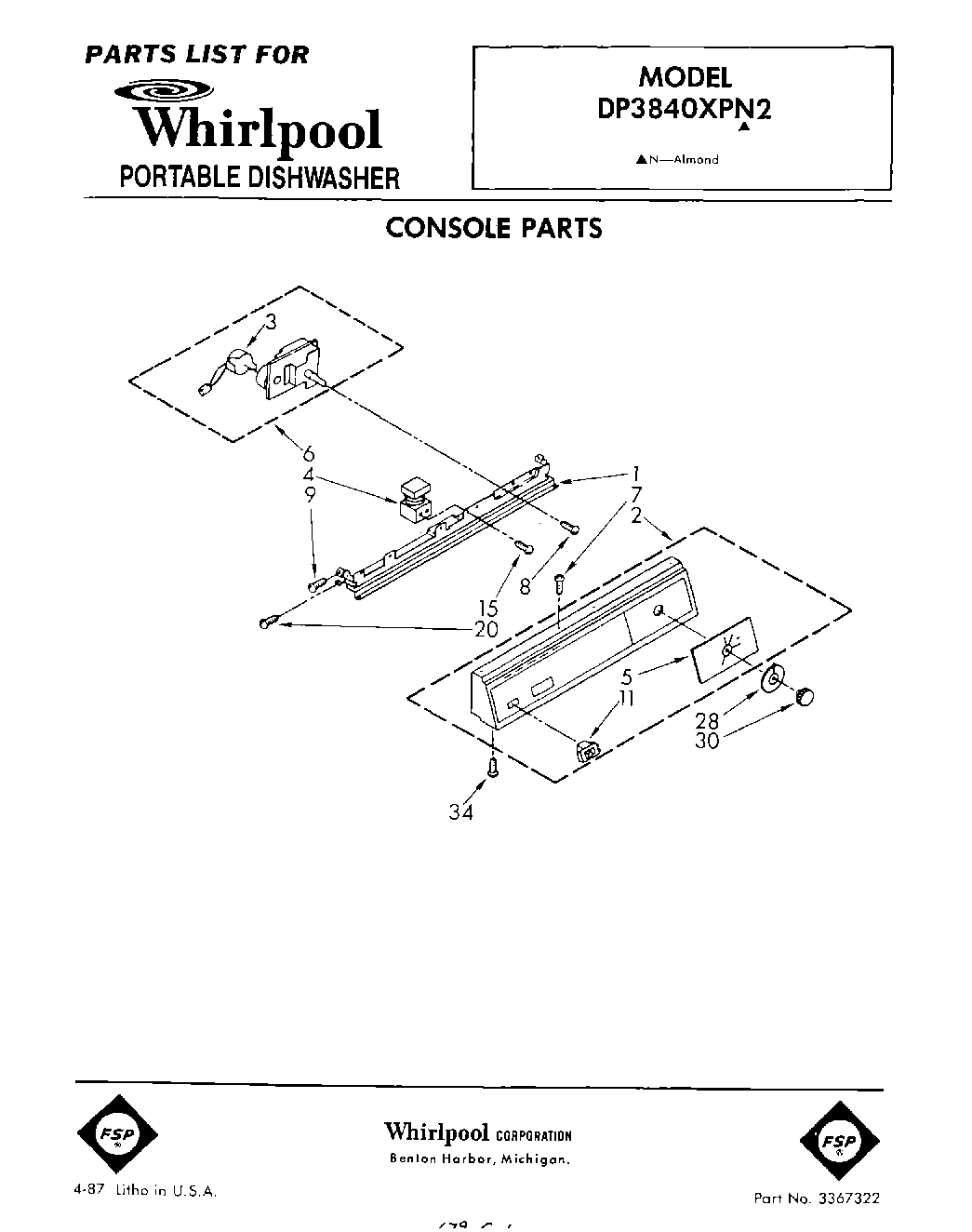

DP3840XPN2 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Panel, Escutcheon
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5Insert, Console
6Timer
7Screw (4)
8Screw (2)
9WP302868 Whirlpool Screw
11WP4314961 Whirlpool Lite Switch
15WP489128 Whirlpool Refrigerator Screw
20Screw, 8-18 x 5/8
28Dial, Indicator
30Knob
34WP487353 Whirlpool Refrigerator Screw
