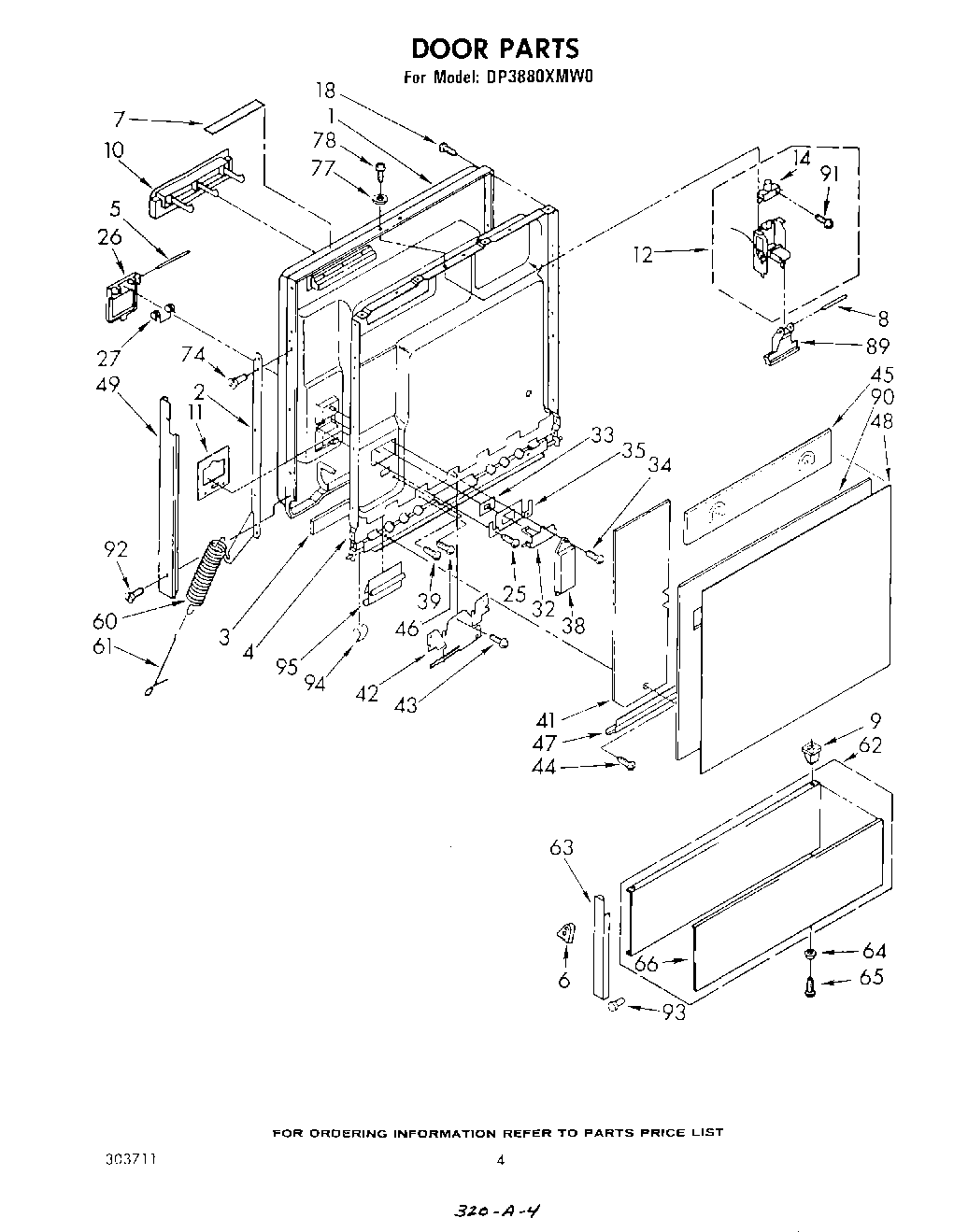

DP3880XMW0 03 – DOOR
Written by
in
DP3880XMW0 03 – DOOR
Products
Position
Product
1
Door, Inner (Includes Illus. 4)
2
Support Door (L.H.)
2
Support, Door (R.H.)
3
Gasket, Door
4
Liner, Door
5
4387043 Whirlpool Door Latch Kit
6
Retainer (2)
7
Label, User Guide
8
Pin, Pivot
9
Grommet
10
Screen, Vent
11
Barrier
12
Latch Assembly
14
Switch, Interlock (Alternate)
14
Switch, Interlock (Alternate)
14
Switch, Interlock (Alternate)
18
WP488729 Whirlpool Refrigerator Door Screw
27
WP8066018 Whirlpool Spring Assembly
32
Lever, Catch
33
Seal, Lever
35
Retainer
38
Actuator
39
Screw, 8 x 1/2 (3)
41
Barrier, Door
42
Shield, Harness
44
W11693756 Whirlpool Screw Assembly
45
Barrier, Console
47
Edging, Panel
48
Panel, Front
49
Trim, Door (L.H.)
49
Fitting-Straight 3/8“
60
675611 Whirlpool Spring Assembly
61
WP716401 Whirlpool Dishwasher Retainer
62
Panel, Access
63
Cap, End (L.H.)
63
Cap, End (R.H.)
64
Foot (2)
65
Screw, 8-18 x 5/8 (10)
66
Overlay, Access Panel
74
WP488627 Whirlpool Refrigerator Screw
77
Washer (2)
78
WP90767 Whirlpool Screw
89
Lever, Release
90
Spacer, Panel
91
Screw, 6-32 x 1
92
302251 Whirlpool Dishwasher Screw
93
SCREW 8A
94
Clip, Wire
95
Retainer, Clip
←
