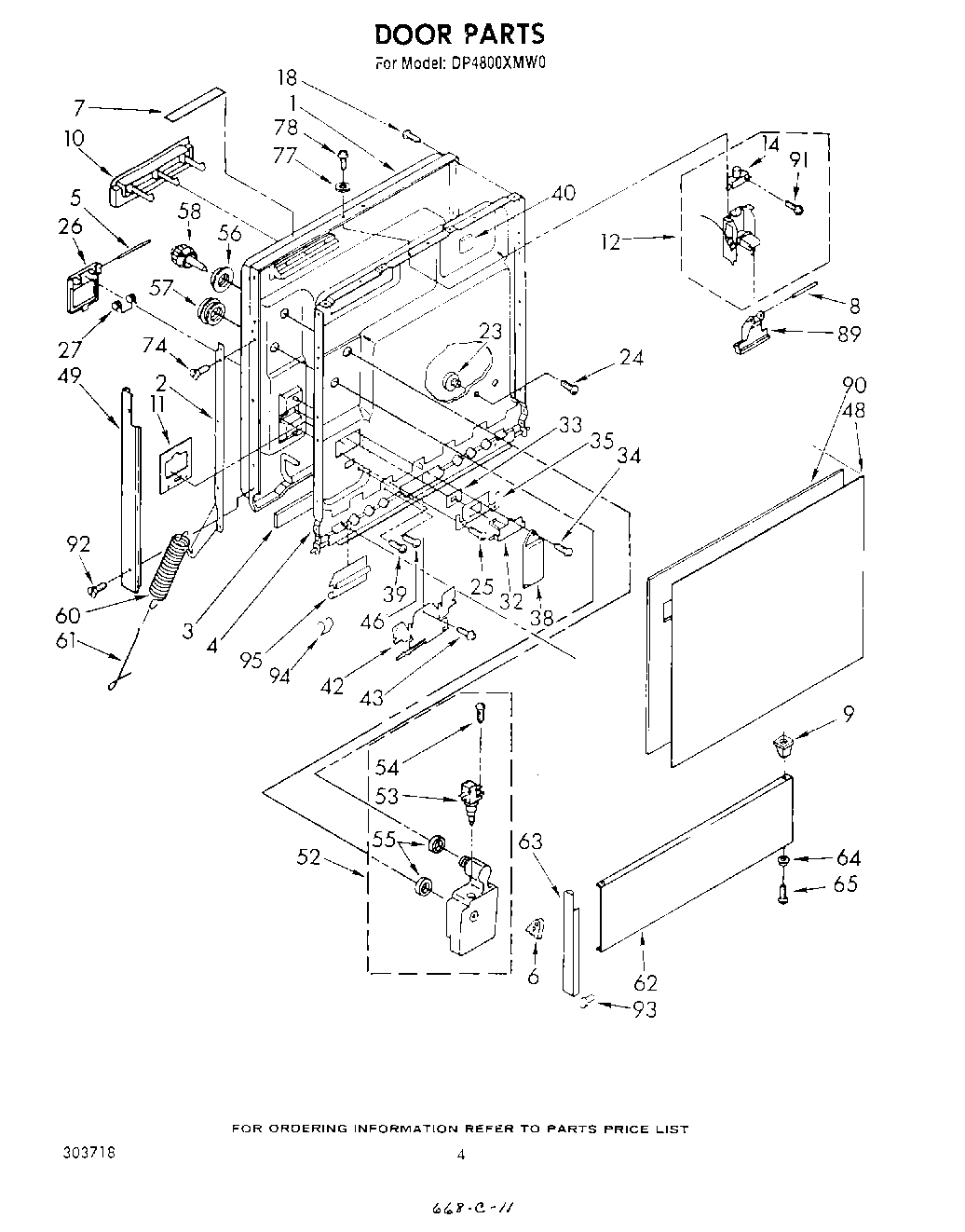

DP4800XMW0 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (R.H.)
2	Support Door (L.H.)
3	Gasket, Door
4	Door, Inner (Includes Illus. 4)
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, Users Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
23	Button, Retainer (3)
24	Screw, 8-18 x 3/8 (3)
27	WP8066018 Whirlpool Spring Assembly
32	Lever, Catch
33	Seal, Lever
34	WP304231 Whirlpool Dishwasher Screw
35	Retainer
38	Actuator
39	Screw, 8 x 1/2 (3)
40	Spacer, Timer
42	Shield, Harness
48	Panel, Front
49	Fitting-Straight 3/8“
49	Trim, Door (L.H.)
52	Dispenser, Wetting Agent
53	Actuator
54	Screw, 4-20 x 3/8 (2)
55	Washer
56	Nut, 1-14
57	Indicator, Leveler
58	Cap, Drip
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End R.H.
63	Cap, End L.H.
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
78	WP90767 Whirlpool Screw
89	Lever, Release
90	Spacer, Panel
91	Screw, 6-32 x 1
92	302251 Whirlpool Dishwasher Screw
93	SCREW 8A
94	Clip, Wire
95	Retainer, Clip
