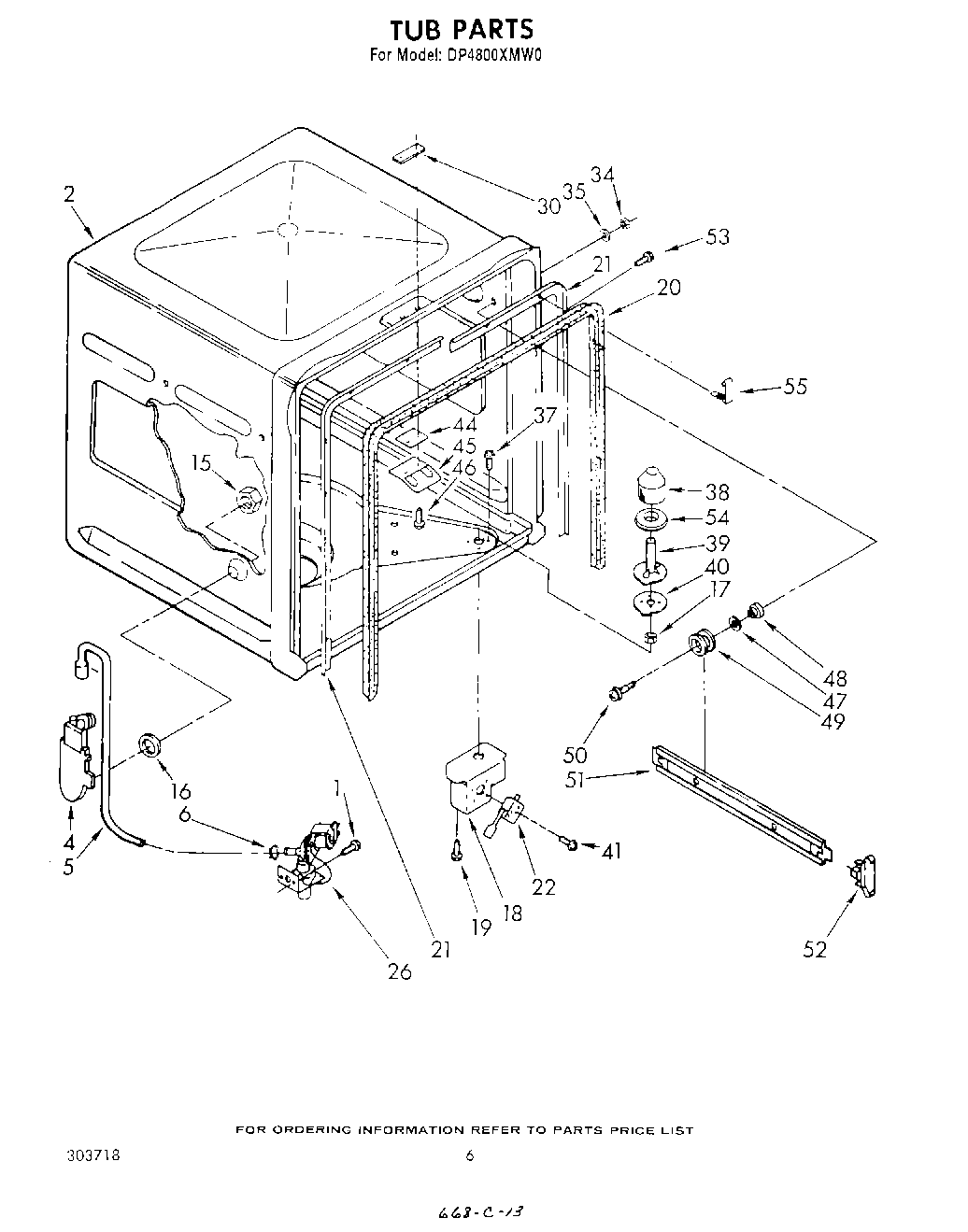

DP4800XMW0 04 – TUB, LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL LIT304741
	WPL LIT303718
	285006 Whirlpool Spray
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	Leveler (Thinner) (2oz.)
	WPL LIT677967
	WPL LIT304070
	Washer (Belt Drive)
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	Dryer
	WPL LIT303312
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	WP90767 Whirlpool Screw
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Retainer (L.H.)
20	Gasket
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
22	Switch, Pressure
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alt.)
26	Valve, Water Inlet
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	Clip, Gasket (2)
