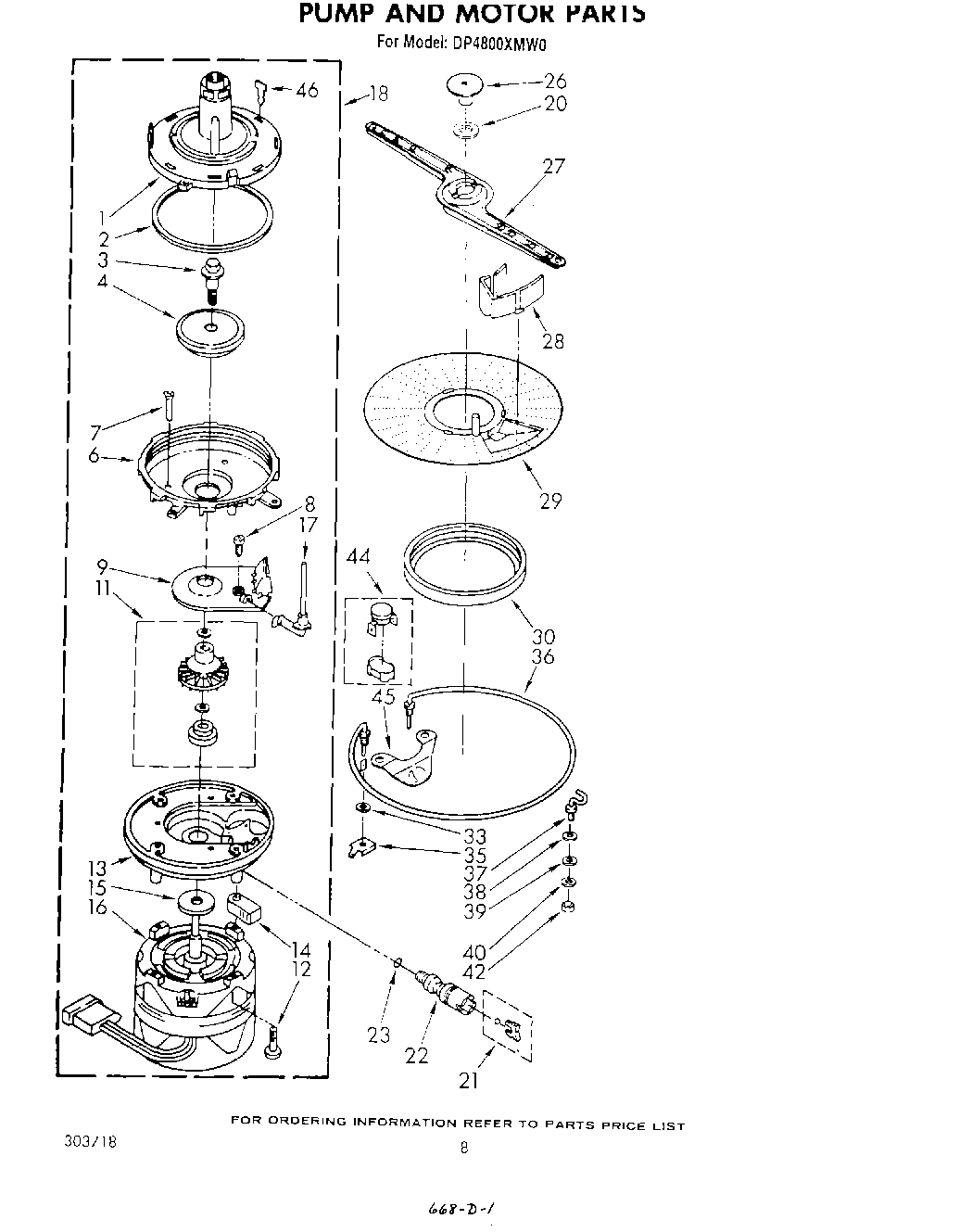

DP4800XMW0 05 – PUMP AND MOTOR

Products

Position	Product
1	Pump Housing, Upper
2	Seal, Ring
3	WP3371152 Whirlpool Dishwasher Screw
4	Impeller
6	Pump Housing, Lower
7	718257 Whirlpool Dishwasher Screw
8	WP9741232 Whirlpool Dishwasher Screw
9	Coverplate
11	Kit, Drain Impeller
12	Screw, 13-16 (4)
13	Base, Pump
14	WP3367197 Whirlpool Dishwasher Support
15	W10909679 Whirlpool Dishwasher Slinger
16	Motor
17	Bleeder Assembly
18	Pump & Motor Assembly
20	WP719576 Whirlpool Dishwasher Bearing
21	Check Ball & Retainer
22	675238 Whirlpool Check Valve
23	``O`` Ring
26	Cap, Nozzle
27	Spray Arm, Lower
28	Guard, Screen
29	Screen, Sump
30	717000 Whirlpool Dishwasher Gasket
33	WP717273 Whirlpool Dishwasher Rubber Washer
35	Nut, Heater Element
36	Heater
36	Heater (Alternate)
36	Heater (Alternate)
36	Heater (Alternate)
36	Heater (Alternate)
37	Support, Heater (2)
38	Washer, Retainer (2)
39	Washer (2)
40	Washer (2)
42	Nut, Hex
44	Thermostat (Alt.)
44	Thermostat (Alt.)
44	Thermostat
45	Bracket
46	Key, Pump Housing
