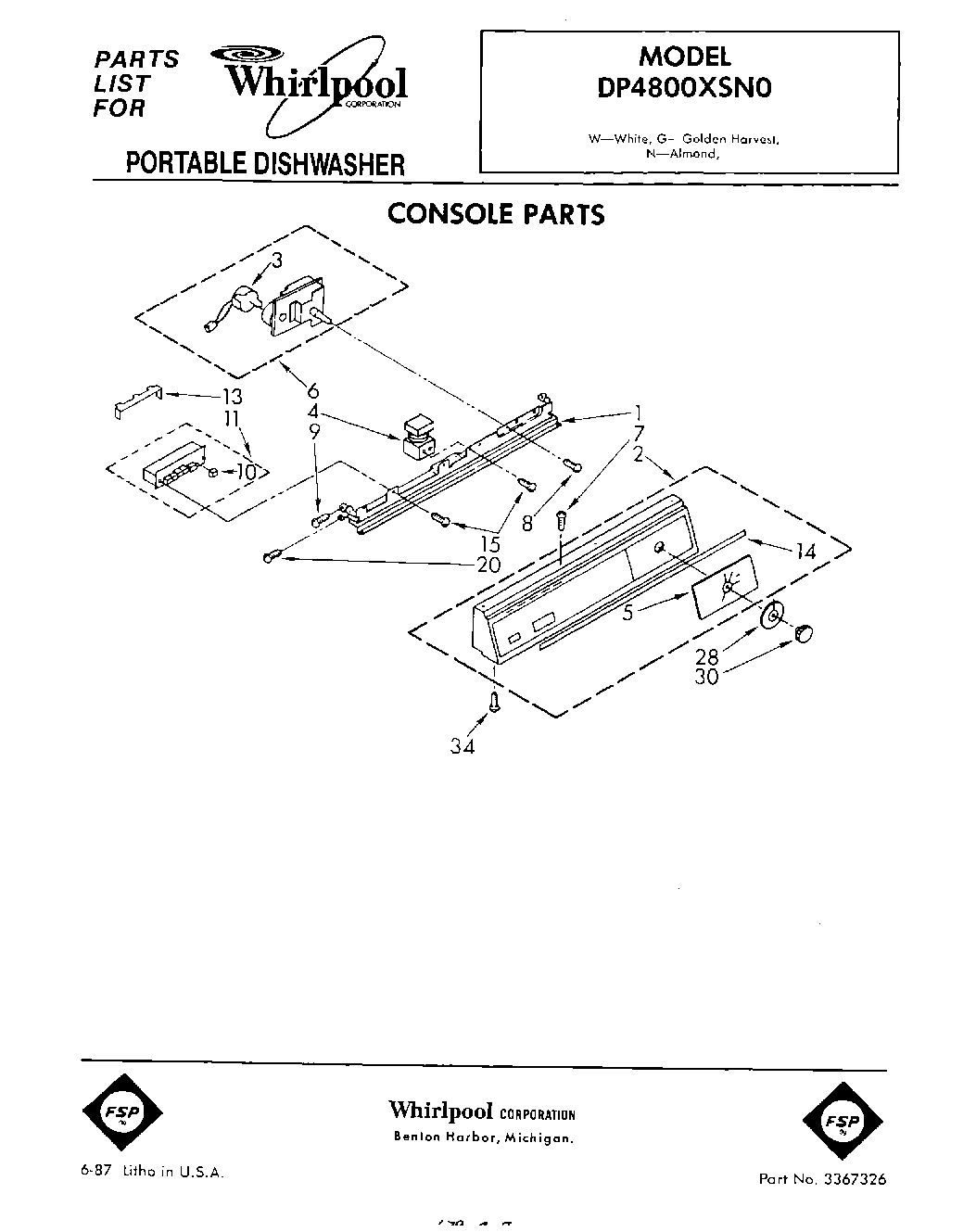

DP4800XSN0 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Panel, Escutcheon
3	Motor, Timer
4	Relay, Start
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	Insert, Console
6	Timer
7	W10759522 Whirlpool Screw
8	WP356418 Whirlpool Screw
9	WP302868 Whirlpool Screw
10	Button
11	Switch, Push Button
13	Barrier
14	Support-Flue Deflector
15	WP489128 Whirlpool Refrigerator Screw
20	Screw, 8-18 x 5/8
28	Dial, Indicator
30	Knob
34	WP487353 Whirlpool Refrigerator Screw
