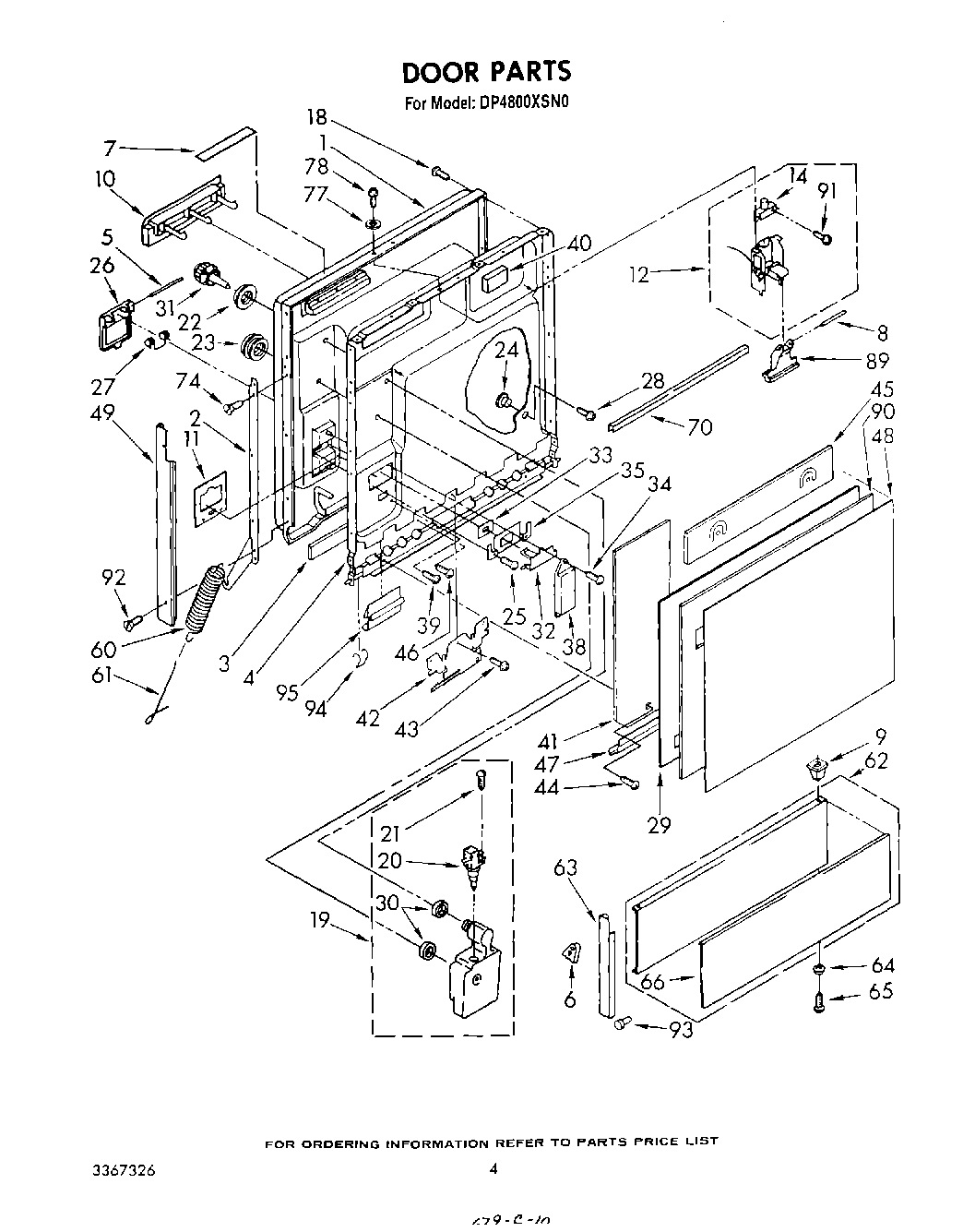

DP4800XSN0 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (R.H.)
2	Support, Door (L.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, Users Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
14	Switch, Interlock
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Actuator
21	Screw, 4-20 x 3/8 (2)
22	Nut, 1-14
23	Indicator, Leveler
24	Button, Retainer (3)
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 8-18 x 3/8 (3)
30	Washer
31	Cap, Drip
32	Lever, Catch
33	Seal, Lever
34	WP304231 Whirlpool Dishwasher Screw
35	Retainer
38	Actuator
39	Screw, 8 x 1/2 (3)
40	Spacer, Timer
41	Barrier, Door
42	Shield, Harness
44	W11693756 Whirlpool Screw Assembly
45	Barrier, Console
47	Edging, Panel
48	Panel, Front
49	Trim, Door (R.H.)
49	Trim, Door (L.H.)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End R.H.
63	Cap, End L.H.
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
66	Overlay, Access Panel
70	Protector, Edge
71	Pad, Sound
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
78	WP90767 Whirlpool Screw
89	Lever, Release
90	Spacer, Panel
91	Screw, 6-32 x 1
92	Screw, 8 x 1/2 (4)
93	SCREW 8A
94	Clip, Wire
95	Retainer, Clip
