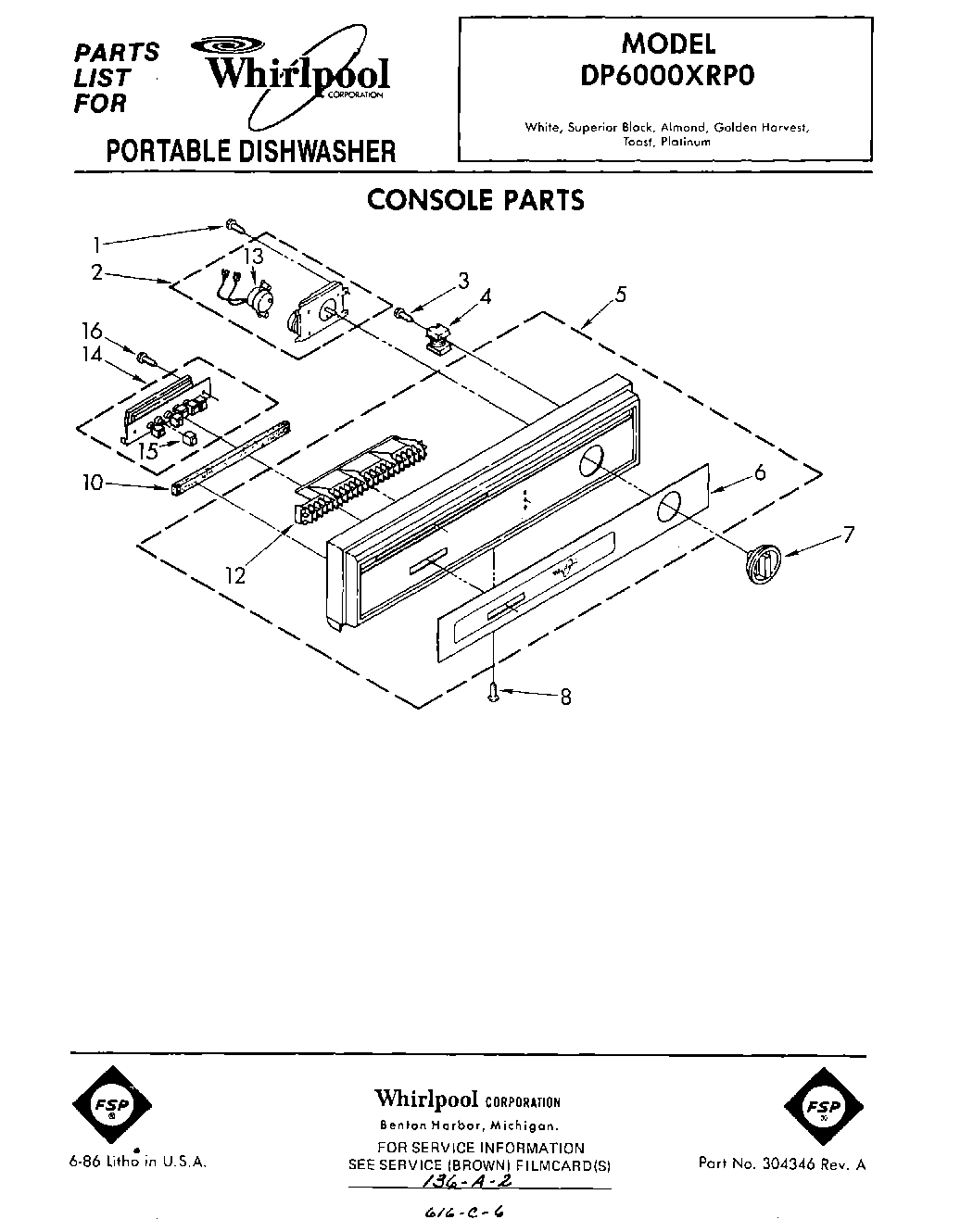

| 2 | Timer |
| 3 | Screw, 7-18 x 1-3/8 Slot Hex Wash Hd |
| 4 | Relay, Start |
| 5 | Console |
| 6 | Insert, Decorative |
| 7 | Knob, Timer |
| 8 | WP488729 Whirlpool Refrigerator Door Screw |
| 10 | Baffle |
| 12 | Grill, Vent (Includes Illus 11) |
| 13 | Motor, Timer |
| 14 | Switch, Pushbutton |
| 15 | Button (6) |
| 16 | WP304231 Whirlpool Dishwasher Screw |
