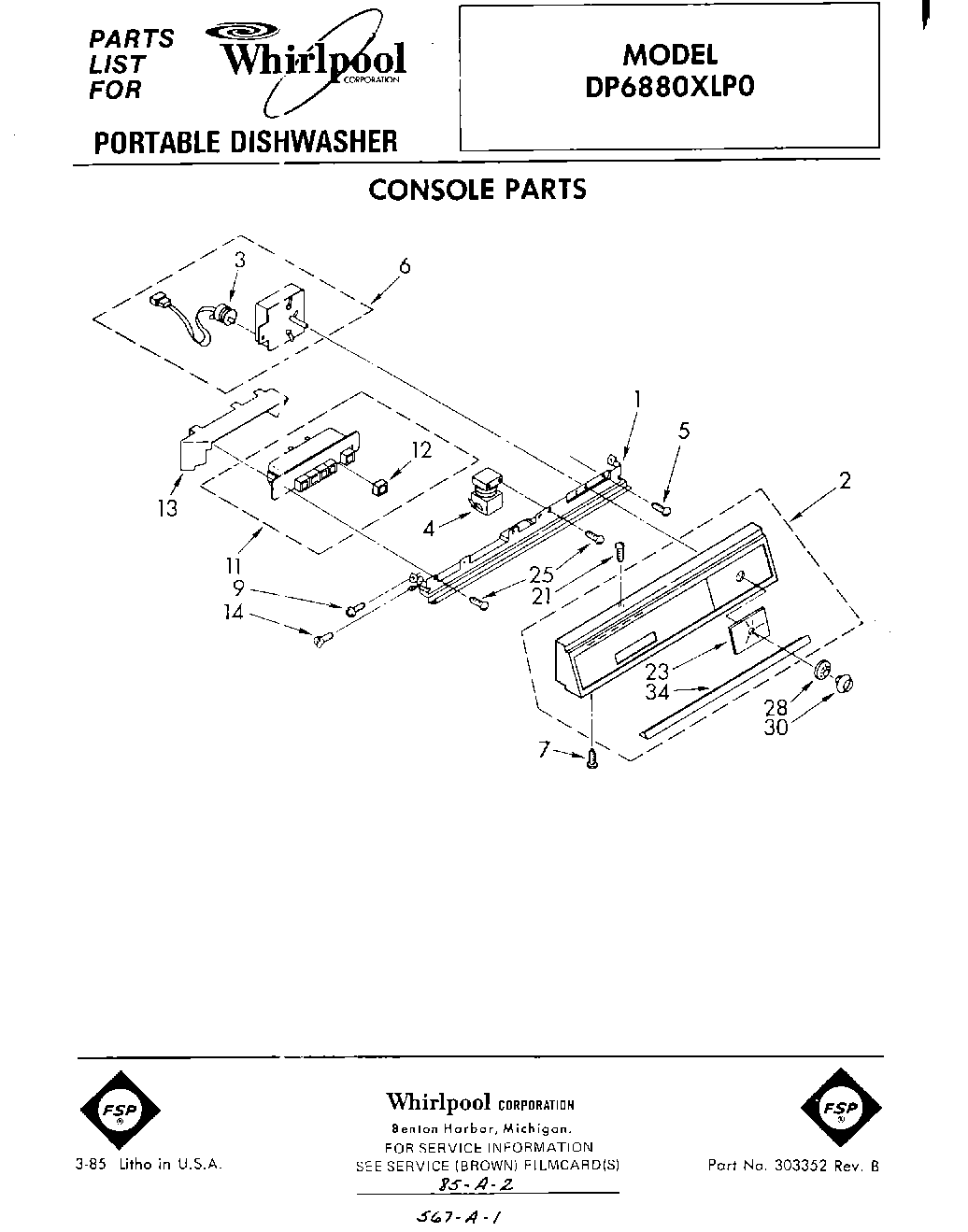

DP6880XLP0 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Console Assembly
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5WP356418 Whirlpool Screw
6Timer
7WP487353 Whirlpool Refrigerator Screw
9WP302868 Whirlpool Screw
11Switch, Push Button
12Button
13Barrier
14Screw, 8-18 x 5/8
21W10759522 Whirlpool Screw
23Insert
25WP489128 Whirlpool Refrigerator Screw
28Dial, Indicator
30Knob
34Support-Flue Deflector
