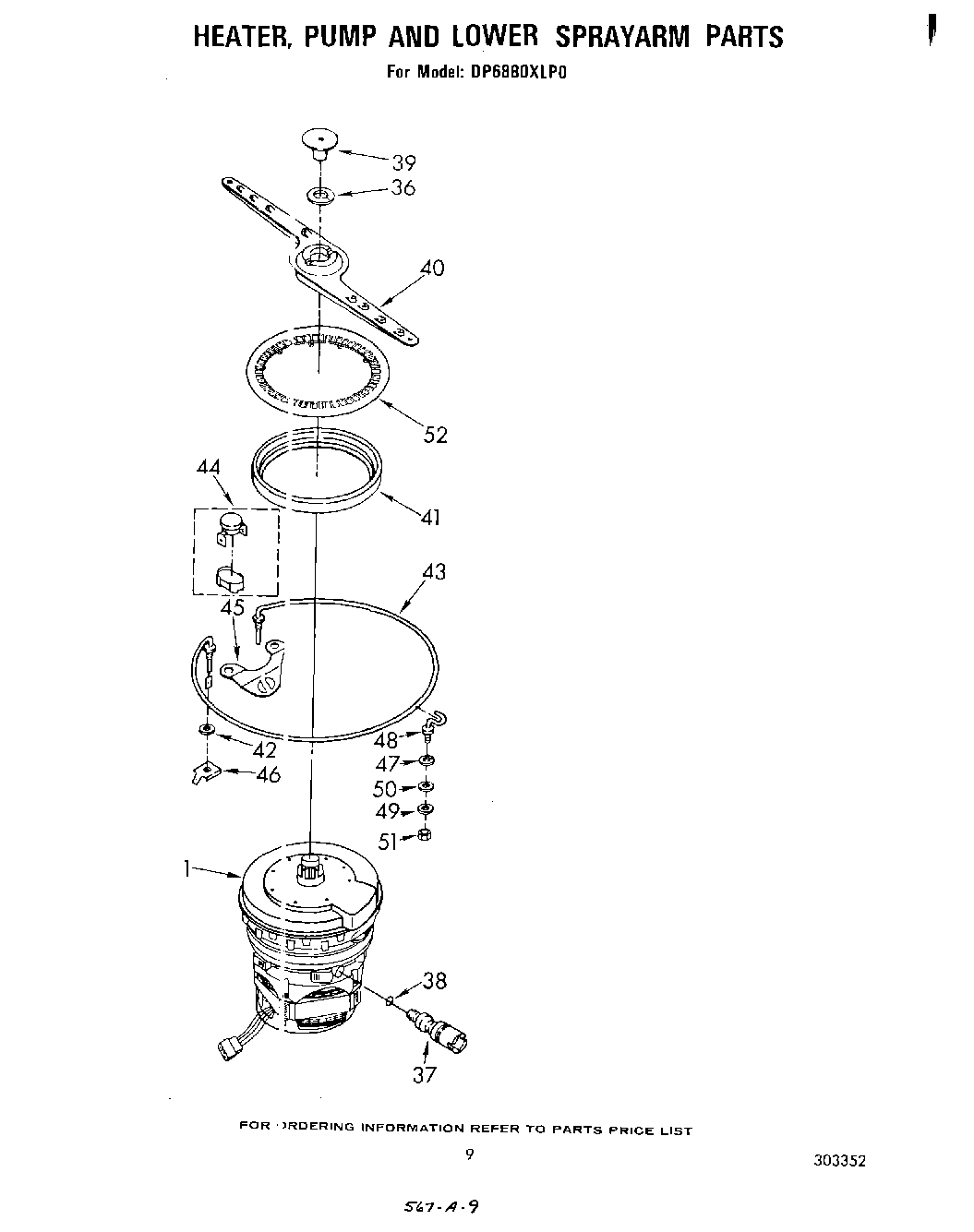

| 1 | Pump & Motor Assembly |
| 36 | WP719576 Whirlpool Dishwasher Bearing |
| 37 | Adapter, Valve Check (Includes Illus. 38) |
| 38 | ``O`` Ring |
| 39 | Cap, Nozzle |
| 40 | Spray Arm, Lower |
| 41 | 717000 Whirlpool Dishwasher Gasket |
| 42 | WP717273 Whirlpool Dishwasher Rubber Washer |
| 43 | Heater (Alternate) |
| 43 | Heater (Alternate) |
| 43 | Heater (Alternate) |
| 43 | Heater (Alternate) |
| 44 | Thermostat |
| 45 | Bracket |
| 46 | Nut, Heater Element |
| 47 | Washer, Retainer (2) |
| 48 | Support, Heater (2) |
| 49 | Washer (2) |
| 50 | Washer (2) |
| 51 | Nut, 10-32 (2) |
| 52 | Grate |
