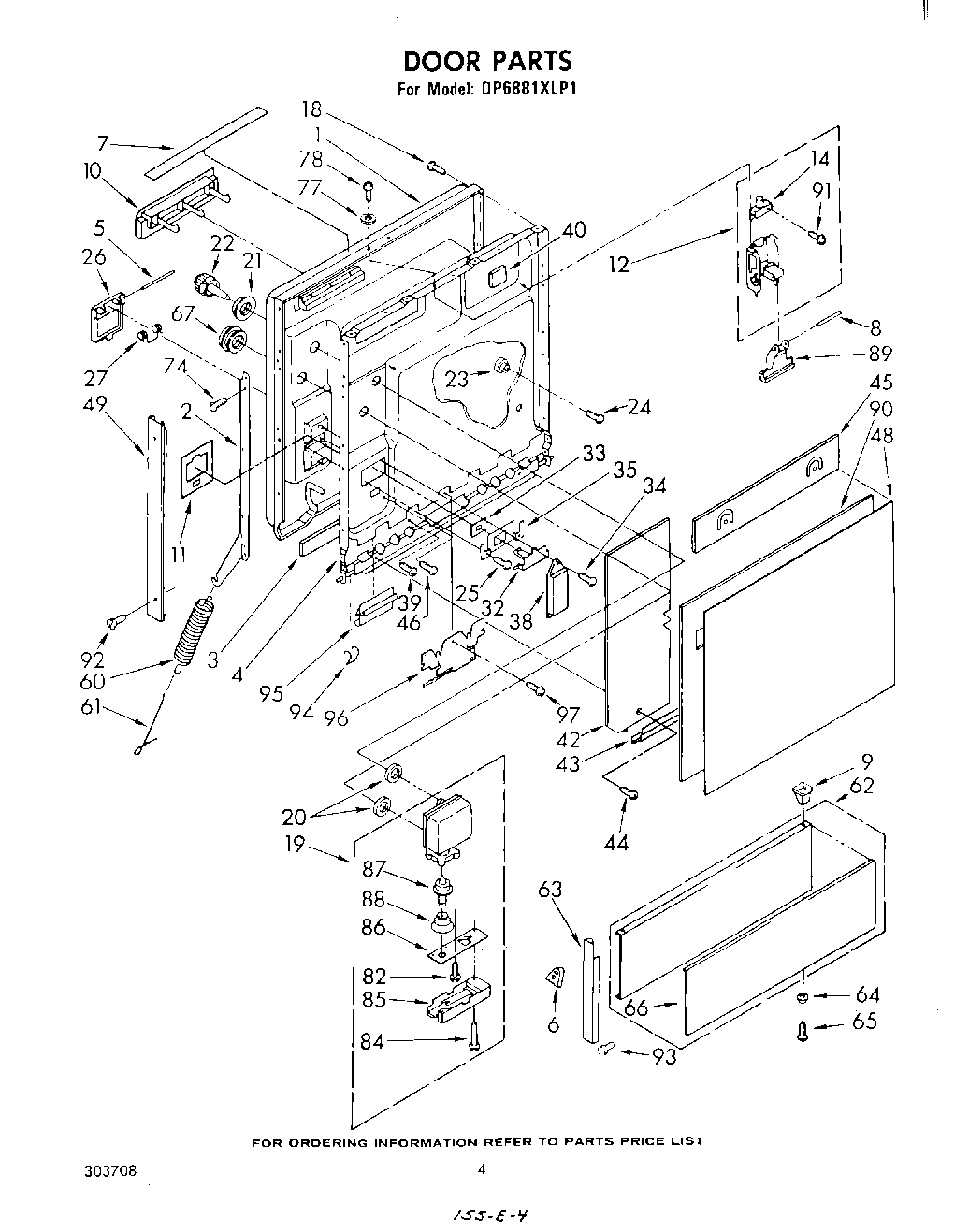

DP6881XLP1 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (R.H.)
2	Support Door (L.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, User Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Level
23	Button, Retainer (3)
24	Screw, 8-18 x 3/8 (3)
27	WP8066018 Whirlpool Spring Assembly
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	WP304231 Whirlpool Dishwasher Screw
40	Spacer, Timer
42	Barrier, Door
43	Edging, Panel
44	W11693756 Whirlpool Screw Assembly
45	Barrier, Console
48	Panel, Front
49	Fitting-Straight 3/8“
49	Trim, Door (L.H.)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End (R.H.)
63	Cap, End (L.H.)
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
66	Overlay, Access Panel
66	Overlay, Access Panel (Brushed Aluminum (Optional))
67	Cap, Drip
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
82	WP98165 Whirlpool Screw
84	WP488163 Whirlpool Refrigerator Screw
85	Acutator Assembly
86	Plate
87	Diaphrag
88	WPL 718592
89	Lever, Release
90	Spacer, Panel
91	Screw, 6-32 x 1
92	302251 Whirlpool Dishwasher Screw
93	SCREW 8A
94	Clip, Wire
95	Retainer, Clip
96	Shield, Harness
97	WP90767 Whirlpool Screw
