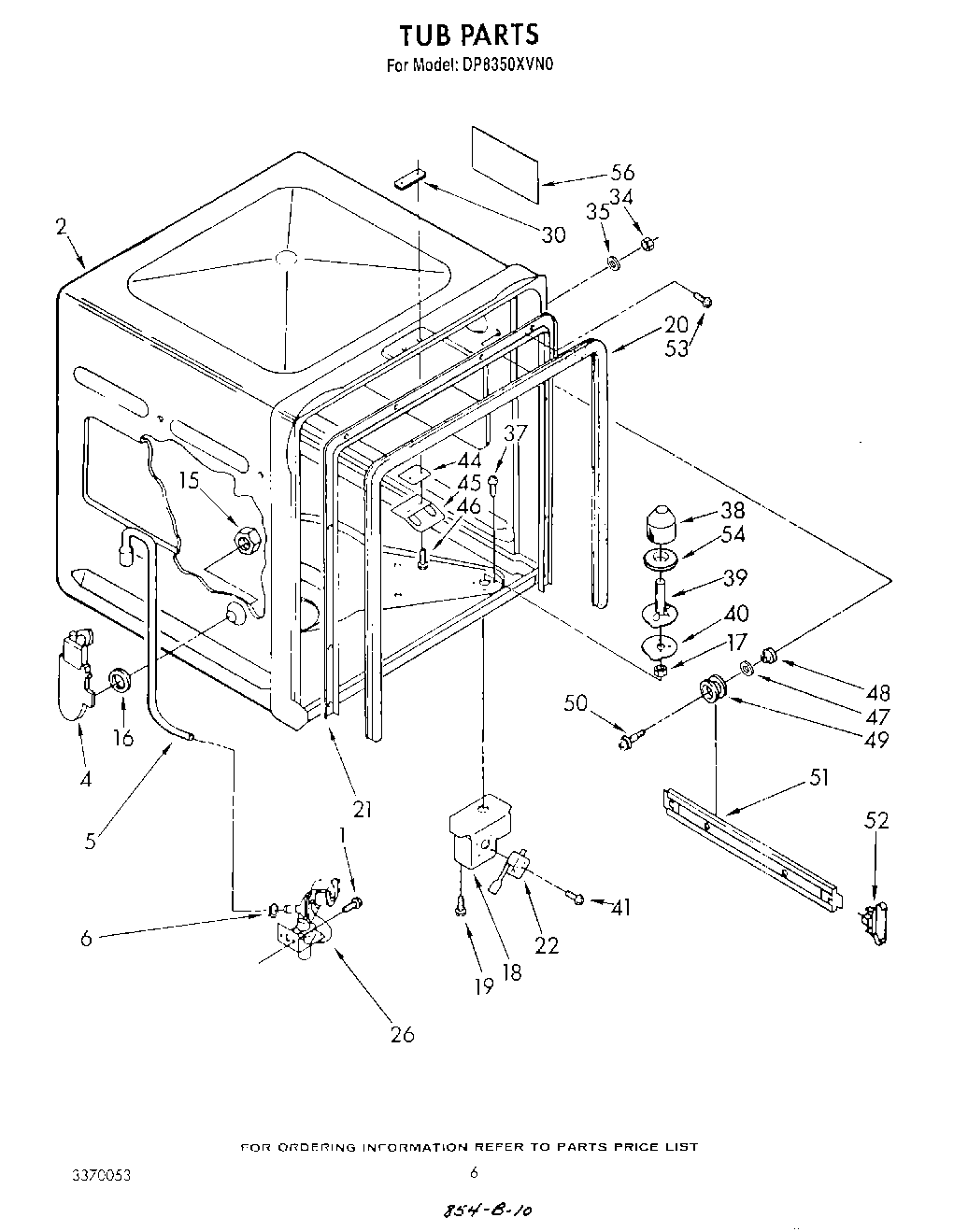

DP8350XVN0 04 – TUB, LITERATURE AND OPTIONALadmin2025-04-26T12:10:15+00:00DP8350XVN0 04 – TUB, LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Platinum (Uncut) |
| WPL 72112 |
| 350942 Whirlpool Spray Paint |
| WPL LIT3370077 |
| WPL LIT3369265 |
| 285006 Whirlpool Spray |
| WPL LIT3368833 |
| WPL LIT3367225 |
| Vinyl Touch Up (Blue) |
| Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| Kit, Epoxy Patch (White) |
| WPL LIT3370053 |
| Enamal, Toast (1 Qt. Uncut) |
| Leveler (Thinner) |
| WP72107 Whirlpool Touchup |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| Almond (Uncut) |
| Paint, Spray (13 Oz.) (Platinum) |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 72113 Whirlpool Touch-Up Paint |
| 350956 Whirlpool Spray Assembly |
| Golden Harvest |
| Golden Harvest (Uncut) |
| Toast |
| 799344 Whirlpool Refrigerator Paint |
| 1 | WP90767 Whirlpool Screw |
| 2 | tub assembly |
| 4 | Inlet, Water |
| 5 | Hose, Inlet |
| 6 | WP596669 Whirlpool Hose Clamp |
| 15 | Nut, 7/18-16 |
| 16 | Gasket |
| 17 | Nut |
| 18 | Bracket, Overflow Switch |
| 19 | Screw, 8 x 1/2 (3) |
| 20 | Gasket |
| 21 | Retainer, Gasket |
| 22 | Switch, Pressure |
| 26 | Valve, Water Inlet |
| 30 | Nut, Twin Spring |
| 34 | Nut, Lock |
| 35 | Washer (8) |
| 37 | WP488729 Whirlpool Refrigerator Door Screw |
| 38 | Float |
| 39 | Standpipe, Overflow |
| 40 | Gasket, Overflow |
| 41 | Screw, 4-40 x 3/4 |
| 44 | Shim |
| 45 | Strike |
| 46 | WP308685 Whirlpool Microwave Screw |
| 47 | Washer (8) |
| 48 | Washer, Cup |
| 49 | Roller, Rack Track |
| 50 | Screw, Shoulder (8) |
| 51 | Track (2) |
| 52 | Endcap, Front or Rear (2) |
| 53 | Screw, 8-18 x 5/8 (10) |
| 54 | Gasket, Standpipe (2) |
| 56 | Pad, Sound |
