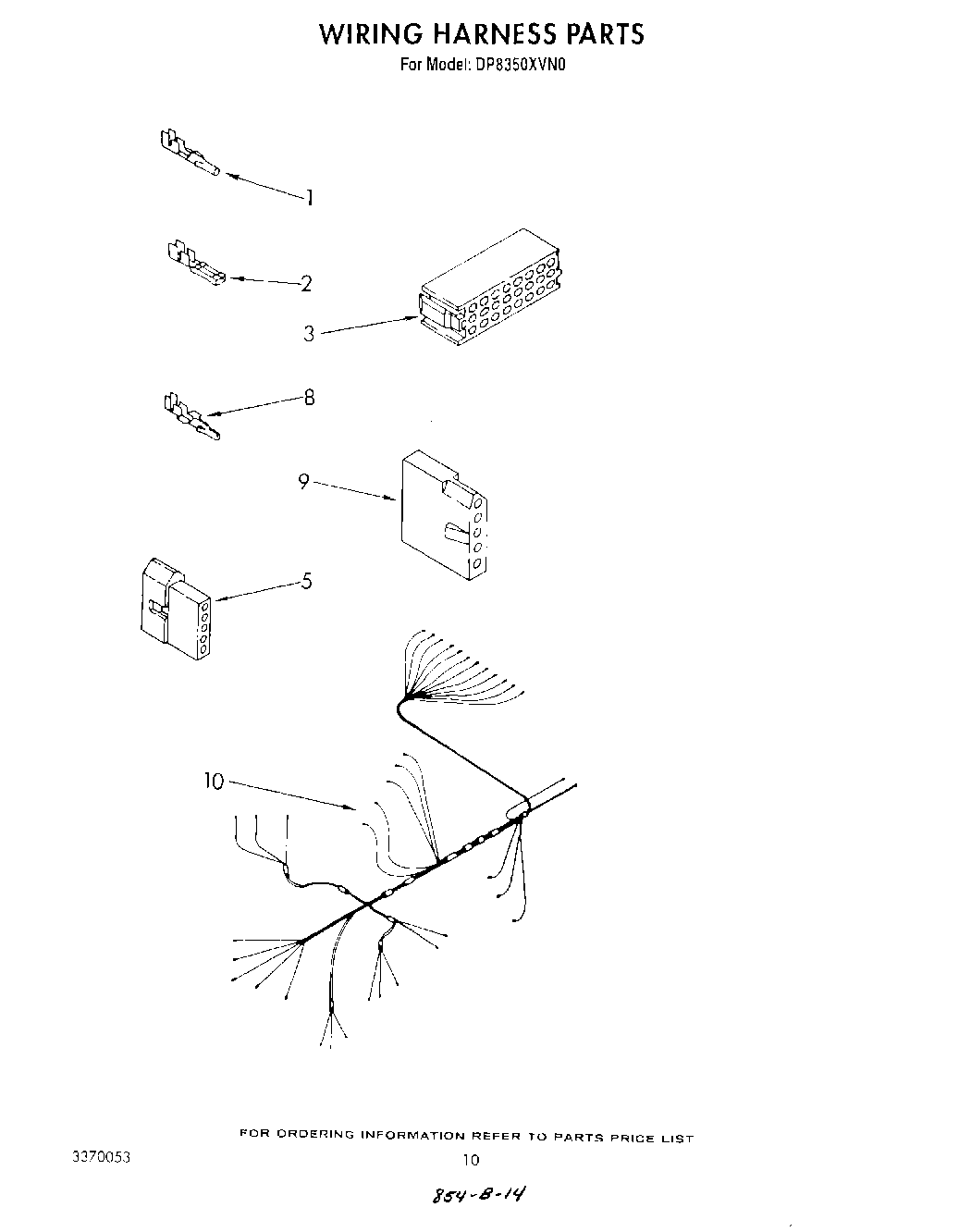

DP8350XVN0 07 – WIRING HARNESS

Written by

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
5	Cap, 5 Pin
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	harness, wiring
