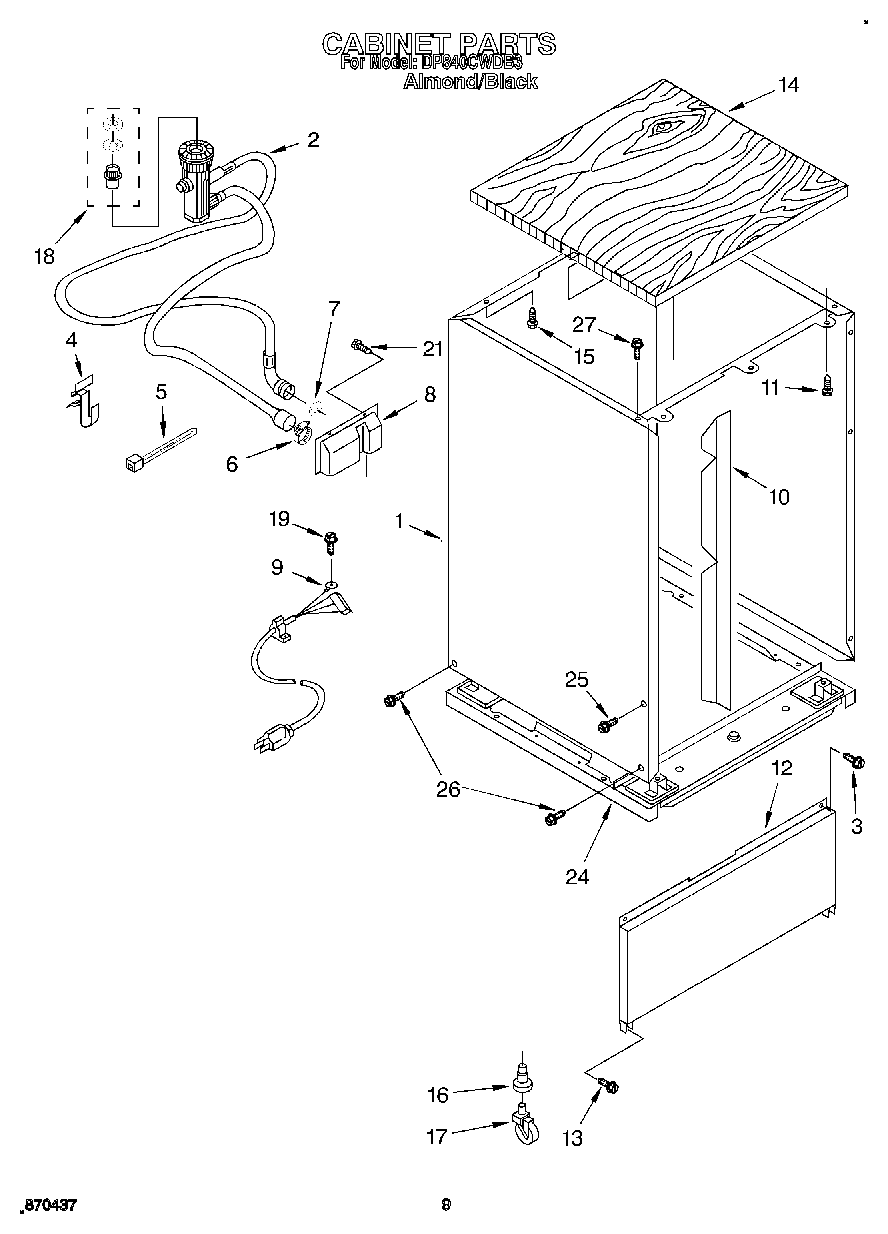

DP840CWDB3 08 – SECTION

Products

Position	Product
1	Shell Assembly (Almond)
2	Coupler Assembly
3	WP302868 Whirlpool Screw
4	Retainer, Hose
5	WPW10339879 Whirlpool Wire Tie
6	WP3367052 Whirlpool Hose Clamp
7	WP16123 Whirlpool Washer
8	Housing, Hose
9	Cord, Power
10	Pad, Divider
11	WP3373329 Whirlpool Dishwasher Screw
12	Shroud, Caster
13	Screw
14	Panel, Top
15	SCREW
16	Socket, Caster (Alternate)
17	WP3370639 Whirlpool Caster
18	WPW10254672 Whirlpool Faucet Adapter
21	SCREW
24	Frame Assembly
25	Screw, 8-18 x 1/2
26	Screw
27	302251 Whirlpool Dishwasher Screw
