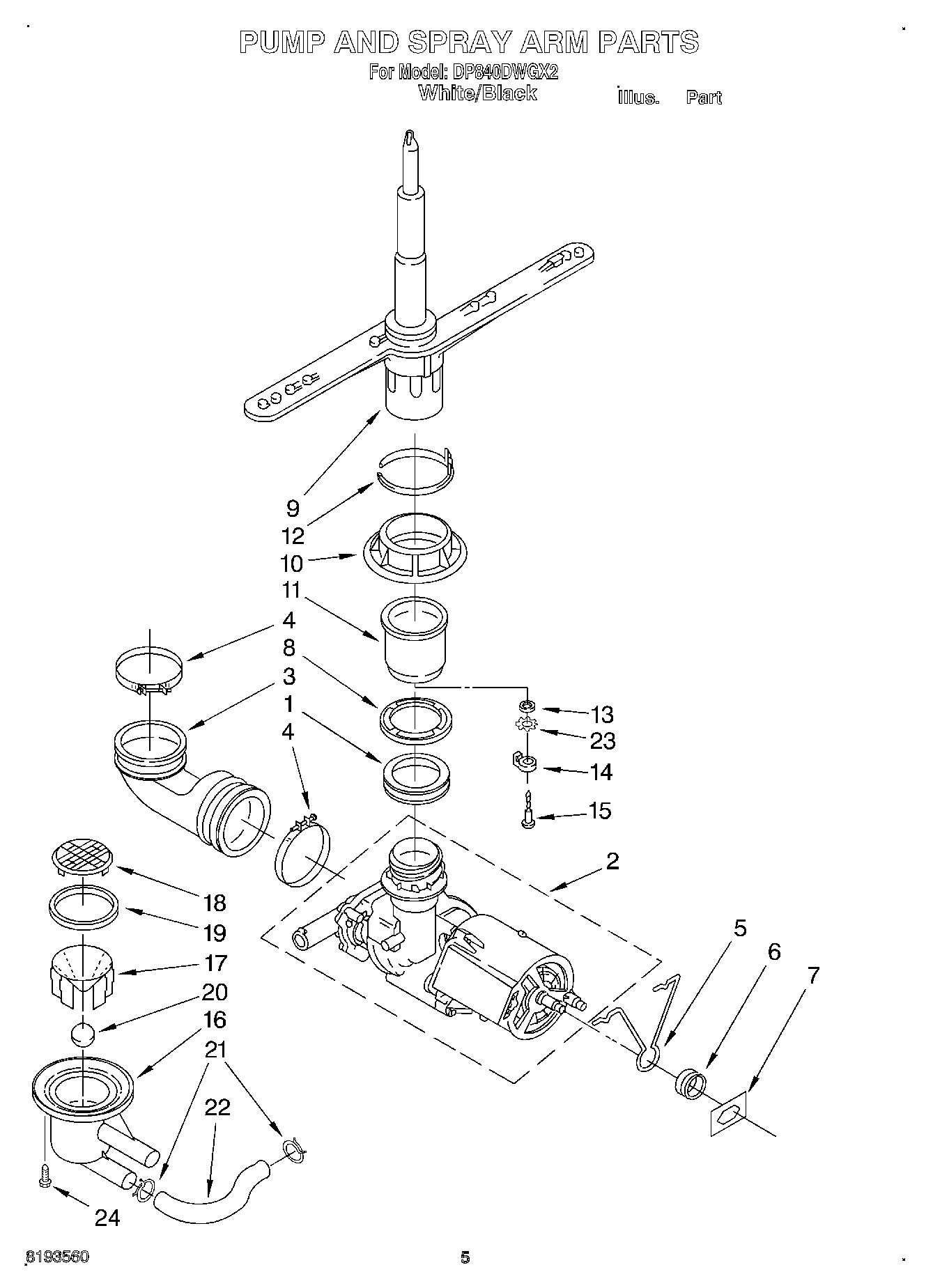

DP840DWGX2 04 – PUMP AND SPRAYARM

Products

PositionProduct
1Grommet, Pump Seal
2PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3W11189178 Whirlpool Dishwasher Hose
4Clamp (2)
5Support, Motor
6Grommet, Motor Support
7Push-Nut, Motor Support
8Washer, Grommet
9Spray Arm, Assembly Lower
10Nut, Pump Outlet
12WP3369045 Whirlpool Dishwasher Seal
13Washer
143371746 Whirlpool Dishwasher Bearing
15WP3371745 Whirlpool Dishwasher Support
16Collector
17WP3369176 Whirlpool Dishwasher Pump Housing
18Grate, Funnel
19WP3369177 Whirlpool Dishwasher Seal
20WP3369178 Whirlpool Dishwasher Check Ball
21CLAMP, HOSE
22Hose, Collector
23Washer, Curved
24Screw 10-16, Hi-Lo (4)
