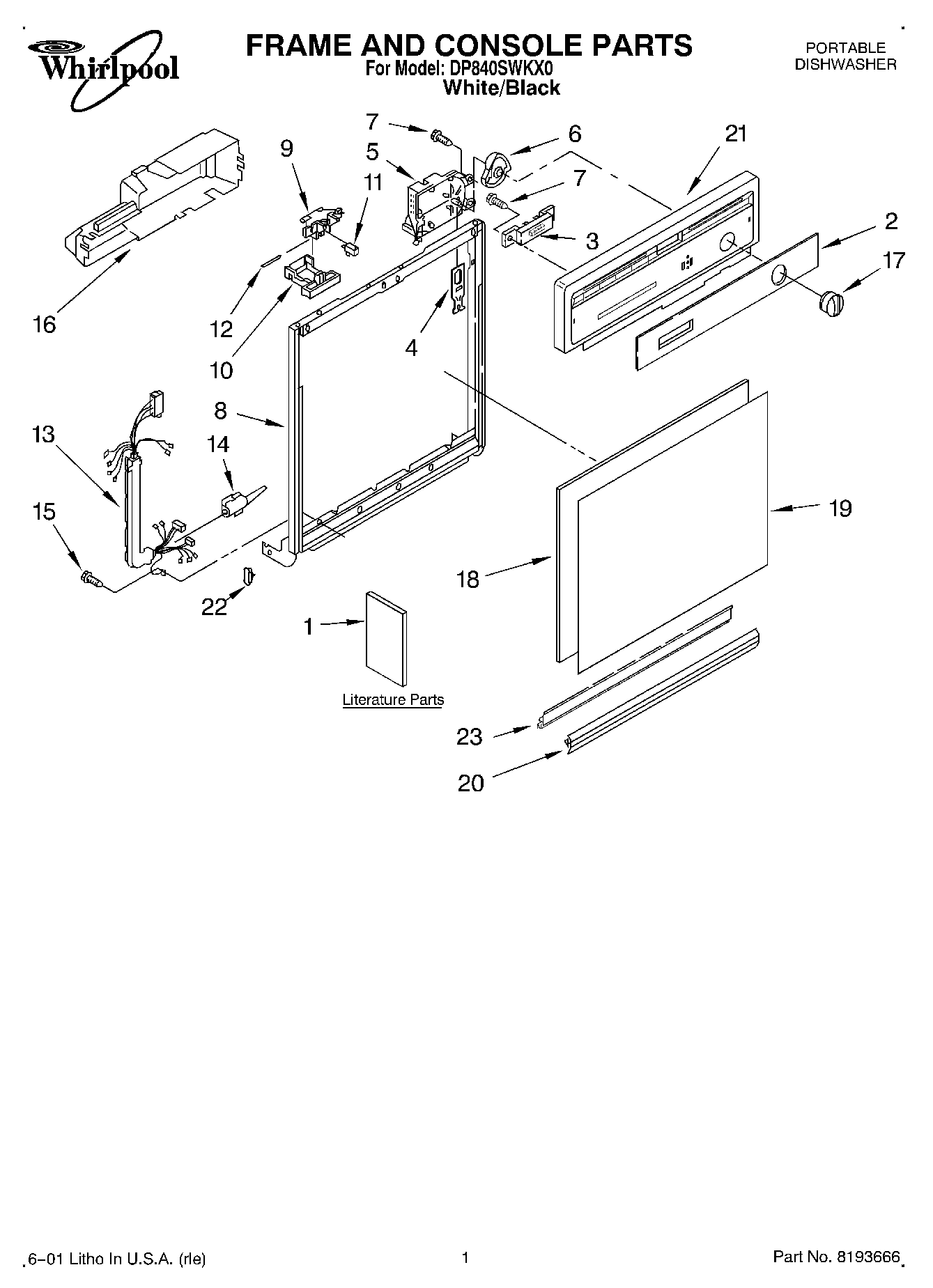

DP840SWKX0 01 – FRAME AND CONSOLE, LITERATURE

DP840SWKX0 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

DP840SWKX0 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Energy)
1Literature Parts (Diagram, Wiring)
1Literature Parts (Guide, Use & Care)
1Instructions, Installation
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Do-It Yourself Manual
2Insert, Console
38269365 Whirlpool Dishwasher PB Switch
4WP3369529 Whirlpool Dishwasher Follower
5WP8535372 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
178275308 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
21Console (Includes Item 2)
22WP3373234 Whirlpool Dishwasher Bearing
23WP3374716 Whirlpool Dishwasher Channel
