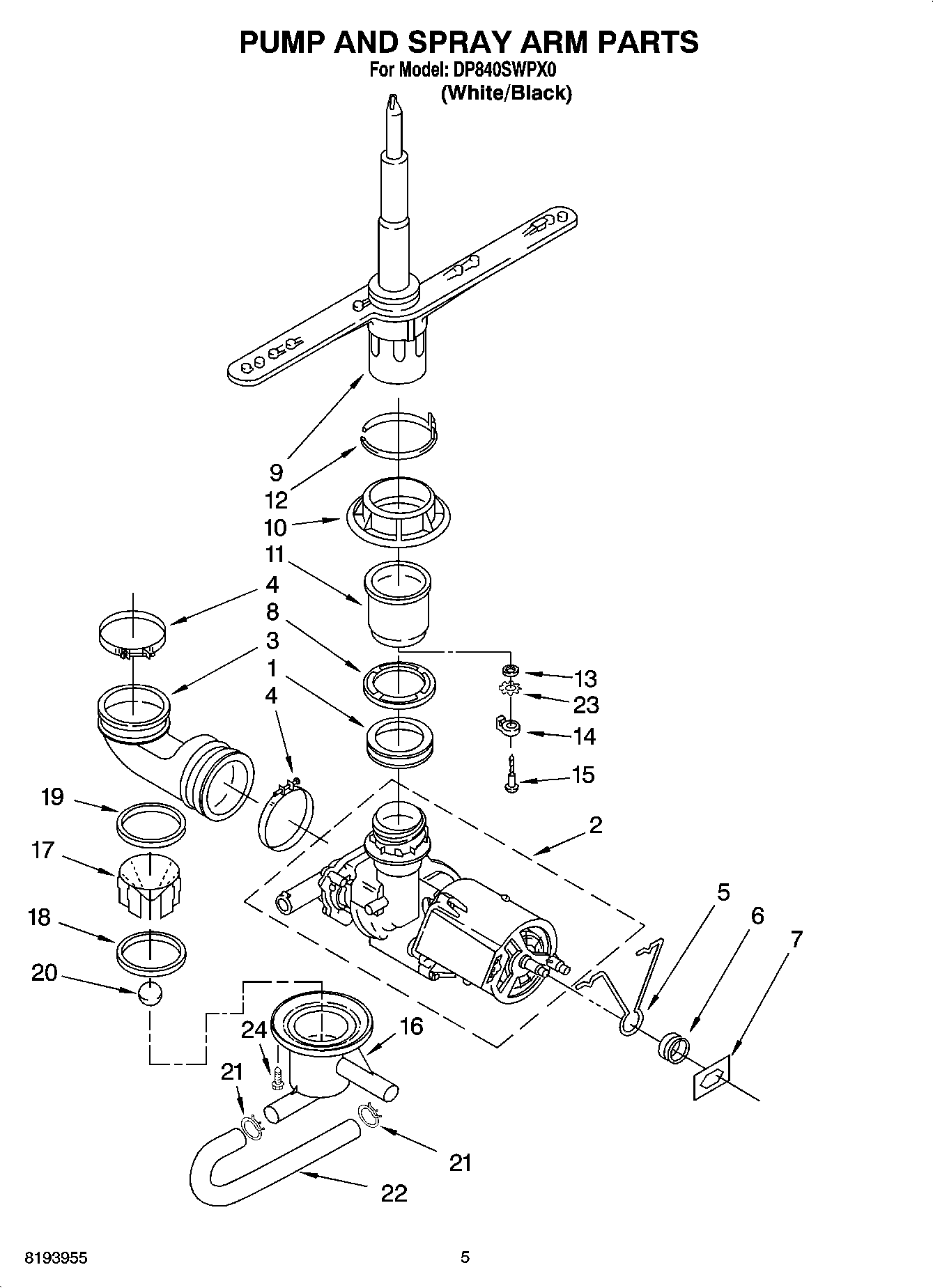

DP840SWPX0 04 – PUMP AND SPRAY ARM PARTS

Products

Position	Product
1	Grommet, Pump Seal
2	PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3	W11189178 Whirlpool Dishwasher Hose
4	Clamp (2)
5	Support, Motor
6	Grommet, Motor Support
7	Push-Nut, Motor Support
8	Washer, Grommet
9	Spray Arm, Assembly Lower
10	Nut, Pump Outlet
12	WP3369045 Whirlpool Dishwasher Seal
13	Washer
14	3371746 Whirlpool Dishwasher Bearing
15	WP3371745 Whirlpool Dishwasher Support
16	Collector w/Check Valve
17	WP8520841 Whirlpool Dishwasher Hose Adapter
18	WP8520843 Whirlpool Dishwasher Seal
19	WP3369177 Whirlpool Dishwasher Seal
20	WP3369178 Whirlpool Dishwasher Check Ball
21	CLAMP, HOSE
22	8520842 Whirlpool Dishwasher Hose
23	Washer, Curved
24	Screw 10-16, Hi-Lo (4)
