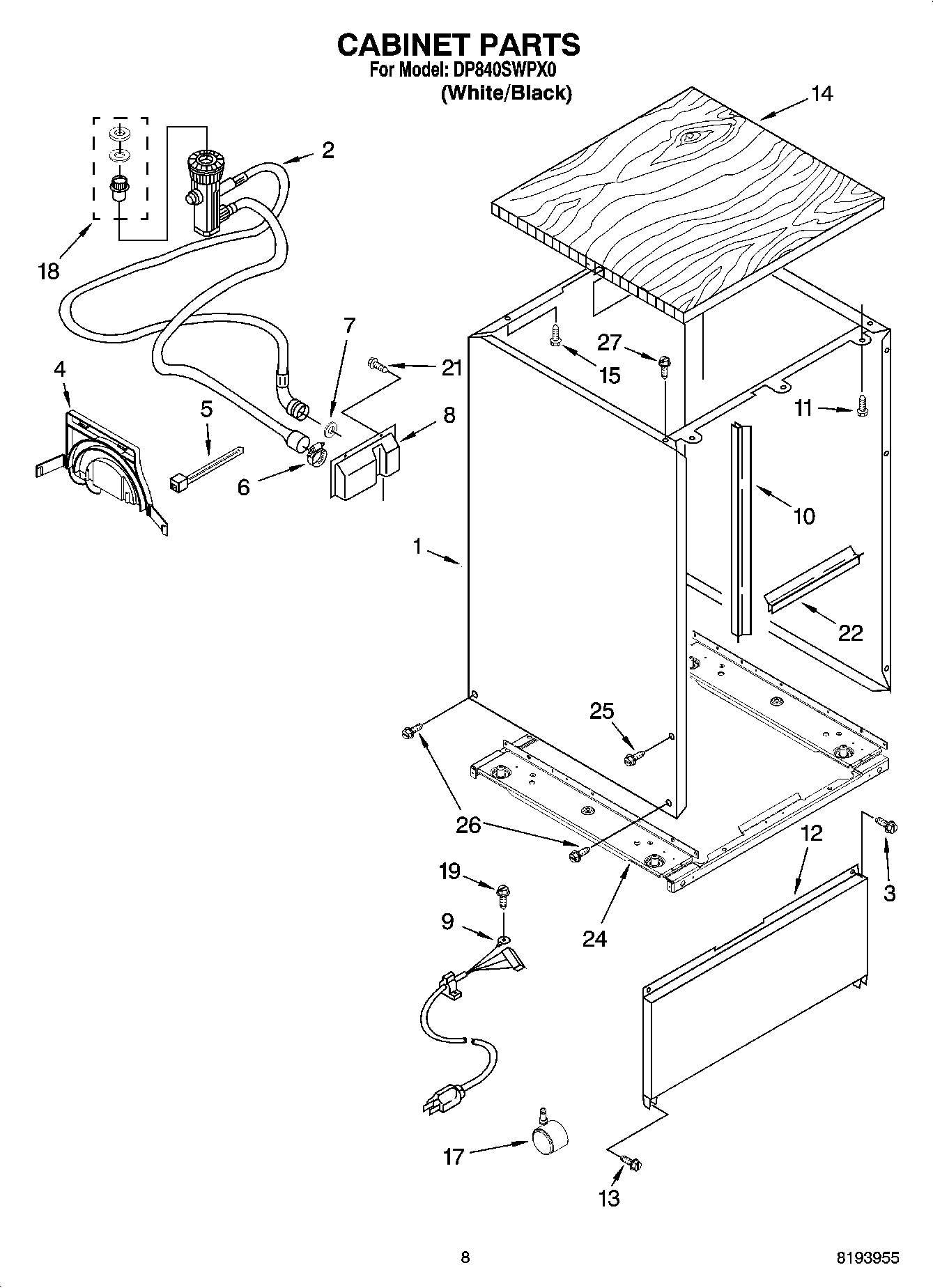

DP840SWPX0 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	CONVERSION KIT (Portable to Undercounter) Conversion Kit
	W10840471 Whirlpool Dishwasher Touch Up
	Side Panel Kit (White)
	Side Panel Kit: (Almond)
	DOOR SPRING KIT: (HEAVY DUTY)
	White
	AIR GAP KIT
	Conversion Kit (To Convert From Portable To Undercounter Installation)
	DISHRACK REPAIR
	ACCESSORY PARTS
	Door Spring Kit:
	WP300096 Whirlpool Dishwasher Air Gap
	Enamel, Black (1 Qt. Uncut)
	350942 Whirlpool Spray Paint
	WP676455 Whirlpool Dishwasher Touch-Up
	285006 Whirlpool Spray
	72017 Whirlpool Appliance Touch-Up Paint White
	72032 Whirlpool Touch Up Paint Black
	WP676453 Whirlpool Dishwasher Touch-Up
1	Shell Assembly (White)
2	WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3	WP302868 Whirlpool Screw
4	3378109 Whirlpool Dishwasher Cushion
5	WPW10339879 Whirlpool Wire Tie
6	WP3367052 Whirlpool Hose Clamp
7	WP16123 Whirlpool Washer
8	Housing, Hose
9	Cord, Power
10	Protector-Edge, Divider
11	WP3373329 Whirlpool Dishwasher Screw
12	Shroud, Caster
13	Screw
14	WP3373199 Whirlpool Dishwasher Top Panel
15	SCREW
17	WP8559933 Whirlpool Caster
18	WPW10254672 Whirlpool Faucet Adapter
21	SCREW
22	Protector-Edge, Divider
24	FRAME, ASSEMBLY
25	Screw, 8-18 x 1/2
26	Screw
27	302251 Whirlpool Dishwasher Screw
