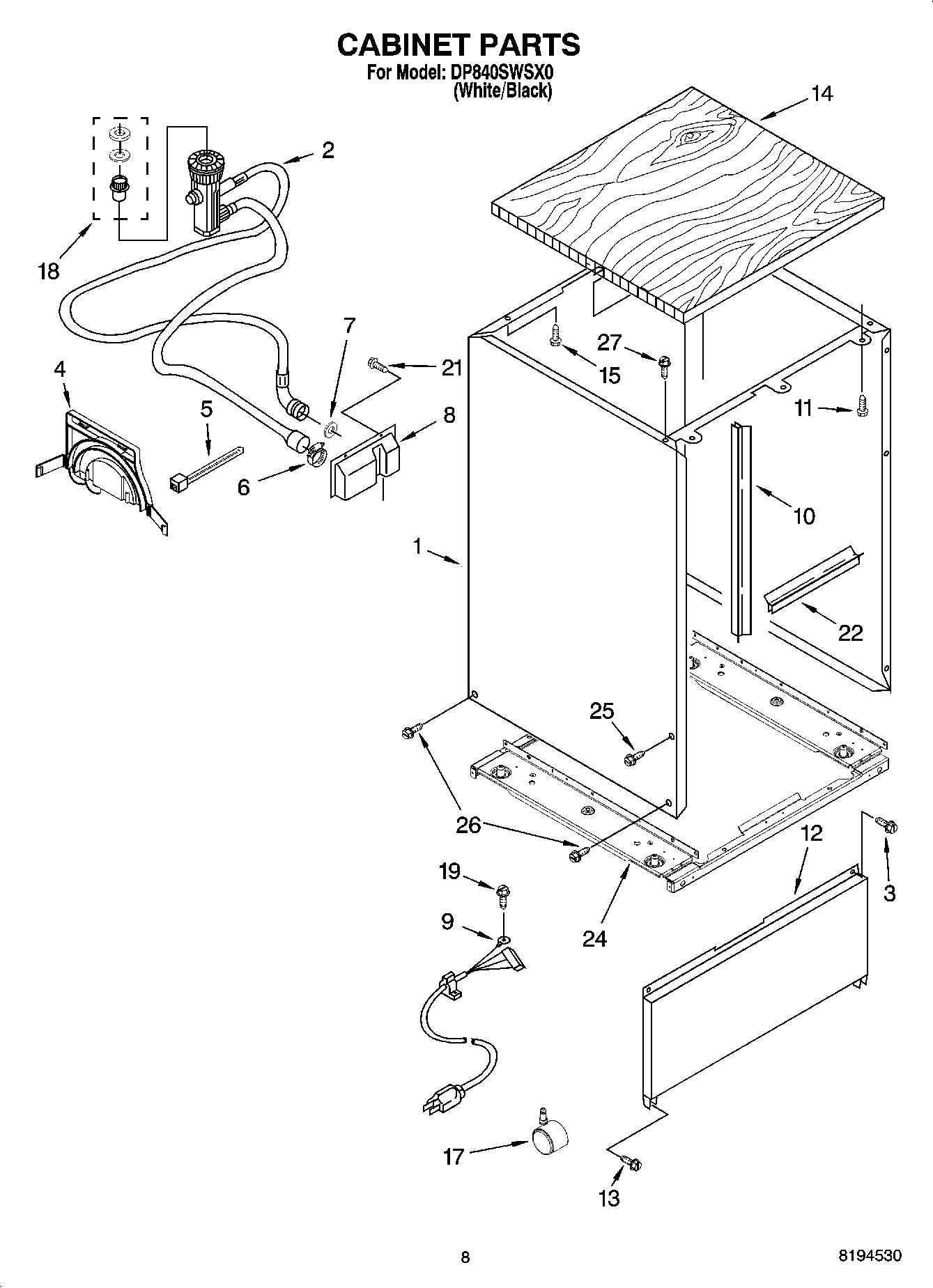

DP840SWSX0 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

DP840SWSX0 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

DP840SWSX0 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI22811A3
WP676453 Whirlpool Dishwasher Touch-Up
WP676455 Whirlpool Dishwasher Touch-Up
4378867 Whirlpool Dishwasher Panel
4378968 Whirlpool Dishwasher Mounting Bracket
Side Panel Kits (Black)
Side Panel Kits (Almond)
Custom Trim & Panel Kits (Black)
DOOR SPRING KIT: (HEAVY DUTY)
Custom Trim & Panel Kits (White)
Side Panel Kits (Biscuit)
Custom Trim & Panel Kits (Biscuit)
WPL ARI22812A1
WPL ARI22809A5
WPL ARI22810A8
4396853 Whirlpool Dishwasher Touch-Up
4396840RC Whirlpool Gray Rack Repair Kit
4396838RC Whirlpool Rack Repair Kit White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350930 Whirlpool White Spray Paint
4396277 Whirlpool Barrier Assembly
4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit
3385556 Whirlpool Drain Hose
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
1Shell Assembly (White)
2WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3WP302868 Whirlpool Screw
43378109 Whirlpool Dishwasher Cushion
5WPW10339879 Whirlpool Wire Tie
6WP3367052 Whirlpool Hose Clamp
7WP16123 Whirlpool Washer
8Housing, Hose
9W10831279 Whirlpool Dishwasher Power Cord
10Protector-Edge, Divider
11WP3373329 Whirlpool Dishwasher Screw
12Shroud, Caster
13Screw
14WP3373199 Whirlpool Dishwasher Top Panel
15SCREW
17WP8559933 Whirlpool Caster
18WPW10254672 Whirlpool Faucet Adapter
21SCREW
22Protector-Edge, Divider
24FRAME, ASSEMBLY
25Screw, 8-18 x 1/2
26Screw
27302251 Whirlpool Dishwasher Screw
