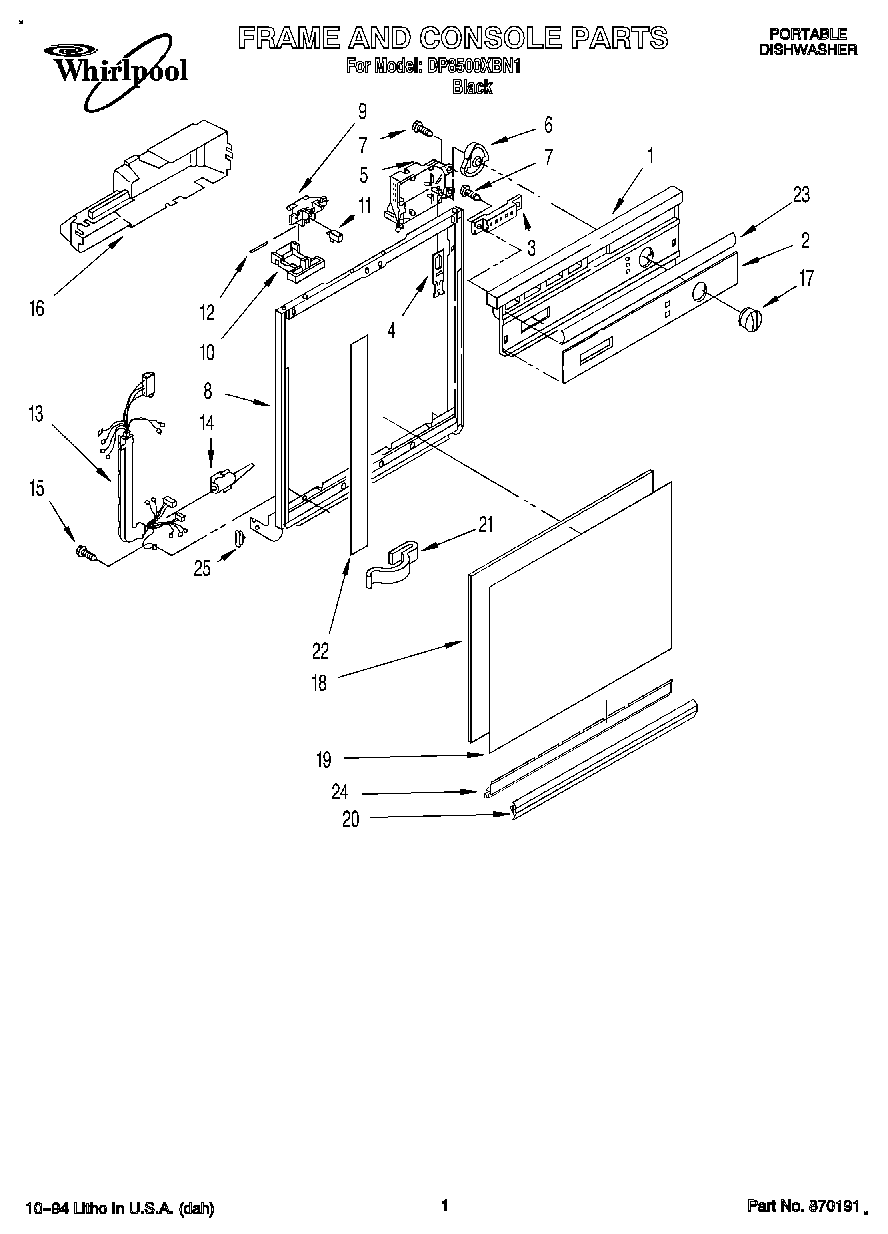

DP8500XBN1 01 – FRAME AND CONSOLE

DP8500XBN1 01 – FRAME AND CONSOLE

Written by

in

DP8500XBN1 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2)
2Insert, Console
3Switch
4Follower, Cam
5Timer
6WP3378124 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10WP3368954 Whirlpool Dishwasher Lever
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover Timer
17Knob, Timer
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
218528351 Whirlpool Clip
22Trim (2)
23Trim, Console
24WP3374716 Whirlpool Dishwasher Channel
25WP3373234 Whirlpool Dishwasher Bearing
