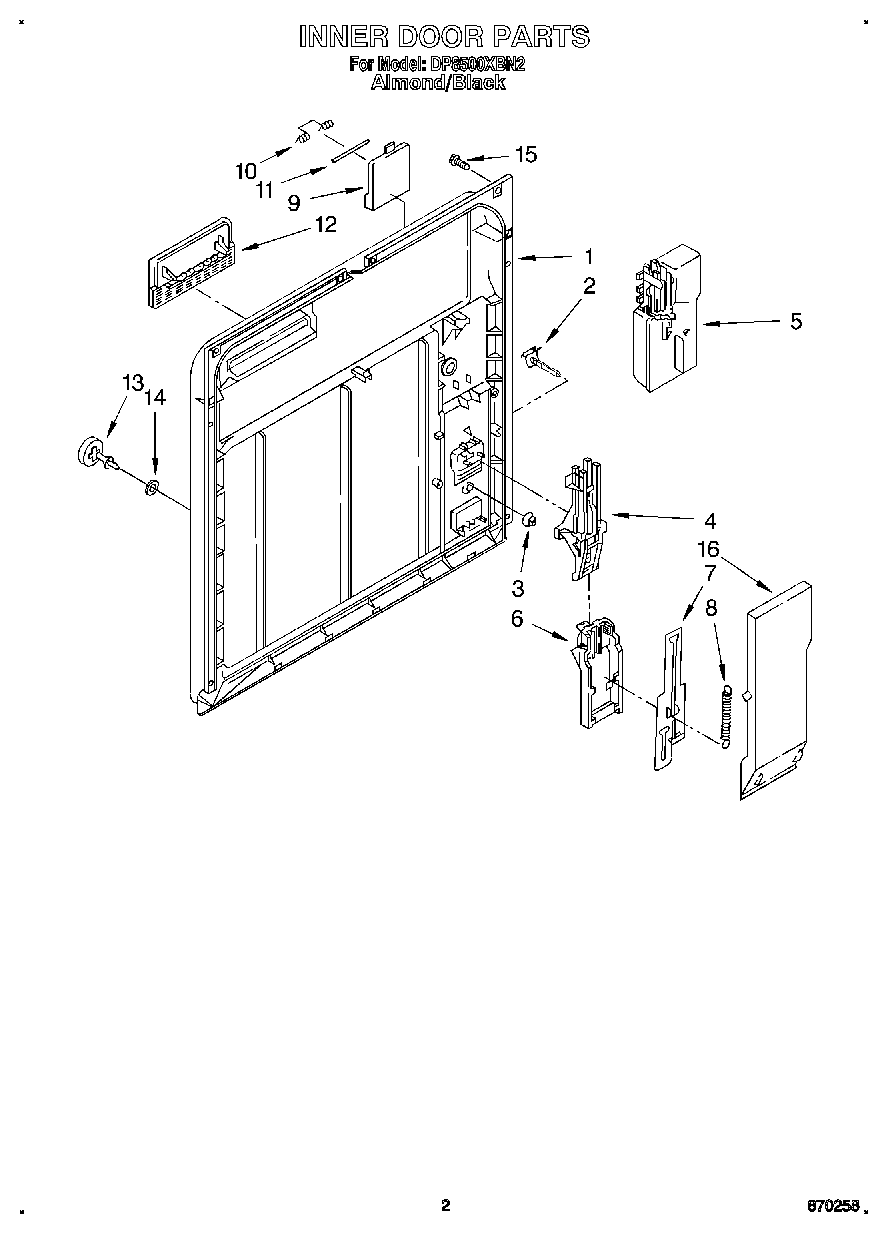

DP8500XBN2 02 – INNER DOOR

DP8500XBN2 02 – INNER DOOR

Written by

in

DP8500XBN2 02 – INNER DOOR

Products

PositionProduct
1Inner Door (Also Order)
3LATCH KIT
48193646 Whirlpool Dishwasher Lower Detergent Dispenser Actuator Kit
5WP8052027 Whirlpool Dishwasher Dispenser
6Draw Bar, (Upper Dispenser)
8WP3368999 Whirlpool Dishwasher Spring
9WP3378138 Whirlpool Cover Assembly
10WP8066018 Whirlpool Spring Assembly
11WP3372028 Whirlpool Hinge Pin
12WP3371710 Whirlpool Dishwasher Screen
14WP3378134 Whirlpool Dishwasher Cap
15WPW10348409 Whirlpool Screw
16Cover, Drip
