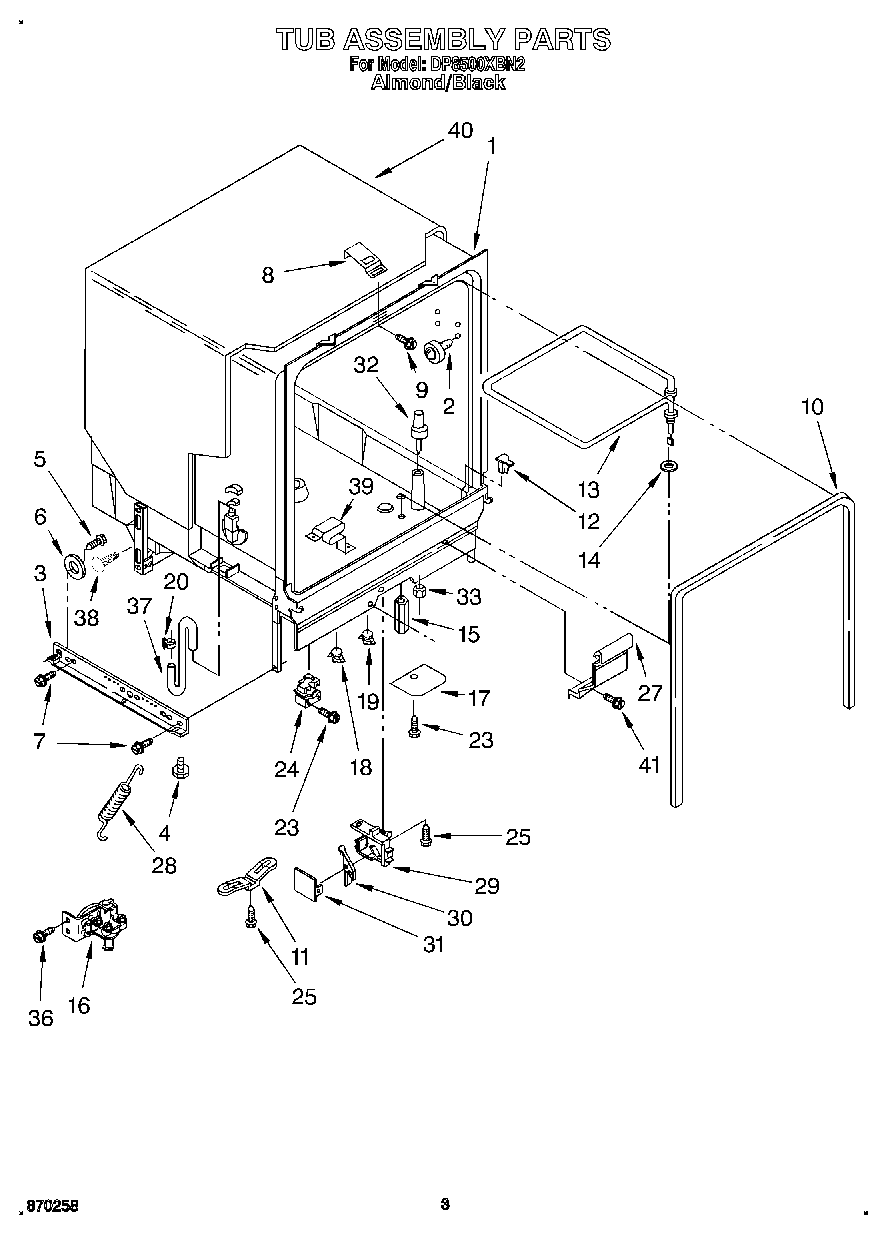

DP8500XBN2 03 – TUB ASSEMBLY
Written by
in
DP8500XBN2 03 – TUB ASSEMBLY
Products
Position
Product
1
Tub Assembly
2
Tub, Wheel Assembly (8)
3
Runner (2)
4
8193716 Whirlpool Leveling Leg
5
Screw (2)
6
WP302819 Whirlpool Dishwasher Wheel
7
SCREW
8
Plate, Latch
9
Screw, 8-32
10
WPW10509257 Whirlpool Door Gasket
11
Bracket, Thermostat
12
DEFLECTOR-DISHWASHER
13
Heater
14
WP717273 Whirlpool Dishwasher Rubber Washer
15
Nut (2) (Heater Terminal)
16
WP8274220 Whirlpool Dishwasher Inlet Valve
17
Shield, Thermostat
18
WP661566 Whirlpool High Limit Thermostat
19
Thermostat, Operating
20
WP596669 Whirlpool Hose Clamp
23
WP489128 Whirlpool Refrigerator Screw
24
Relay
25
WP304231 Whirlpool Dishwasher Screw
27
Shield, Harness
28
WP3374343 Whirlpool Dishwasher Spring
29
Housing, Float Switch
30
Switch, Float
31
Cover, Switch Housing
32
WP3376397 Whirlpool Dishwasher Float Assembly
33
Nut
36
WP3390631 Whirlpool Screw
37
Hose, Inlet
38
WP304666 Whirlpool Dishwasher Retainer
39
Support, Heater
40
Sound Shield
41
W11693756 Whirlpool Screw Assembly
←
