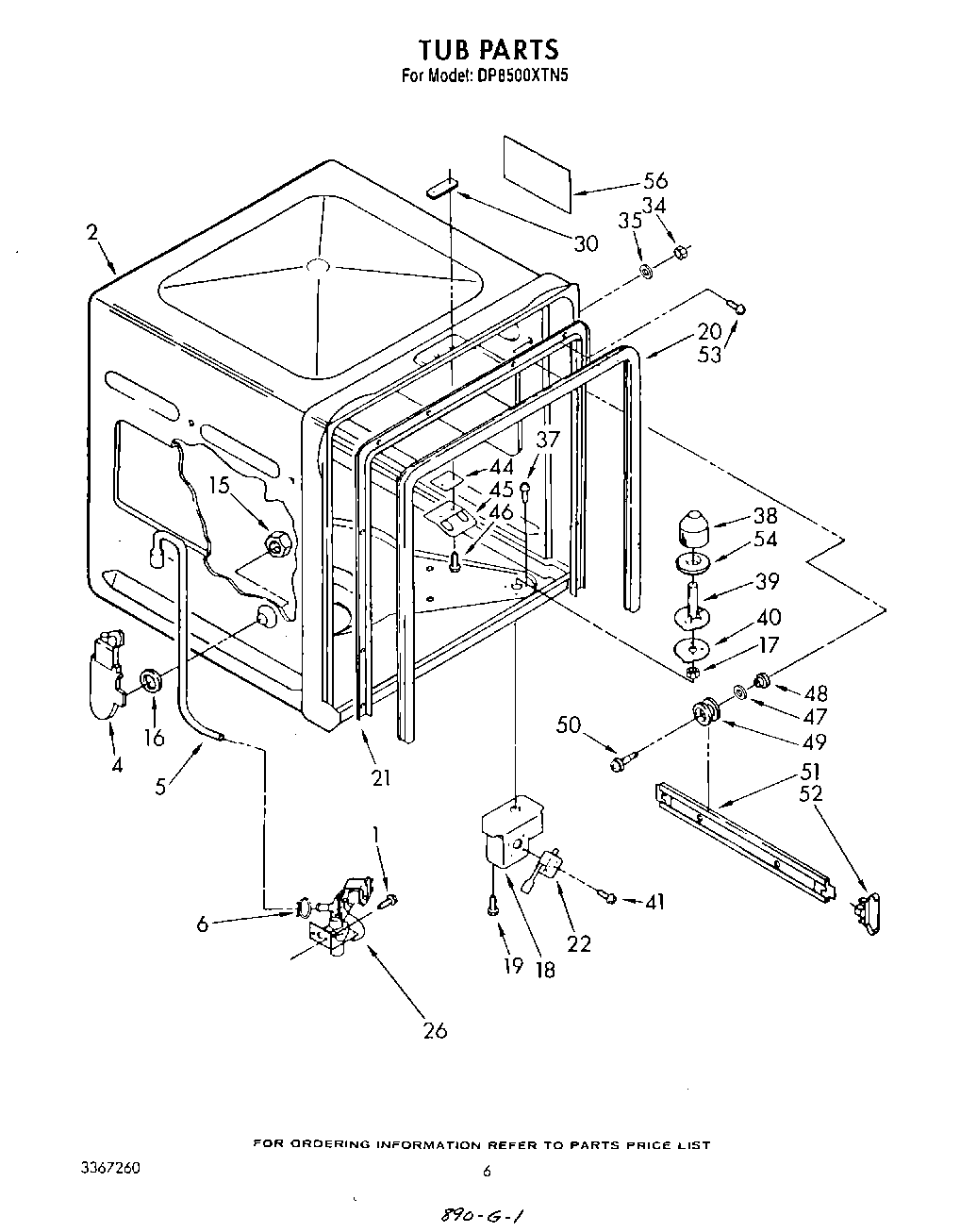

DP8500XTN5 04 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT304298
	WPL LIT3370049
	WPL LIT3367260
	WPL LIT3368835
	WPL LIT3367225
1	WP90767 Whirlpool Screw
2	tub assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Instructions, Installation (Supplement) (Location Your Water Supply)
21	Retainer, Gasket
22	Switch, Pressure
26	Valve, Water Inlet
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	screw, 10-16 x 1/2 (2)
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
56	Platinum (Uncut)
56	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
56	Kit, Epoxy Patch (White)
56	350930 Whirlpool White Spray Paint
56	Leveler (Thinner)
56	WP72107 Whirlpool Touchup
56	799344 Whirlpool Refrigerator Paint
56	72017 Whirlpool Appliance Touch-Up Paint White
56	350956 Whirlpool Spray Assembly
56	Pad, Sound
56	285006 Whirlpool Spray
56	Vinyl Touch Up (Blue)
56	Enamal, Toast (1 Qt. Uncut)
56	Paint, Spray (13 Oz.) (Platinum)
56	Toast
56	Golden Harvest (Uncut)
56	Golden Harvest
56	WPL 72112
56	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
56	Almond (Uncut)
56	350942 Whirlpool Spray Paint
56	72113 Whirlpool Touch-Up Paint
