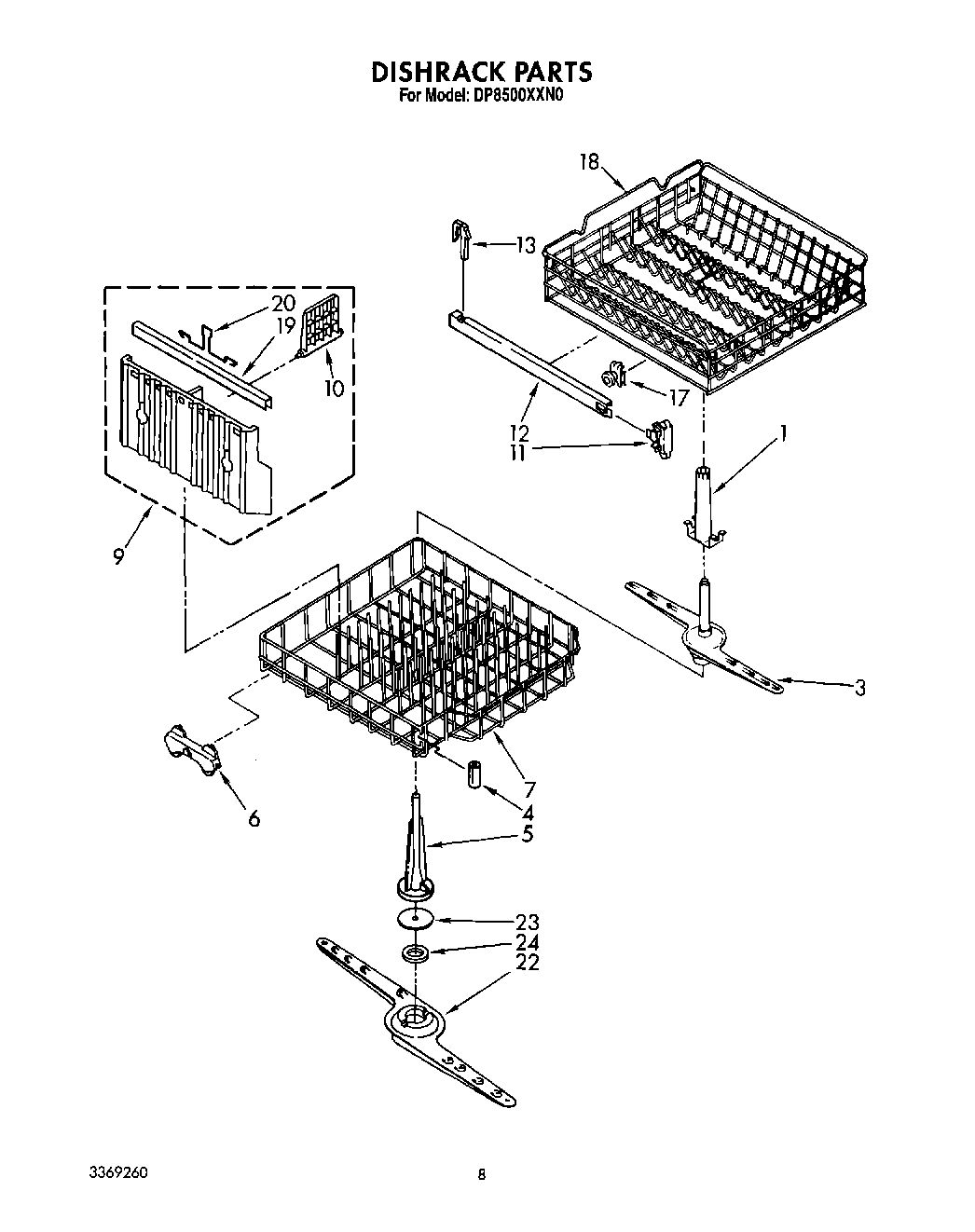

DP8500XXN0 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT677967
	Parts List
	WPL LIT3370466
	WPL LIT3371522
	WPL LIT3369104
	WPL LIT3369090
1	Support, Arm
3	WP304204 Whirlpool Dishwasher Spray Arm
4	Bumper
5	Tower
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	Stop, Track (2)
17	Wheel & Axle Assembly (4)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	Leveler (Thinner)
24	WP72107 Whirlpool Touchup
24	Almond (Uncut)
24	350942 Whirlpool Spray Paint
24	72017 Whirlpool Appliance Touch-Up Paint White
24	350956 Whirlpool Spray Assembly
24	Enamel, Black (1 Qt. Uncut)
24	WPL 72112
24	285006 Whirlpool Spray
24	WP676453 Whirlpool Dishwasher Touch-Up
24	WP676455 Whirlpool Dishwasher Touch-Up
24	676458 Whirlpool Dishwasher Tine Tip
24	WP719576 Whirlpool Dishwasher Bearing
24	675679 Whirlpool Dishwasher White Tip Tines
24	W10840471 Whirlpool Dishwasher Touch Up
24	DOOR SPRING KIT: (HEAVY DUTY)
24	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
