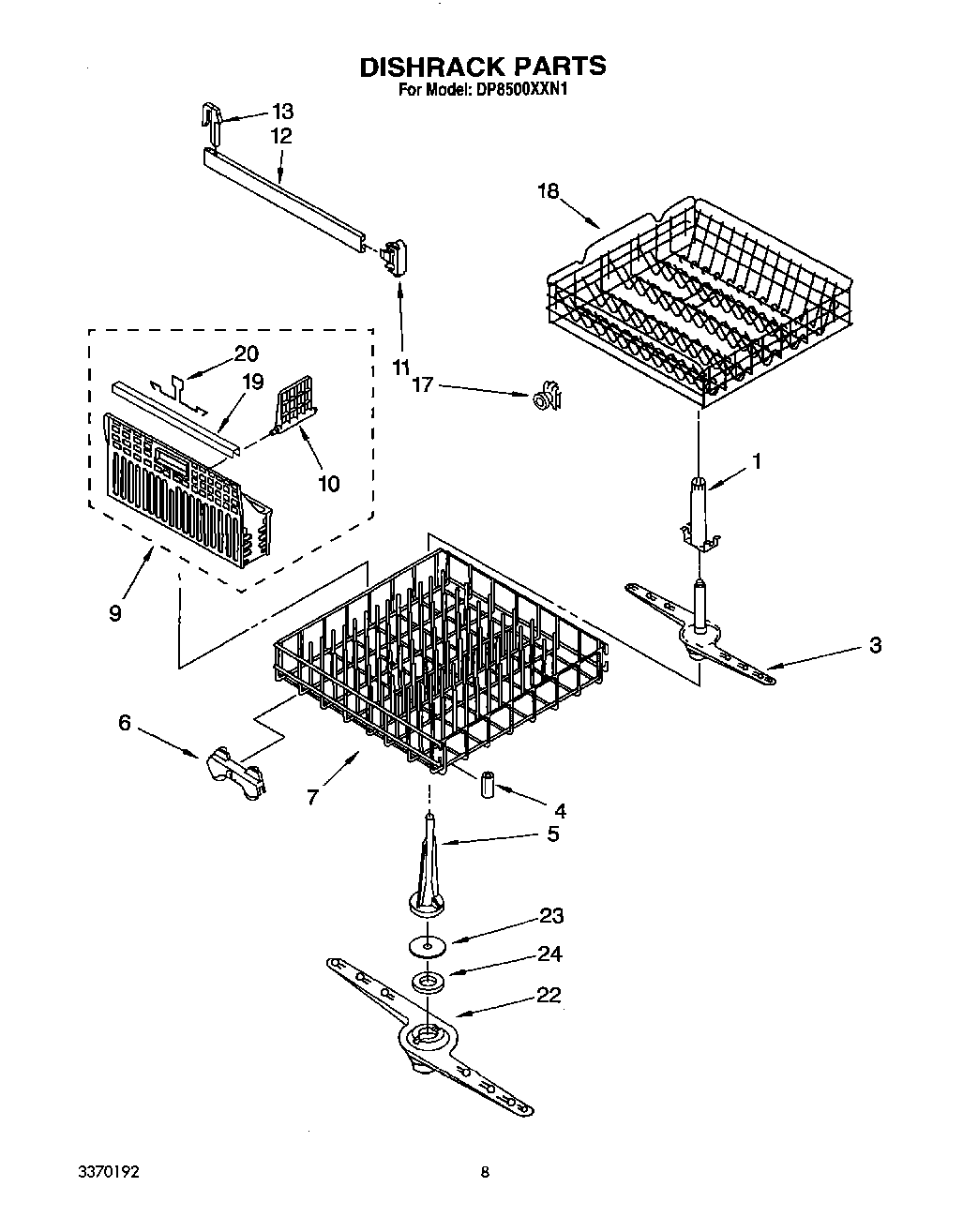

DP8500XXN1 06 – DISHRACK, LIT/OPTIONALadmin2025-04-26T10:58:04+00:00DP8500XXN1 06 – DISHRACK, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Parts List |
| W10840471 Whirlpool Dishwasher Touch Up |
| Side Panel Kit (White) |
| Side Panel Kit: (Almond) |
| Tine Tip Repair Kit (Blue - Enough For Two Complete Dishracks) |
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| WPL LIT3370466 |
| Avocado |
| Gold |
| Toast |
| Platinum |
| WPL LIT3369090 |
| WPL LIT3369104 |
| WPL LIT3371522 |
| 676458 Whirlpool Dishwasher Tine Tip |
| 675679 Whirlpool Dishwasher White Tip Tines |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| WP72107 Whirlpool Touchup |
| Leveler (Thinner) |
| Almond (Uncut) |
| WPL 72112 |
| 350942 Whirlpool Spray Paint |
| Enamel, Black (1 Qt. Uncut) |
| 350956 Whirlpool Spray Assembly |
| WP676453 Whirlpool Dishwasher Touch-Up |
| 285006 Whirlpool Spray |
| WP676455 Whirlpool Dishwasher Touch-Up |
| 1 | Support, Arm |
| 3 | WP304204 Whirlpool Dishwasher Spray Arm |
| 4 | Bumper |
| 5 | Tower |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Endcap, Front or Rear (2) |
| 12 | Track, Rack |
| 13 | Stop, Track (2) |
| 17 | Wheel & Axle Assembly (4) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
