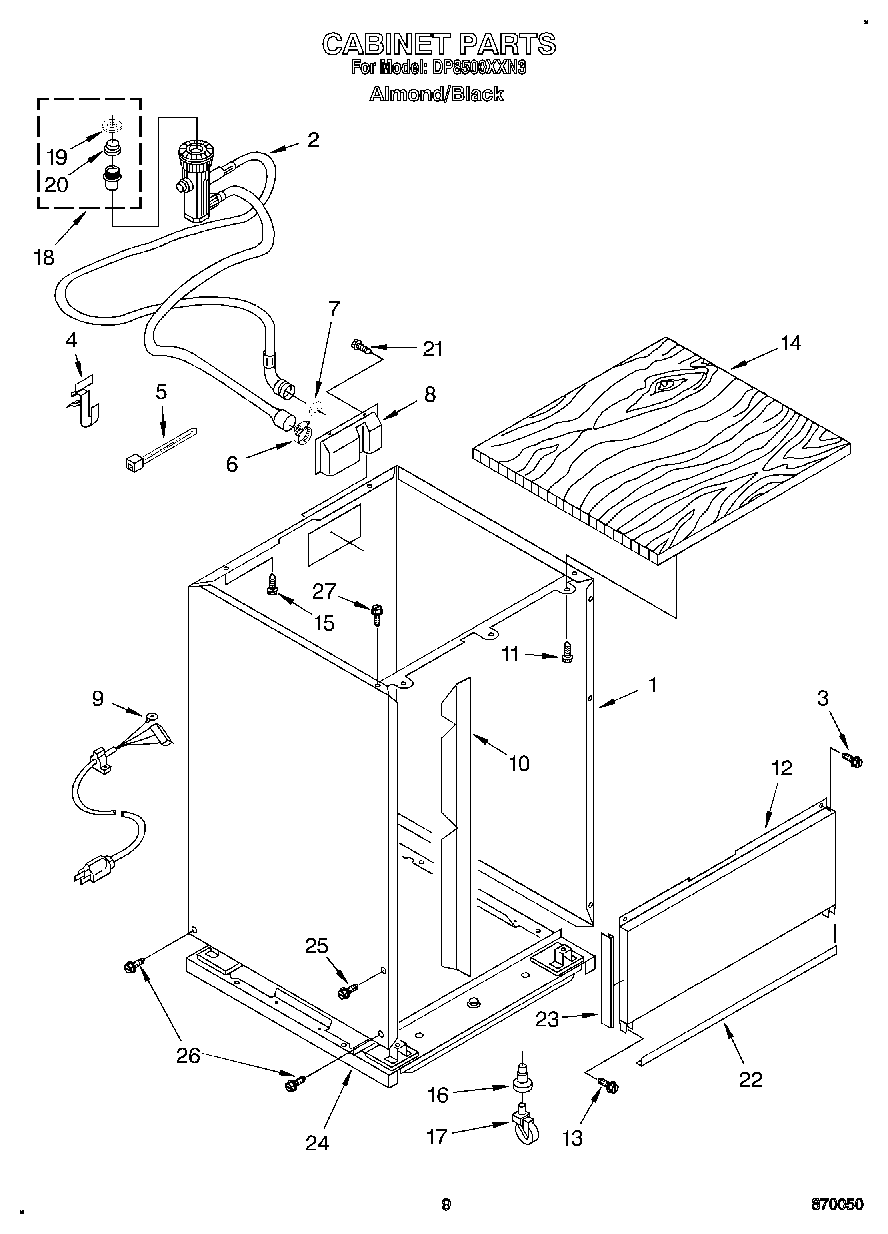

DP8500XXN3 06 – CABINET, OPTIONALadmin2025-04-26T10:57:38+00:00DP8500XXN3 06 – CABINET, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Shell Assembly (Almond) |
| 2 | WPW10273574 Whirlpool Dishwasher Filter & DRNHOS |
| 3 | WP302868 Whirlpool Screw |
| 4 | Retainer, Hose |
| 5 | WPW10339879 Whirlpool Wire Tie |
| 6 | WP3367052 Whirlpool Hose Clamp |
| 7 | WP16123 Whirlpool Washer |
| 8 | Housing, Hose |
| 9 | Cord, Power |
| 10 | Pad, Divider |
| 11 | WP3373329 Whirlpool Dishwasher Screw |
| 12 | Shroud, Caster |
| 13 | Screw |
| 14 | Panel, Top |
| 15 | SCREW |
| 16 | Socket, Caster (Alternate) |
| 17 | WP3370639 Whirlpool Caster |
| 18 | WPW10254672 Whirlpool Faucet Adapter |
| 19 | Washer |
| 20 | Bushing |
| 21 | SCREW |
| 22 | Trim, Bottom |
| 23 | Trim, Side (2) |
| 24 | Frame Assembly |
| 25 | Screw, 8-18 x 1/2 |
| 26 | Screw |
| 27 | WP300096 Whirlpool Dishwasher Air Gap |
| 27 | 302251 Whirlpool Dishwasher Screw |
| 27 | Conversion Kit (To Convert From Portable To Undercounter Installation) |
