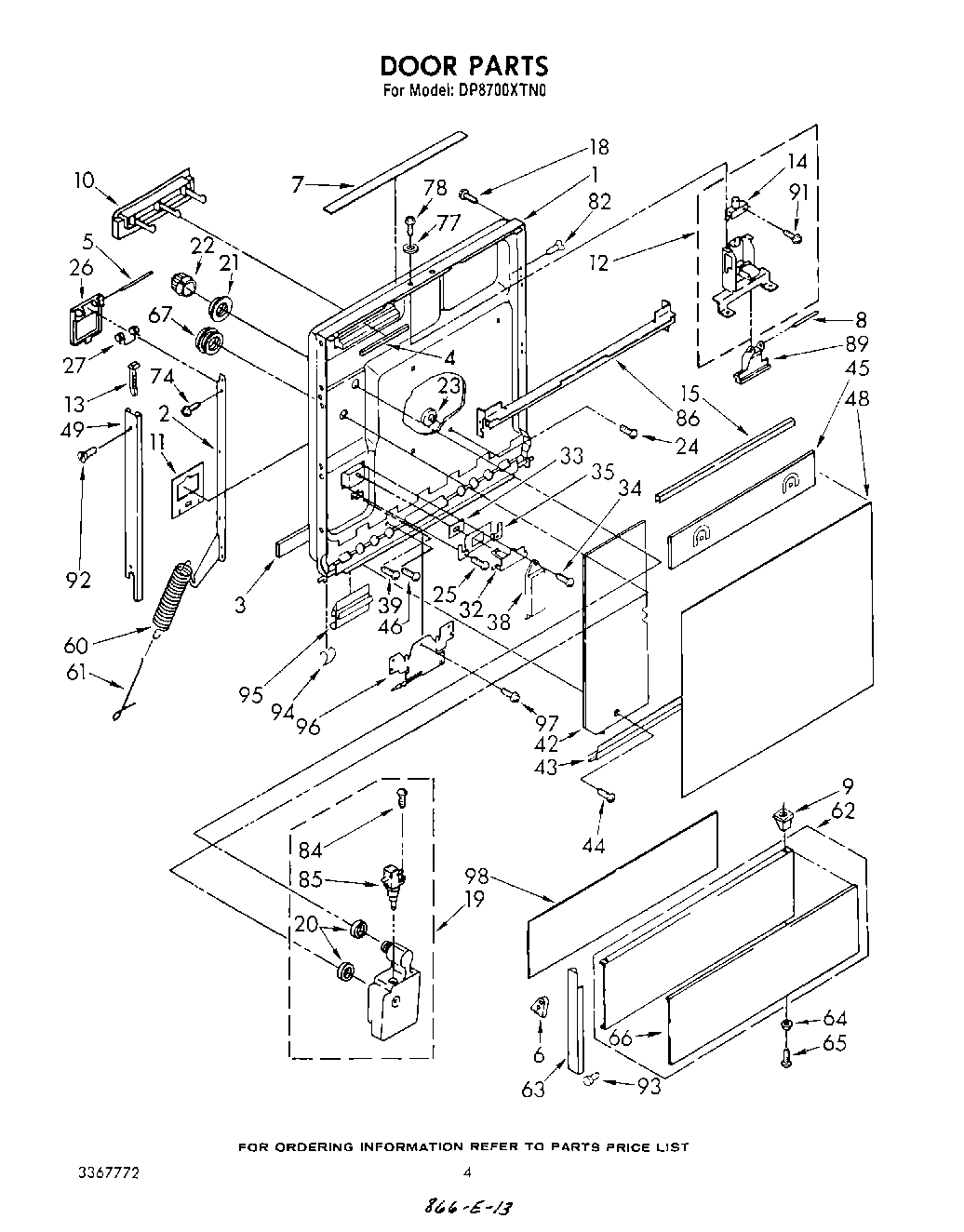

DP8700XTN0 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (R.H.)
2	Support, Door (L.H.)
3	Gasket, Door
4	Baffle
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
7	Label, User Guide
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Barrier
12	Latch Assembly
13	Clip, Trim Guard (2)
14	Switch, Interlock (Alternate)
14	Switch, Interlock
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
15	Protector, Edge
18	Screw, 8 x 1-7/8 (2)
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
23	Button, Retainer (3)
24	Screw, 8-18 x 3/8 (3)
27	WP8066018 Whirlpool Spring Assembly
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	WP304231 Whirlpool Dishwasher Screw
42	Barrier, Door
43	Edging, Panel
44	W11693756 Whirlpool Screw Assembly
45	Barrier, Console
48	Panel, Front
49	Trim, Door (R.H.)
49	Trim, Door (L.H.)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End R.H.
63	Cap, End L.H.
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
66	Overlay, Access Panel
66	Overlay, Access Panel (Brushed Aluminum (Optional))
67	Cap, Drip
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
82	WP489069 Whirlpool Compactor Screw
84	Screw, 4-20 x 3/8 (2)
85	Actuator
86	Rail, Support
89	WPL 304408
91	Screw, 6-32 x 1
92	Screw, 8 x 1/2 (4)
93	SCREW 8A
94	Clip, Wire
95	WPL 3367720
96	Shield, Harness
97	WP90767 Whirlpool Screw
98	Pad, Sound
