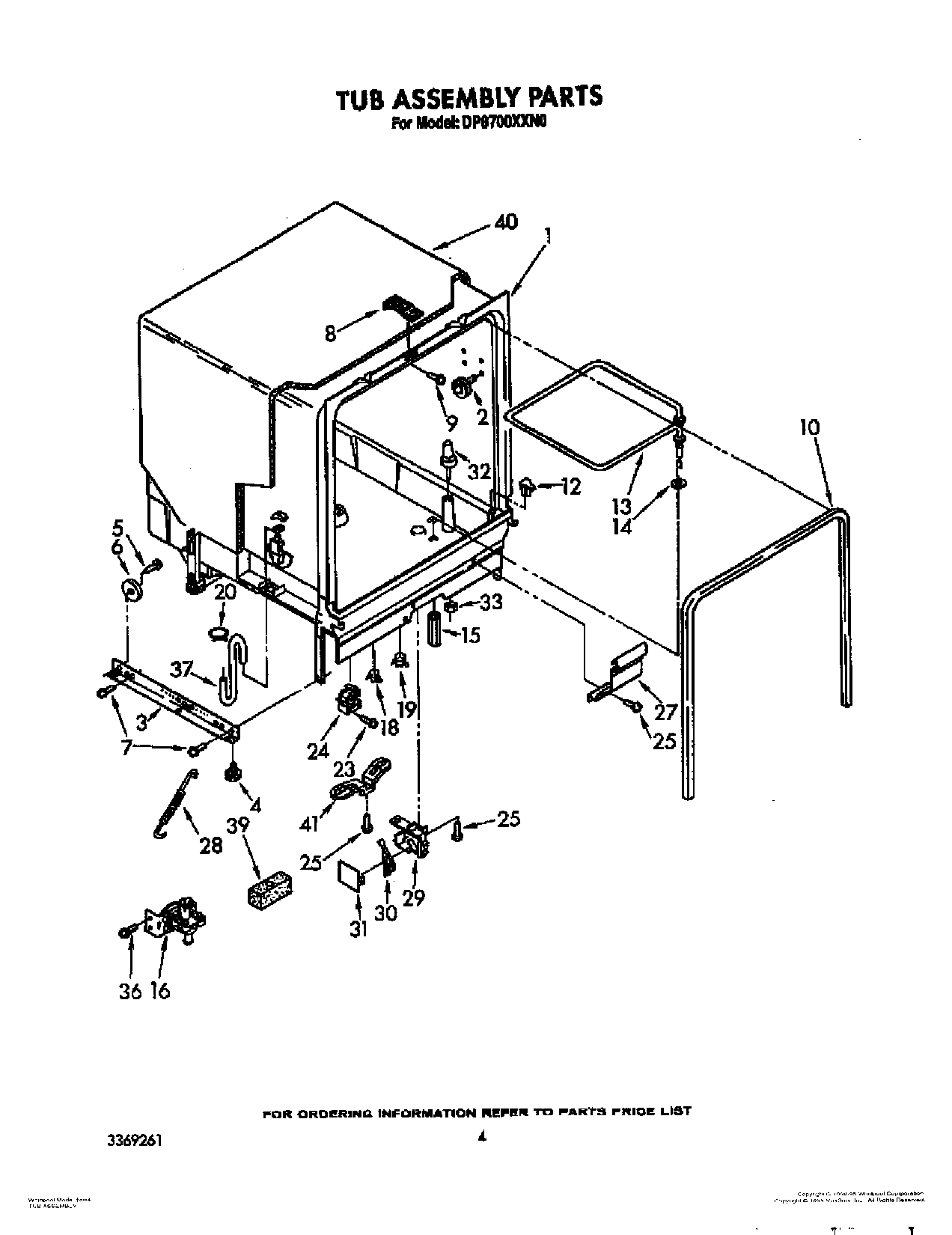

DP8700XXN0 04 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly (Not Serviceable)
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
12	DEFLECTOR-DISHWASHER
13	Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	WP8274220 Whirlpool Dishwasher Inlet Valve
18	WP661566 Whirlpool High Limit Thermostat
19	Thermostat
20	WP596669 Whirlpool Hose Clamp
23	WP489128 Whirlpool Refrigerator Screw
24	Relay
25	WP304231 Whirlpool Dishwasher Screw
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
36	WP3390631 Whirlpool Screw
37	Hose, Inlet
39	Diverter
40	W11086533 Whirlpool Dishwasher Shield
41	Bracket, Thermostat
