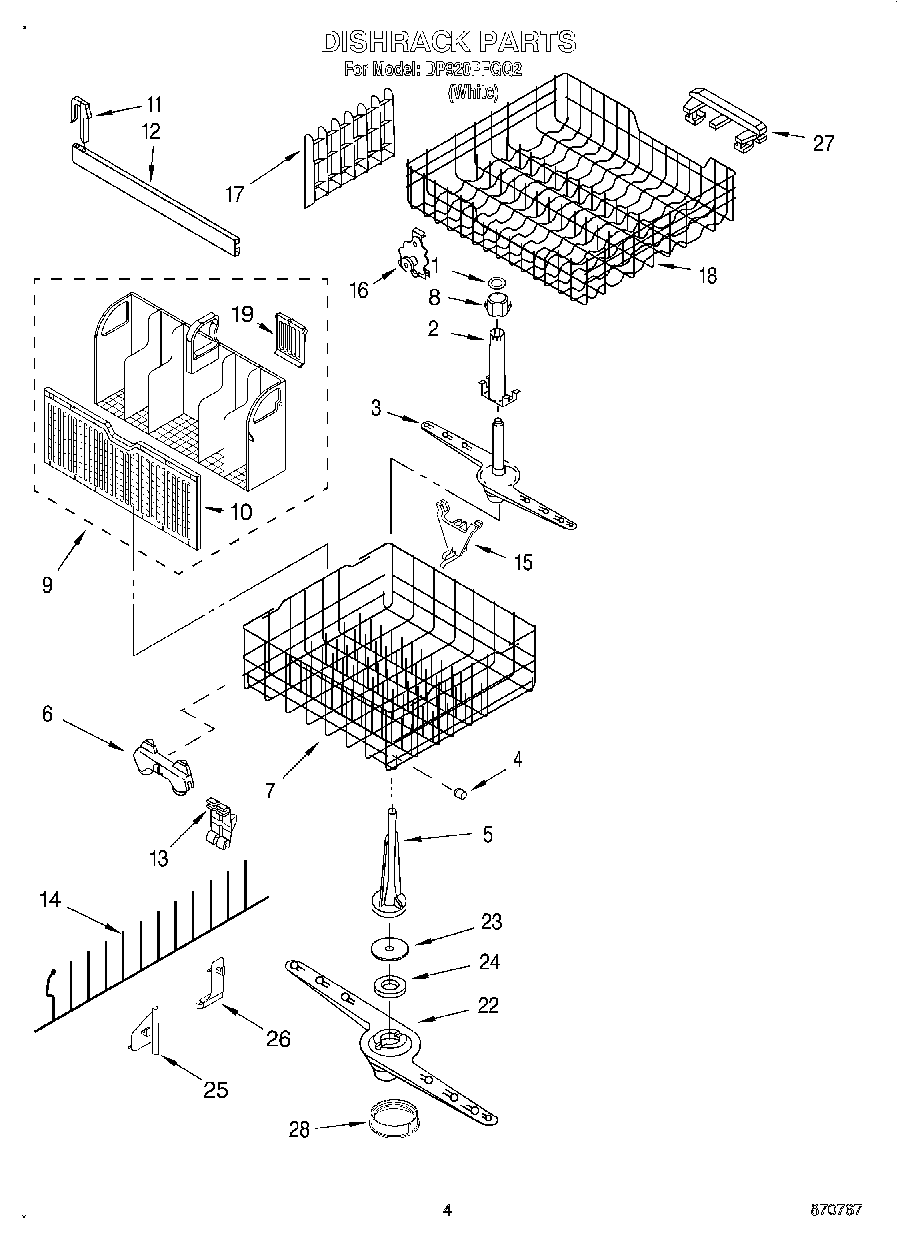

DP920PFGQ2 04 – DISHRACK

DP920PFGQ2 04 – DISHRACK

Written by

in

DP920PFGQ2 04 – DISHRACK

Products

PositionProduct
1Clip
2Support, Arm
3Spray Arm, Upper (Also Order Items 1 & 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
8Support, Lock Spray Arm
9Silverware Basket Assembly
10Door, Silverware Basket
11WP3379941 Whirlpool Dishwasher Stop
12WP3385089 Whirlpool Track
13WP3368629 Whirlpool Dishwasher Retainer
14W10728160 Whirlpool Tine Assembly
15Pivot, Folddown
16WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
17WP8268828 Whirlpool Dishwasher Shelf
18W11169039 Whirlpool Dishwasher Dish Rack
19Lid, Silverware Basket
22WP8268874 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
25Clip, Silverware Basket (Left)
26Clip, Silverware Basket (Right)
278268826 Whirlpool Dishwasher Cup Holder
28WP3376846 Whirlpool Seal
