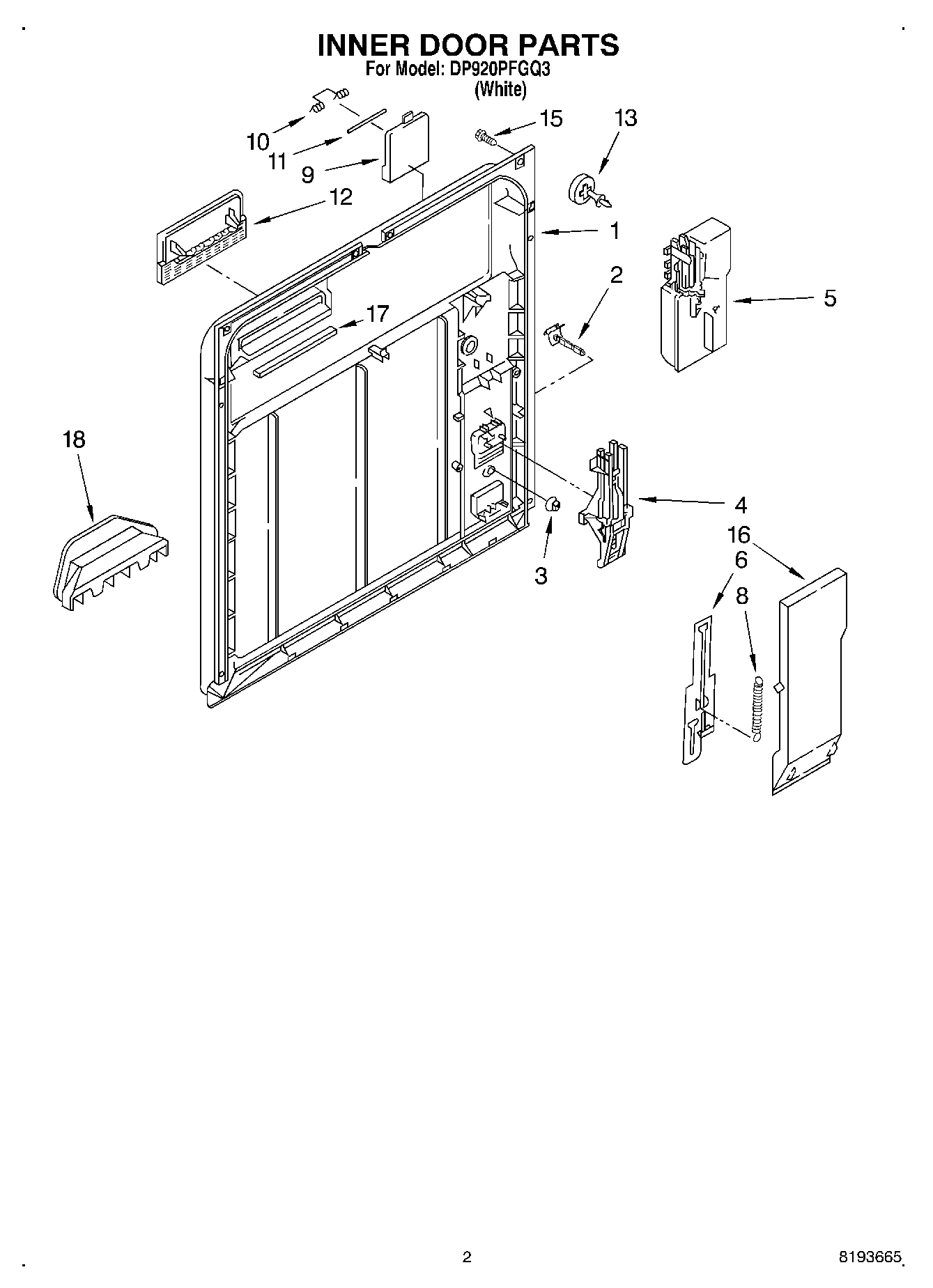

DP920PFGQ3 02 – INNER DOOR

DP920PFGQ3 02 – INNER DOOR

Written by

in

DP920PFGQ3 02 – INNER DOOR

Products

PositionProduct
1Door, Inner
3LATCH KIT
4WP3369505 Whirlpool Dishwasher Actuator
5WP8052028 Whirlpool Dishwasher Dispenser
6DRAW BAR (LOWER DISPENSER)
8WP3368999 Whirlpool Dishwasher Spring
9WP3378138 Whirlpool Cover Assembly
10WP8066018 Whirlpool Spring Assembly
11WP3372028 Whirlpool Hinge Pin
12WP3371710 Whirlpool Dishwasher Screen
13WP3378134 Whirlpool Dishwasher Cap
15WPW10348413 Whirlpool Dishwasher Screw
16Cover, Drip
17WP3379673 Whirlpool Dishwasher Seal
18WP3379674 Whirlpool Dishwasher Vent Assembly
