DP920PFGQ4 01 – FRAME AND CONSOLE, LITERATURE

DP920PFGQ4 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

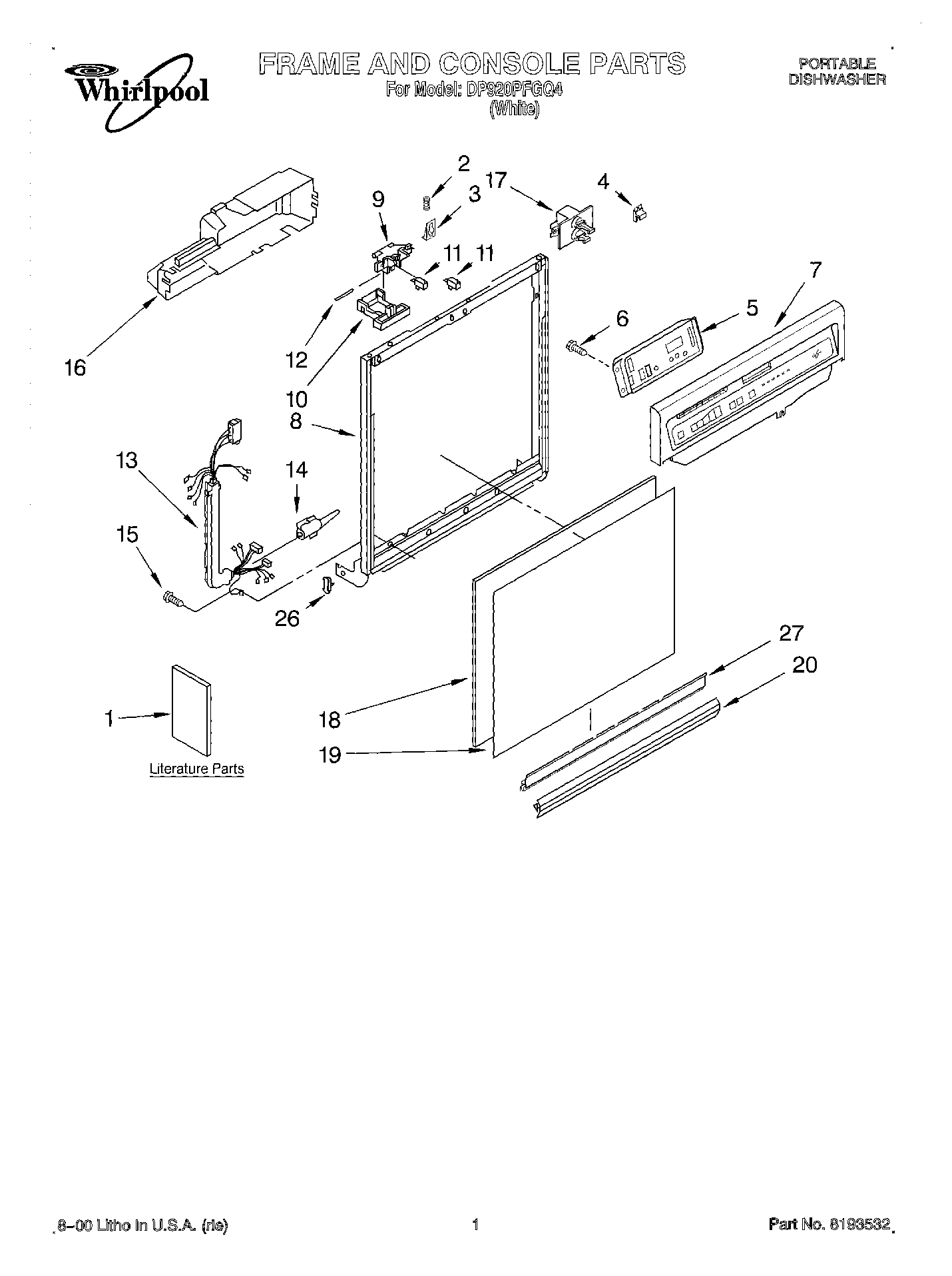

DP920PFGQ4 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Tech Sheet) (English)
1Literature Parts (Tech Sheet) (French)
1Instructions, Installation
1Instructions, Installation (Supplement) (Locating Your Water Supply)
3675782 Whirlpool Dishwasher Catch
4675813 Whirlpool Thermal Fuse Kit
5Control, Electronic
6WP304231 Whirlpool Dishwasher Screw
7Console (Includes Item 2)
8Door Frame (Includes Item 24) (White)
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
18Door, Sound Absorber
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel (White)
26WP3373234 Whirlpool Dishwasher Bearing
27WP3374716 Whirlpool Dishwasher Channel
